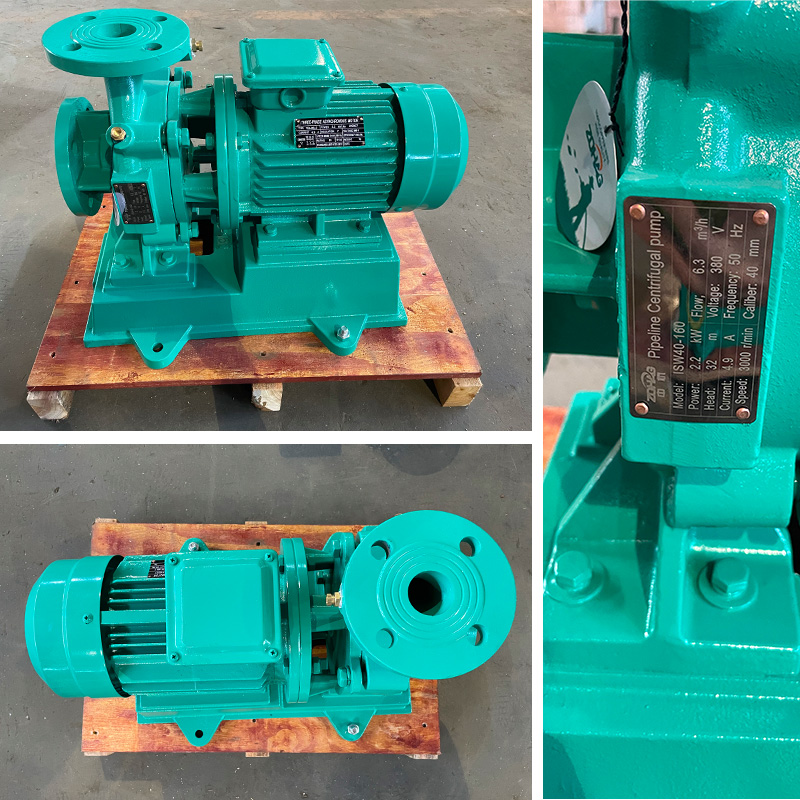

ISW IRG Centrifugal Pipeline Pump


Availability:

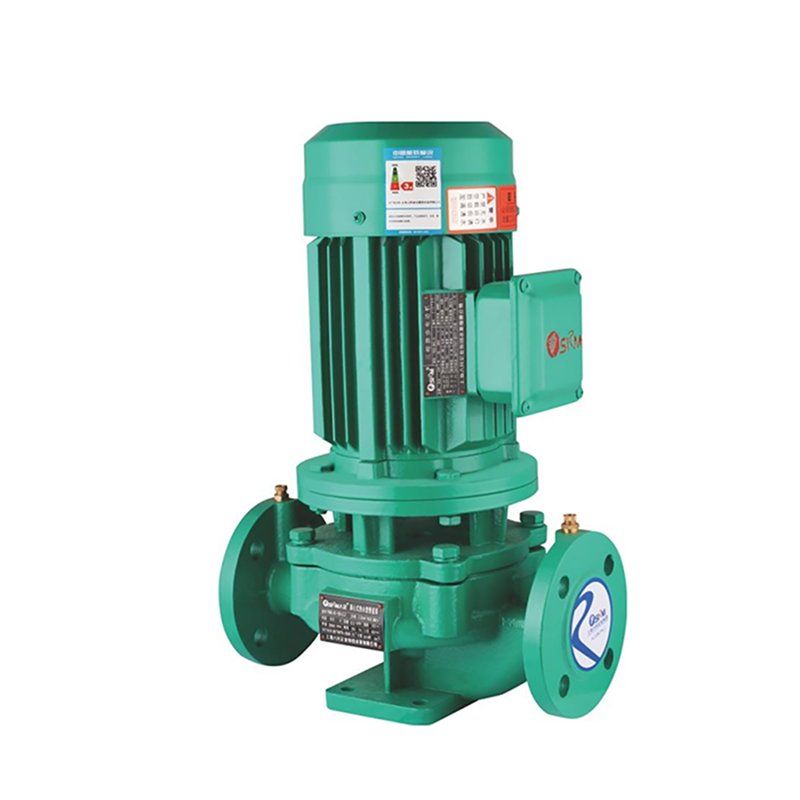

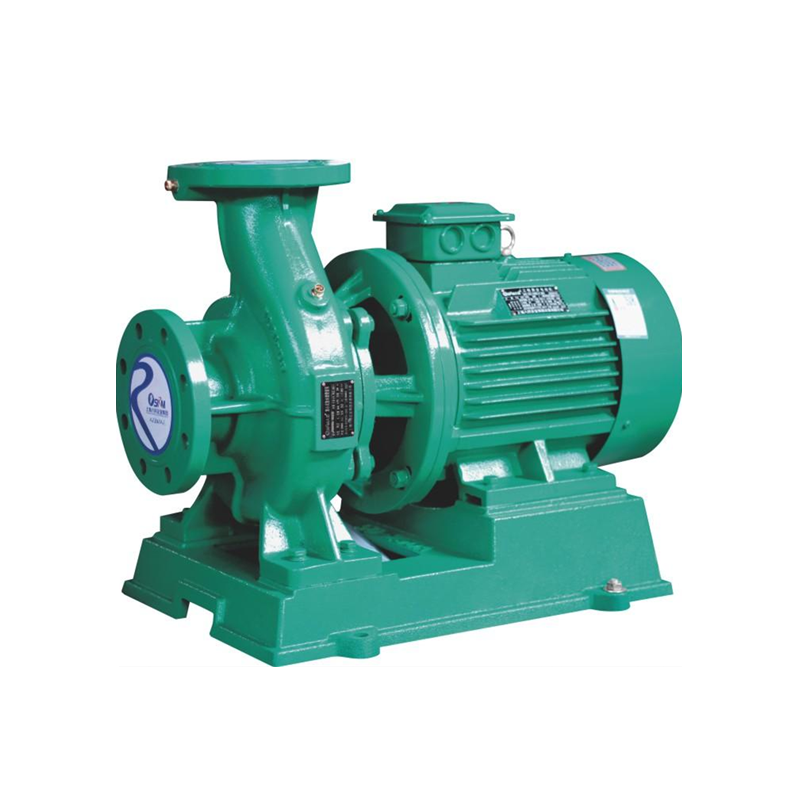

The ISW Horizontal Pipeline Centrifugal Pump and IRG Vertical Pipeline Centrifugal Pump are designed for transporting clean water and other liquids with similar physical and chemical properties. These pumps are widely used in industrial and municipal water supply and drainage, high-rise building booster water supply, garden irrigation, firefighting pressure boosting, and equipment matching.

Model:
ISW/IRG
Brand:
SRM

Product Description

FAQ

Customized versions are available to meet specific requirements, including

Hot water pumps for heating applications.

Chemical pumps for handling corrosive liquids free of solid particles.

Oil pumps for transferring oil-based liquids.

These pumps operate on three-phase power and generally feature high power output , ensuring efficient and reliable performance in various applications.

Product Advantage

The pump ensures vibration-free performance due to the absolute concentricity of the shaft and the excellent dynamic and static balance of the impeller.

Leak-Free Design

Equipped with high-quality hard alloy seals in different materials, the pump guarantees zero leakage when handling various media.

Low Noise

Supported by two low-noise bearings, the pump runs smoothly with minimal sound—only the faint hum of the motor is audible.

High Reliability

Featuring a simple yet robust structure and top-tier international components, the pump achieves significantly extended trouble-free operation.

Easy Maintenance
Replacing seals and bearings is quick and convenient, minimizing downtime.

Technical Parameters

MODEL	Flow		Head (m)	Power (kW)	Voltage (V)	Speed (r/min)
MODEL	(m³/h)	(L/S)	Head (m)	Power (kW)	Voltage (V)	Speed (r/min)
25-125	4	1.1	20	0.75	380	3000
25-160	4	1.1	32	1.5	380	3000
25-160A	3.7	1	28	1.1	380	3000
32-125	4.5	1.3	20	0.75	380	3000
32-160	4.5	1.3	32	1.5	380	3000
32-160A	4	1.1	25	1.1	380	3000
32-200	4.5	1.3	50	3	380	3000
32-200A	4	1.1	40	2.2	380	3000
40-100	6.3	1.8	12.5	0.75	380	3000
40-125	6.3	1.8	20	1.1	380	3000
40-125A	5.6	1.6	16	0.75	380	3000
40-160	6.3	1.8	32	2.2	380	3000
40-160A	5.9	1.6	28	1.5	380	3000
40-160B	5.2	1.4	24	1.1	380	3000
40-200	6.3	1.8	50	4	380	3000
40-200A	5.9	1.6	44	3	380	3000
40-200B	5.5	1.5	38	2.2	380	3000
40-250	6.3	1.8	80	7.5	380	3000
40-250A	5.9	1.6	70	5.5	380	3000
40-250B	5.5	1.5	60	4	380	3000
40-125(1)	12.5	3.5	20	1.5	380	3000
40-125(1)A	11.2	3.1	17.2	1.1	380	3000
40-160(1)	12.5	3.5	32	3	380	3000
40-160(1)A	11.7	3.3	28	2.2	380	3000
40-160(1)B	10.5	2.9	22.5	1.5	380	3000
40-200(1)	12.5	3.5	50	5.5	380	3000
40-200(1)A	11.7	3.3	40	4	380	3000
40-200(I)B	10.5	2.9	35	3	380	3000
50-100	12.5	3.5	12.5	1.1	380	3000
50-100A	11.2	3.1	10	0.75	380	3000
50-125	12.5	3.5	20	1.5	380	3000
50-125A	11.2	3.1	17.2	1.1	380	3000
50-160	12.5	3.5	32	3	380	3000
50-160A	11.7	3.3	28	2.2	380	3000
50-160B	10.5	2.9	22.5	1.5	380	3000
50-200	12.5	3.5	50	5.5	380	3000
50-200A	11.7	3.3	44.5	4	380	3000
50-200B	10.5	2.9	35	3	380	3000
50-250	12.5	3.5	80	11	380	3000
50-250A	11.7	3.3	70	7.5	380	3000
50-250B	10.8	3	60	5.5	380	3000
50-100(1)	25	6.9	12.5	1.5	380	3000
50-100(I)A	22.4	6.2	10	1.1	380	3000
50-125(1)	25	6.9	20	3	380	3000
50-125(1)A	22.4	6.2	16	2.2	380	3000
50-160(1)	25	6.9	32	4	380	3000
50-160(1)A	23.4	6.5	28	3	380	3000
50-160(1)B	21.6	6	24	2.2	380	3000

Product Uses

For water supply from wells or reservoirs to higher water storage tank.
For domestic use ,for civil and industrial applications, lift waters from under land to higher place.
For garden use and irrigation, help pump water directly from well to garden.

Installation & Usage Guide

Power Cord Options: Select a pump with different cable length based on your needs.

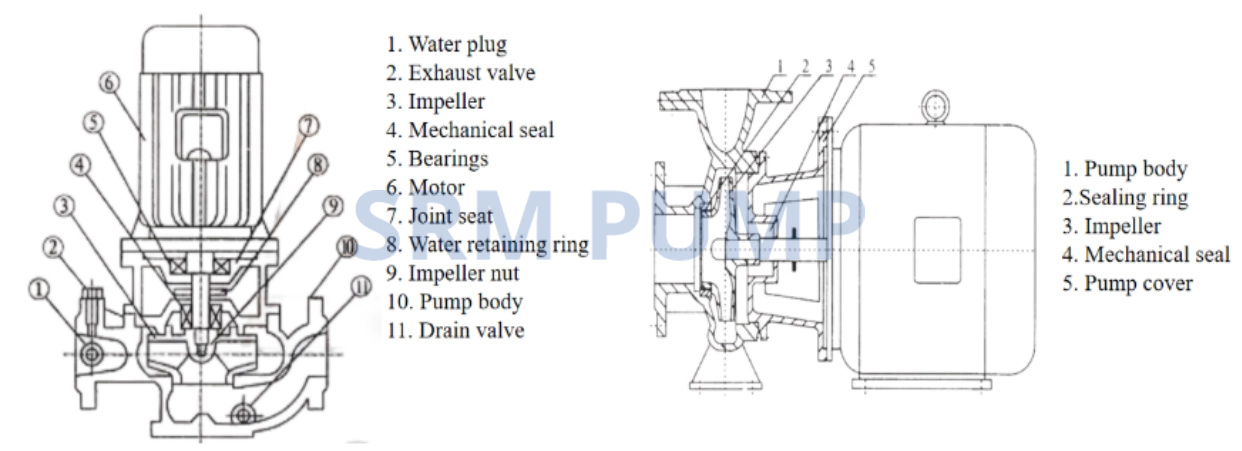

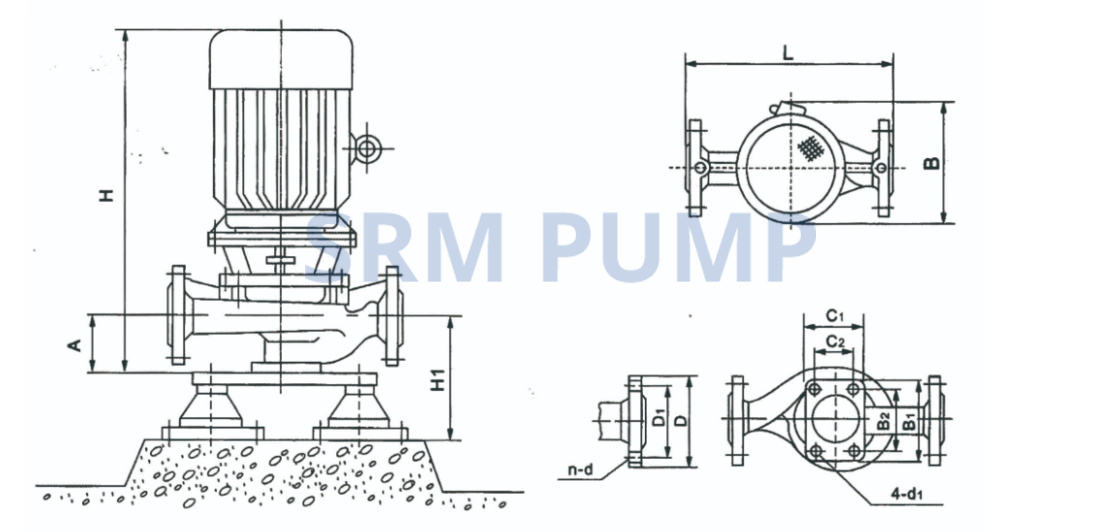

Technical drawing

Placement

FAQs

How to Select a Suitable Pipeline Centrifugal Pump?

To choose the right pump, it is essential to consider technical and economic factors such as pump unit performance, investment costs, and operational efficiency, ensuring economical, safe, and practical operation. Key considerations include:
1.Efficiency & Energy Savings
Select highefficiency, lownoise, energysaving pumps—avoid obsolete models.
2. Flow Rate & Head Requirements
Determine the pump based on design flow rate and required head (H).
Account for performance degradation due to wear by multiplying the calculated head by 1.05–1.10.
Choose a pump with a gradually declining head curve (QH curve) for stable operation, especially in parallel setups.
Ensure the operating point remains within the highefficiency range to save energy and reduce wear.
3. Water Supply Network Considerations
If the pipeline lacks regulation, use variablespeed pumps or fixedspeed pump groups.
The pump group’s maximum flow rate must meet the peak demand, verified under firefighting conditions.
4. Pump Selection for Tanks & Water Towers
Prefer one operational pump + one standby pump; avoid unnecessary parallel setups.
If multiple pumps are needed, limit models to two types with similar head ranges.
Ensure each pump operates within its highefficiency zone even in parallel.
5. VariableFrequency Drive (VFD) Pumps
The design flow must cover the maximum instantaneous demand in the water supply system.
Ensure dual power supply (backup power) for reliability.
The operating point should be within the highefficiency zone of the QH curve, not on the extended section.
The least favorable operating point should be at the right endpoint of the highefficiency zone (maximum flow, lowest feasible head).
The speed adjustment range should stay within 25%–100% of pump capacity, optimizing efficiency.
Automatic water level control is essential.
6. Backup Pump Requirements
Pressurized water supply systems must include a standby pump with greater capacity than the largest operational pump.
Pumps should autoswitch for alternating operation.
7. Motor & Power Supply Compatibility
All motors must have the same voltage rating.
The power supply system must comply with national grid standards.
By following these guidelines, you can ensure optimal performance, energy efficiency, and longterm reliability of your pipeline centrifugal pump system.
How to Purchase SRM Pumps?

Purchasing SRM pumps is simple:
Contact Us – Visit our website and reach out via:
Email Phone Social Media DM
(A dedicated representative will assist you promptly.)
Can I Use My Own Logo?

Custom Branding Option – We support OEM/ODM services and can produce pumps with your logo, provided you:
Own the trademark OR
Have authorization from the trademark owner.
