SRM 400 Lifting Station


Availability:

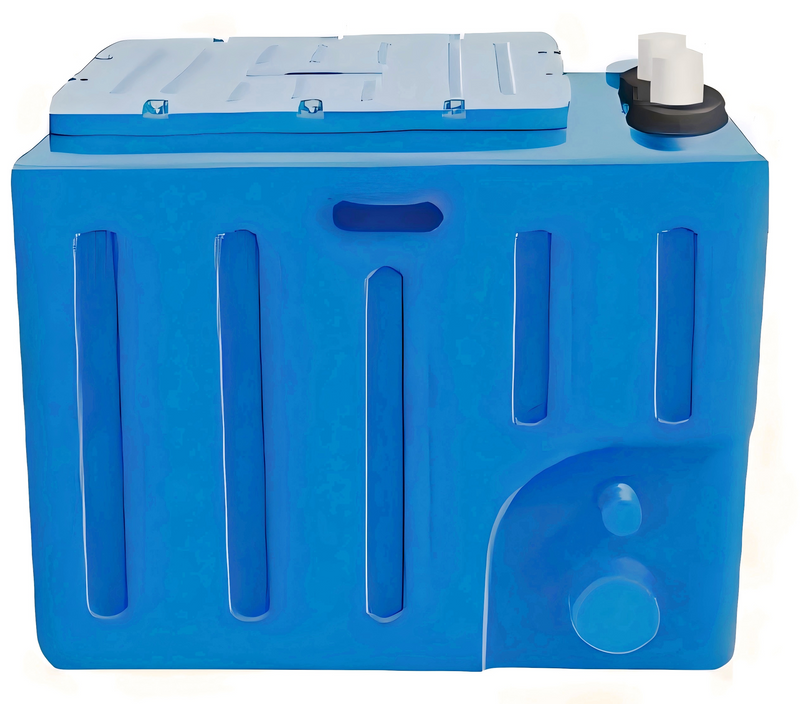

SRM400L series sewage lifting equipment is suitable for collecting sewage generated by toilets,basins,showers,sewage basins,bathtubs,washing machines,etc.that cannot be discharged by gravity and pumping it to the main sewage pipe or outdoor sewage wells.The SRM400L series box body is about 400L corrosion-resistant PE collection bucket,with multiple pre-inlet outlets,which can be installed in a smaller size foundation pit.

Model:
SRM 400
Brand:
SRM

Product Description

Key Figures

Integrated configuration, easy to install, transport eddy current non-blocking impeller

The equipment is small in size, easy to install, corrosion-resistant PE material

Air pressure and liquid level start and stop device, at the same time equipped with independent high-level alarm, forced start of liquid level, dual insurance

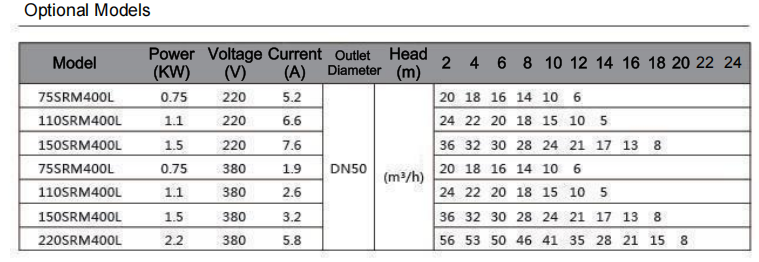

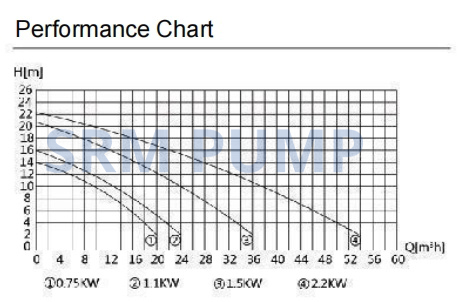

The equipment has a large flow rate of 56 m3/H and a large head of 20 meters.

Performance Parameters

Two built-in grinder pumps

Corrosion-resistant PE tank

Fully sealed design,no odor emission

Pump with coupling connection for easy maintenance

Multiple inlet ports for convenient piping

Built-in stainless steel check valve

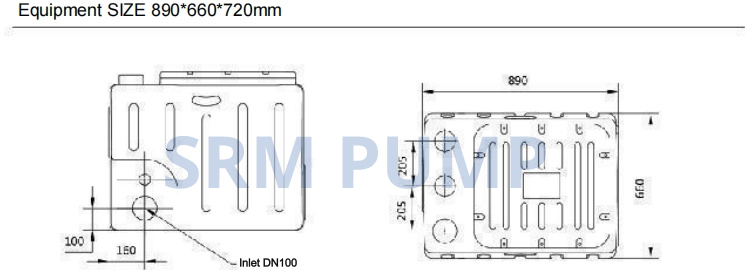

Compact size for easy installation

Includes dedicated full LCD control box

Technical Parameters

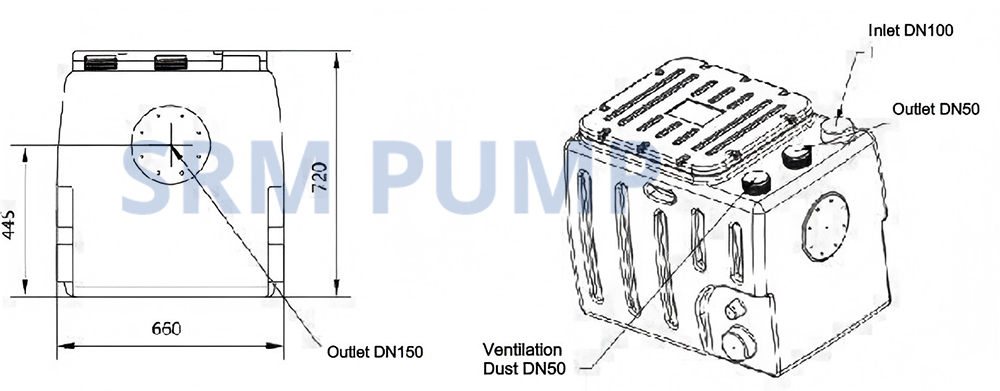

Model	Tank Volume(L)	Inlet	Outlet	Ventilation Duct	Weight(kg)
75SRM400L	360	DN100	DN50	DN50	85
110SRM400L	360	DN100	DN50	DN50	87
150SRM400L	360	DN100	DN50	DN50	100
220SRM400L	360	DN100	DN50	DN50	105

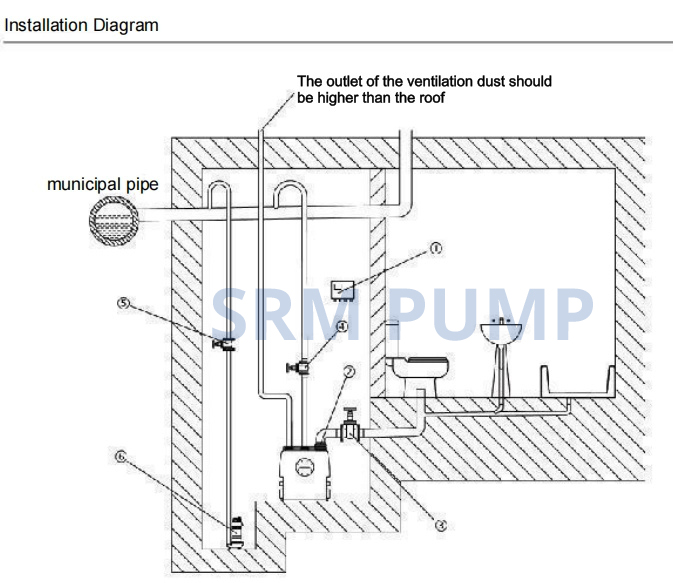

Accessories List
NO.	Description	Size	QTY	Note
1	Controller	NK-2	1	Standard
2	Water inlet soft connector	DN100	1	Standard
3	Inlet stop valve	DN100	1	Optional
4	Outlet stop valve	DN50	1	Optional
5	Assisrant pump stop valve	DN40	1	Optional
6	Assisrant pump	/	1	Optional

Typical Applications

Waste water Lifting Station is for occasions where pipeline wastewater and toilet sewage are lower than the liquid level of the sewer. Srm25 is with large volume, mainly for business/civil use such as large villas, bungalows, basements, multiple toilets, clubs, hotels, parking lots, KTV, etc

How to choose the model of lifting station？

According to the usage frequency and the quantity of the equipments connected to station, Below as a reference:

Application Scenario	Recommended Capacity	Model Example
Single bathroom	25-50L	SRM25
Kitchen + laundry room	50-100L	SRM100
Commercial premises (3-5 fixtures)	100-200L	SRM200
