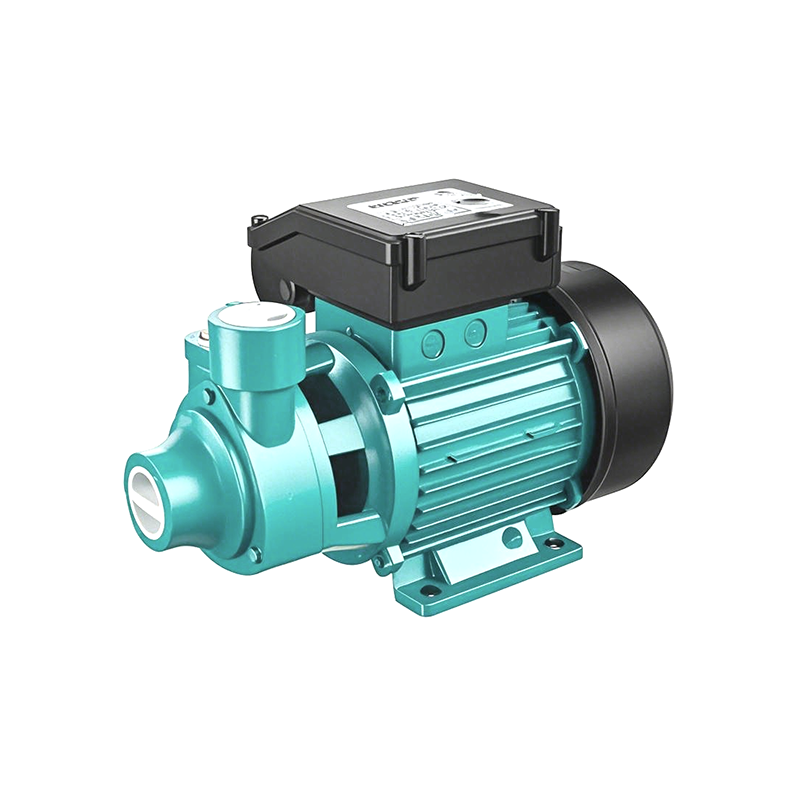

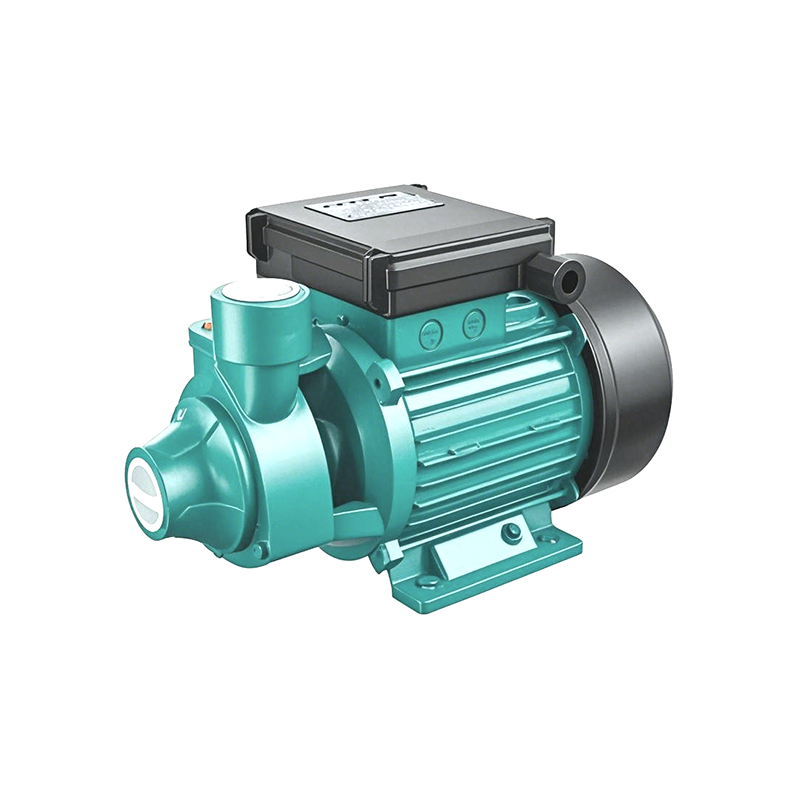

VPM Series Peripheral Pump


Availability:

The VPM Series centrifugal pump is a self-priming centrifugal pump
featuring compact structure, easy operation, smooth performance, low
maintenance, high efficiency, long service life, and strong self-priming
capability. Different liquid types can be handled by selecting
appropriate material-compatible pump models.

Model:
VPM
Brand:
SRM

Product Description

FAQ

Key Features

High Performance - Powerful motor delivers exceptional flow rate and head pressure
Wide Compatibility - Standardized flange connections adapt to most international piping systems
Three-Phase Operation - 380V/415V models available for industrial-grade applications
Global Market Adaptation - Meets technical standards for most international markets
Proven Reliability - Mature pump design with optimized hydraulic performance

Product Advantage

This water pump features a simple and user-friendly design, ensuring easy installation, operation, and low-maintenance upkeep. In addition to the one-year manufacturer’s warranty, customers can perform basic maintenance on non-core components themselves.

Efficient Operation: Precision-engineered impeller minimizes energy consumption
Durable Construction: Premium cast iron ensures long service life
Low Maintenance: Standardized mechanical seal design simplifies upkeep

Technical Parameters

Power:

Two-pole induction motor(n=2850 r.p.m)

Insulation Class B

Protection IP44

Continuous service S1

Thermal protector

Single-phase 220V/50Hz or 60Hz

Component

Pump body: Cast iron,with or without brass/304SS

Pump support: Cast iron,with or without brass/304SS

Motor housing: Aluminum

Impeller:Brass

Motor shaft: Carbon steel or 304SS

Mechanical seal:Ceramic or Graphite

Performance Chart At N=2850rpm

Flow Rate

NO.	MODEL	POWER		Q(m³/h)	0	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4	2.7	3
NO.	MODEL	kW	HP	Q(I/min)	0	5	10	15	20	25	30	35	40	45	50
A	VPm45	0.37	0.5	H	35	30	25	20	15	10.5	6.5	3
B	VPm80	0.75	1	H	65	59	52	45	38	31	25	19	14	10	7

Product Uses

For water supply from wells or reservoirs to higher water storage tank.

For domestic use ,for civil and industrial applications, lift waters from under land to higher place.

For garden use and irrigation, help pump water directly from well to garden.

Installation & Usage Guide

Power Cord Options: Select a pump with different cable length based on your needs.
Placement: Install the pump on a flat, stable surface.
Operation: Simply connect to a power source to start using it.
Important Note: Avoid prolonged use under overheating conditions to extend the lifespan of the pump’s core components.

FAQs

How to Choose a Water Pump?

Our website categorizes pumps based on application scenarios, such as household use, agricultural irrigation, or industrial applications, allowing you to easily find the right pump for your needs.
You can further refine your selection by liquid type (e.g., clean water or wastewater) before browsing product pages to compare technical specifications, including lift height and flow rate, ensuring the pump meets your requirements.
For professional users, pumps are also classified by type (e.g., centrifugal, submersible, etc.), enabling more precise selection based on technical needs.
Can I Use My Own Logo?

Custom Branding Option – We support OEM/ODM services and can produce pumps with your logo, provided you:
Own the trademark OR
Have authorization from the trademark owner.
