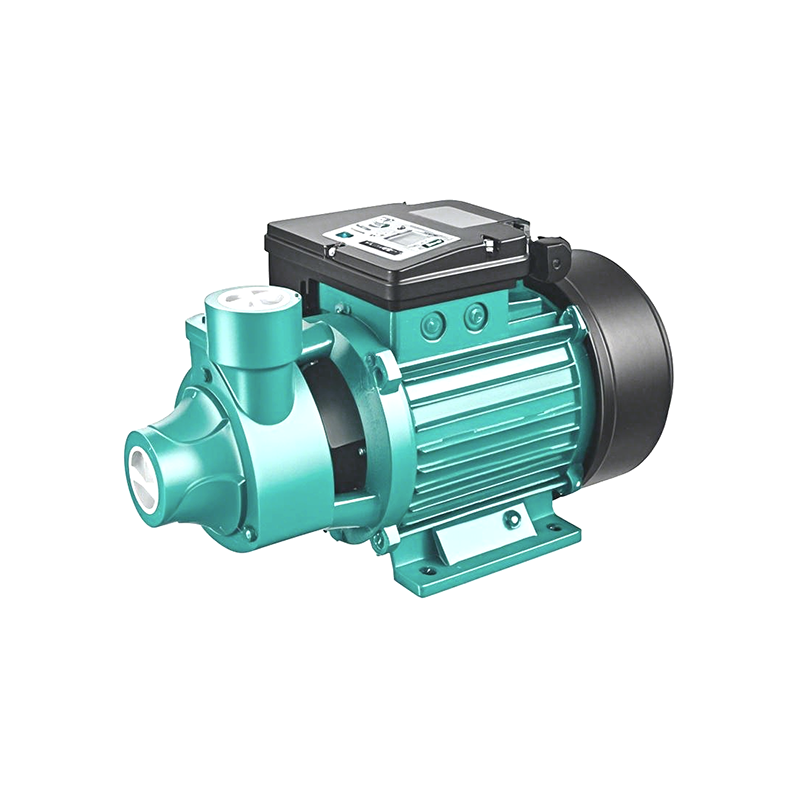

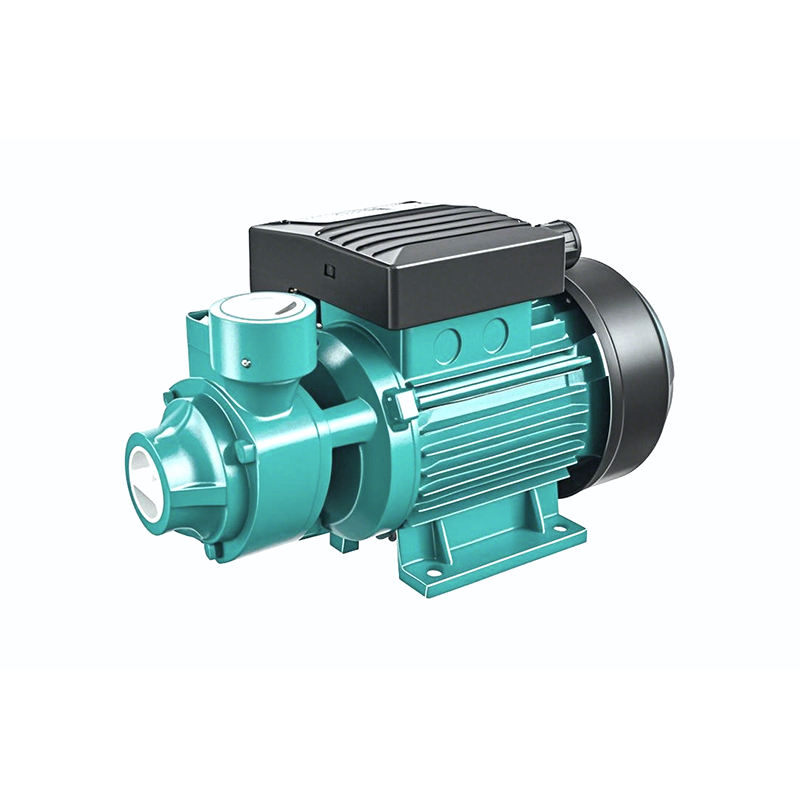

IDB Series Peripheral Pump


Availability:

IDB peripheral series surface pumps are designed for easy operation and hassle-free installation, primarily for ground-mounted use. It is ideal for daily water-lifting applications, such as drawing water from a well and delivering it to an overhead storage tank or supplying well water for garden irrigation and sprinkling.
Note: This pump is suitable for clean water only. Avoid using it with water containing sticky or viscous substances, as they may damage the pump.

Model:
IDB
Brand:
SRM or Customized

Product Description

FAQ

This water pump features a simple and user-friendly design, ensuring easy installation, operation, and low-maintenance upkeep. In addition to the one-year manufacturer’s warranty, customers can perform basic maintenance on non-core components themselves.

With moderate flow rate and high lift, it is one of the most versatile and reliable ground-mounted water pumps for household use.

Power

Two-pole induction motor(n=2850 r.p.m)

Insulation Class B

Protection IP44

Continuous service S1

Thermal protector

Single-phase 220V/50Hz or 60Hz

Component

Pump body: Cast iron,with or without brass/304SS

Pump support: Cast iron,with or without brass/304SS

Motor housing: Aluminum

Impeller: Brass

Motor shaft: Carbon steel or 304SS

Mechanical seal: Graphite

Performance Chart At N=2850rpm

NO	MODEL	POWER		Q(m³/h)	0	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4	2.7	3
NO	MODEL	kW	HP	Q(I/min)	0	5	10	15	20	25	30	35	40	45	50
A	IDB35	0.37	0.5	H	35	30	25	20	15	10.5	6.5	3
B	IDB40	0.55	0.75		55	49	43	37	30	23	17	12	8	5
C	IDB50	0.75	1		65	59	52	45	38	31	25	19	14	10	7

Product Uses

1. For water supply from wells or reservoirs to higher water storage tank.

2. For domestic use ,for civil and industrial applications, lift waters from under land to higher place.

3. For garden use and irrigation, help pump water directly from well to garden.

Installation & Usage Guide

Power Cord Options: Select a pump with different cable length based on your needs.
Placement: Install the pump on a flat, stable surface.
Operation: Simply connect to a power source to start using it.
Important Note: Avoid prolonged use under overheating conditions to extend the lifespan of the pump’s core components.
