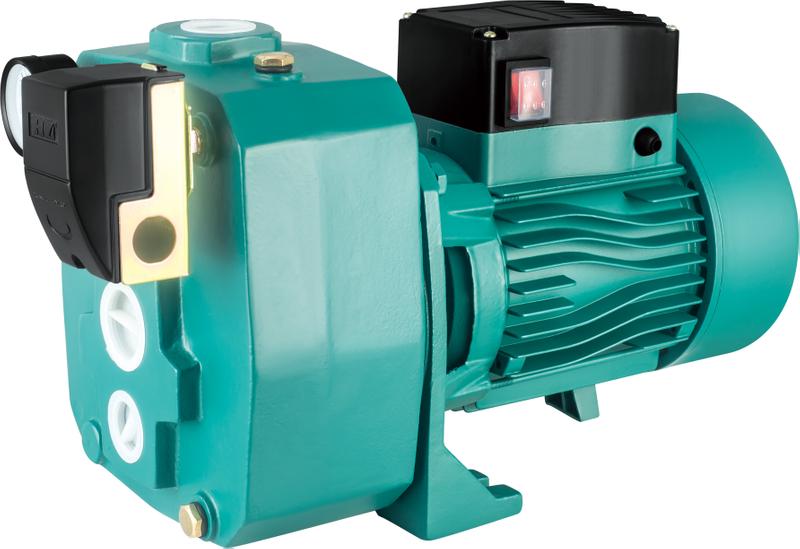

AUD
SRM
Key Advantages
Rapid self-priming—efficient air-liquid handling.
Versatile material options—suitable for diverse fluids.
Energy-saving & durable—optimized hydraulic design minimizes wear.
Technical Parameters
Maximum fluid temperature up to +40℃.
Maximum sand content:0.25%
Motor and Pump: Rewindable motor
Three-phase:380V-415V/50Hz
Single-phase:220V-240V/50Hz
Options on request： Special mechanical seal
Other voltages or frequency 60 Hz

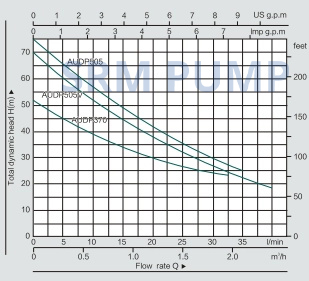

Performance Charter

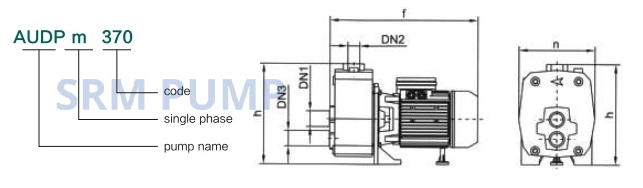

Model Optional
MODEL | DN1 | DN2 | DN3 | DIMENSIONS(mm) | ||
n | h | f | ||||
AUDPm370 | 14" | 1" | 1" | 180 | 201 | 402 |
AUDPm505 | 14" | 1" | 1" | 210 | 260 | 420 |
AUDPm505-1 | 12" | 1" | 1" | 210 | 260 | 440 |
Performance Data 50Hz | |||||||||||||
MODEL | P₂ | DELIVERY n≈2850 r/min | |||||||||||
1~ | 3~ | KW | HP | m³/h | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 |
0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | |||||
AUDPm370 | 一 | 0.75 | 1 | H(m) | 52 | 45 | 40 | 36 | 32 | 29 | 26 | 一 | 一 |
AUDPm505 | 一 | 1.1 | 1.5 | 70 | 62 | 56 | 48 | 40 | 35 | 30 | 25 | 一 | |
AUDPm505-1 | AUDPm505-1 | 1.5 | 2.0 | 75 | 65 | 58 | 50 | 42 | 38 | 30 | 26 | 18 | |
Product Uses
The AUD Series centrifugal pump is widely used in:
Domestic & Residential Applications
Hotel centralized water supply
SPA and hydrotherapy facilities
Industrial & Agricultural Applications
Factory domestic water pipeline boosting
Water circulation systems
Deep well water extraction
This versatile pump provides efficient and reliable solutions for diverse water supply and pressure boosting requirements across multiple sectors.
Safety and Operating Instructions
Electrical Safety
To prevent electric shock, install a leakage circuit breaker or ground fault protector and ensure proper grounding.
Voltage Requirements
The operating voltage must be within +5% to -12% of the rated voltage; otherwise, the motor may overheat or burn out.
If the power source is far from the pump, use thicker power cables to prevent voltage drop and operational failure.
Startup Check
Turn on the power and let the pump run idle for about 2 minutes to verify proper startup, operation, and correct rotation direction.
Installation Guidelines
Secure the pump firmly and connect the inlet to the foot valve using steel pipes or reinforced hose (avoid overly soft tubing to prevent collapse).
The foot valve must be vertical and positioned at least 30 cm above the bottom to avoid sucking in silt.
For first-time operation, fill the storage tank completely. If the pump fails to discharge water within seconds, repeat priming. Later uses do not need refilling.
