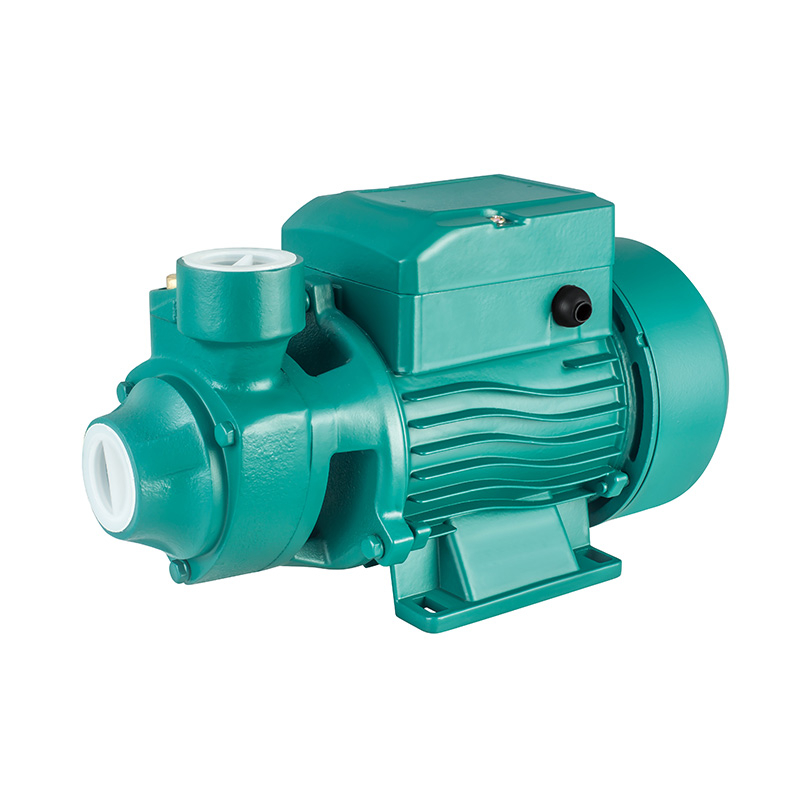

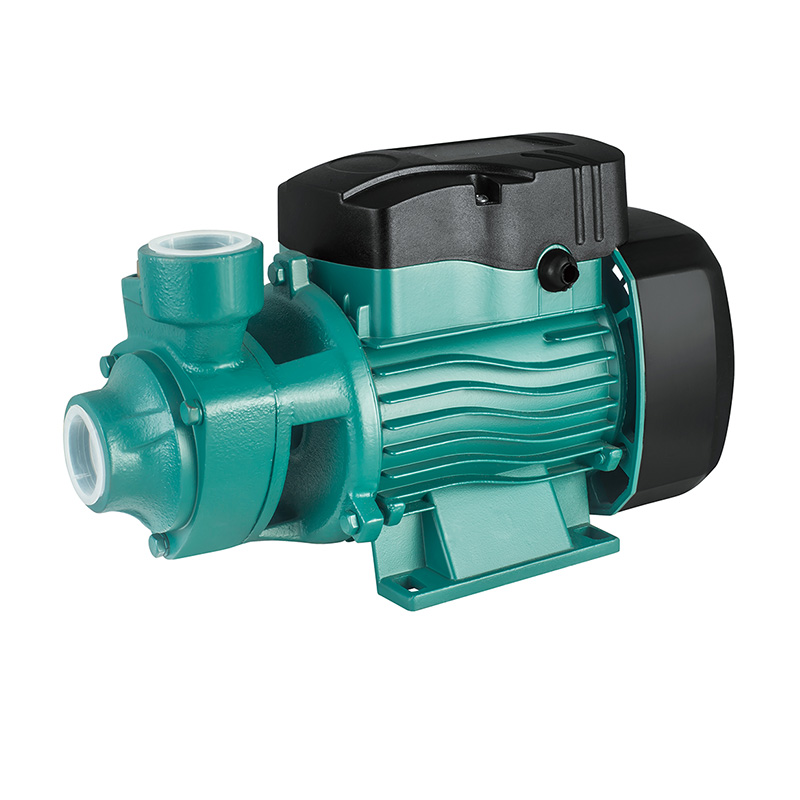

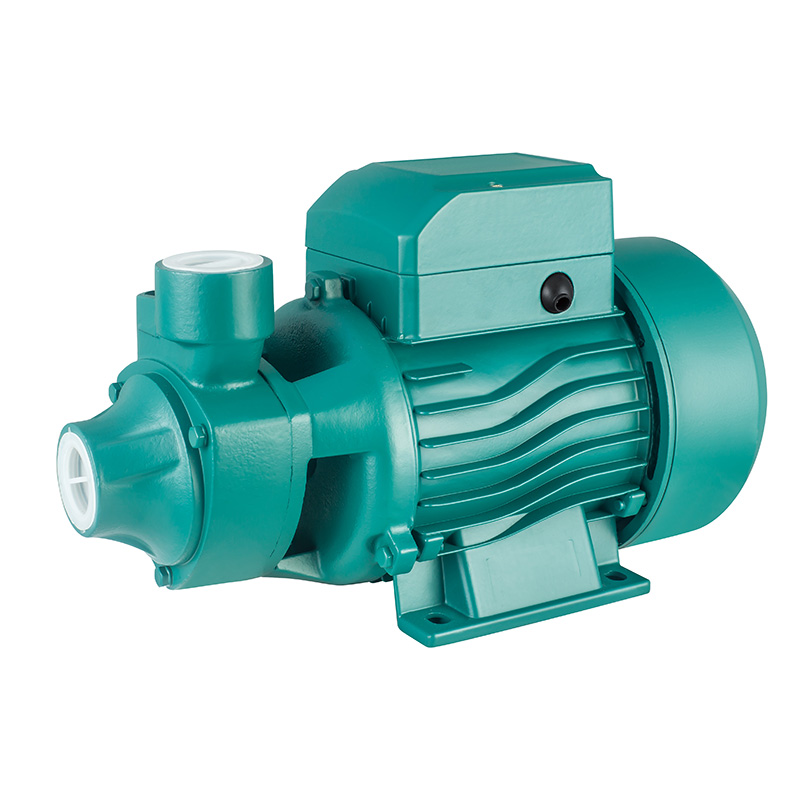

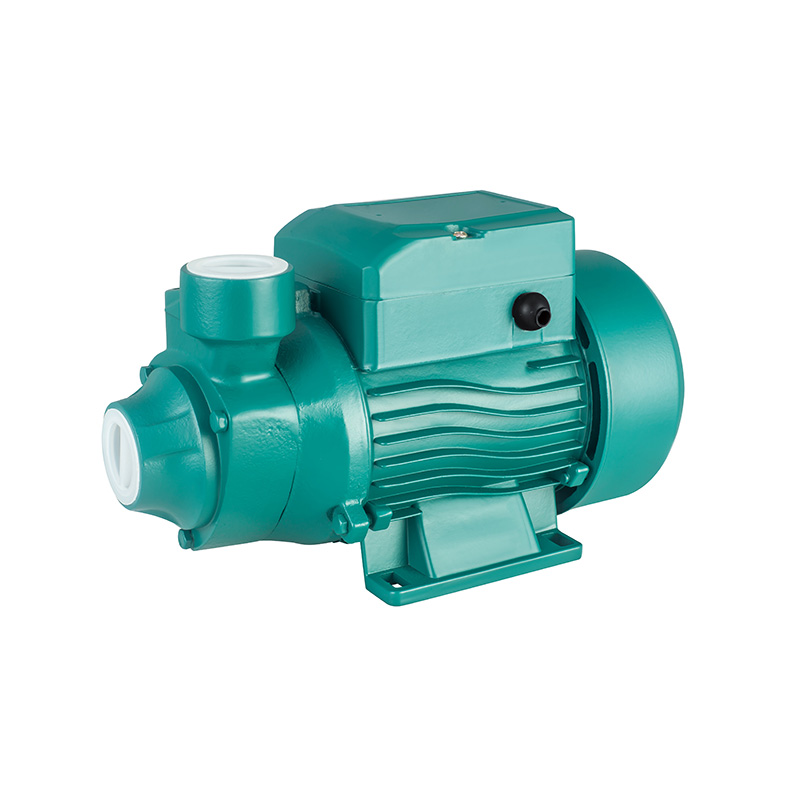

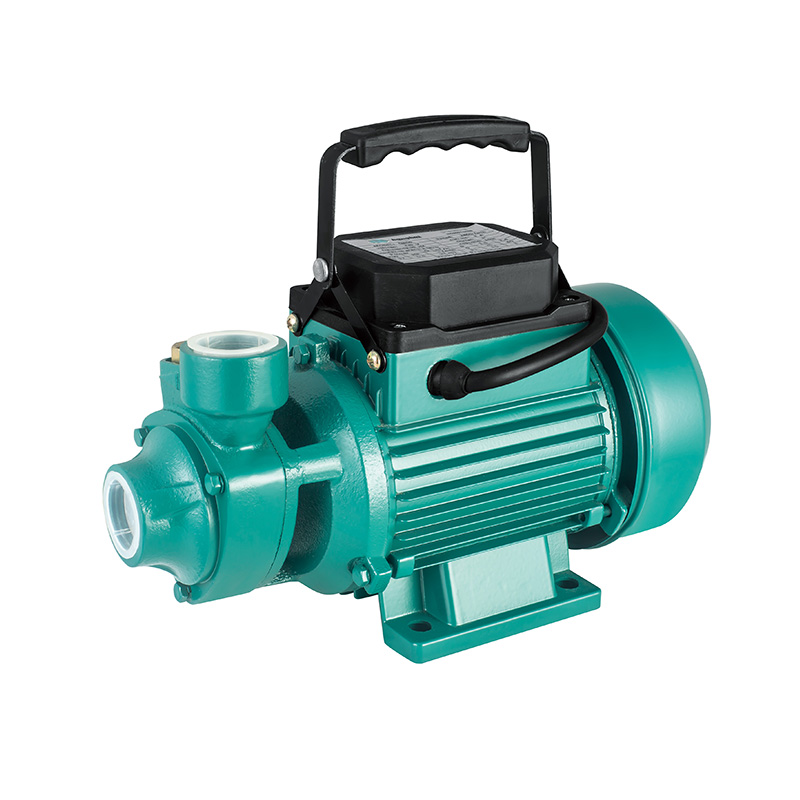

QB Series Peripheral Pump


Availability:

QB peripheral series surface pumps are designed for easy operation and hassle-free installation, primarily for ground-mounted use. It is ideal for daily water-lifting applications, such as drawing water from a well and delivering it to an overhead storage tank or supplying well water for garden irrigation and sprinkling.
Note: This pump is suitable for clean water only. Avoid using it with water containing sticky or viscous substances, as they may damage the pump.

Model:
QB
Brand:
SRM

Product Description

QB explore drawing

FAQ

Product Advantage

This water pump features a simple and user-friendly design, ensuring easy installation, operation, and low-maintenance upkeep. In addition to the one-year manufacturer’s warranty, customers can perform basic maintenance on non-core components themselves.

With moderate flow rate and high lift, it is one of the most versatile and reliable ground-mounted water pumps for household use.

Technical Parameters

Operating conditions

Max. fluid temperature: +40℃

Max. sand content: 0.25%

Motor and Pump

Three-phase OR Single-phase

Options on request Special：

Mechanical seal

60 Hz Frequency

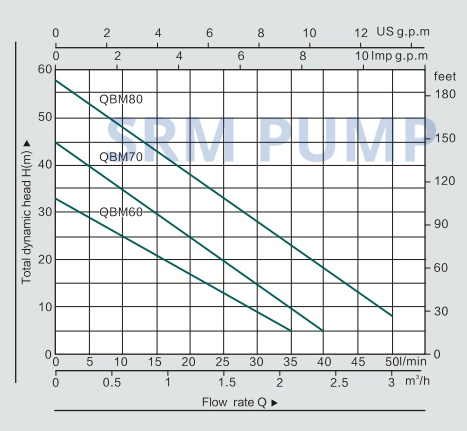

Performance Chater

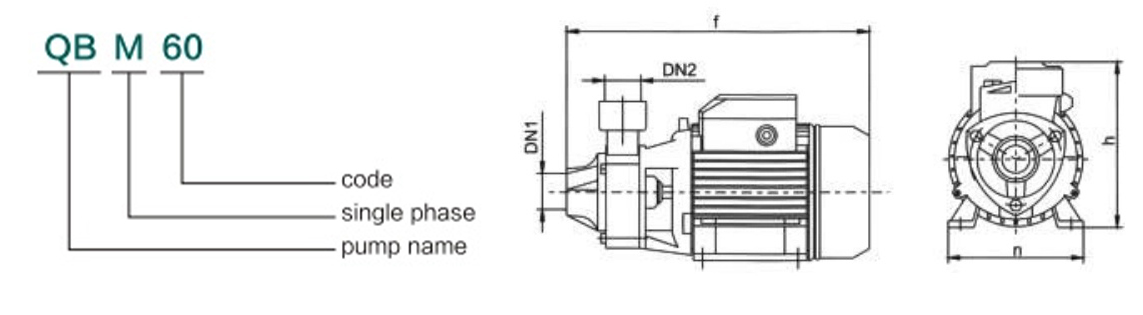

Model Optional

MODEL	DIMENSIONS(mm) n h f
QBM60	1"	1"	120	152	343
QBM70	1"	1"	134	179	285
QBM80	1"	1"	134	179	285

Performance Data 50Hz
MODEL		P₂		DELIVERY n≈2850 r/min
1~ 220V/240V	3~ 380V/415V	KW	HP	m³/h Q I/min	0	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4	2.7	3.0
1~ 220V/240V	3~ 380V/415V	KW	HP	m³/h Q I/min	0	5	10	15	20	25	30	35	40	45	50
QBM60	QB60	0.37	0.5	H(m)	33	29	25	21	17	13	9	5	一	一	一
QBM70	QB70	0.55	0.75		45	40	35	30	25	20	15	10	5	一	一
QBM80	Qb80	0.75	1		58	53	48	43	38	33	28	23	18	13	8

Product Uses

For water supply from wells or reservoirs to higher water storage tank.

For domestic use ,for civil and industrial applications, lift waters from under land to higher place.

For garden use and irrigation, help pump water directly from well to garden.

Installation & Usage Guide

Power Cord Options: Select a pump with different cable length based on your needs.
Placement: Install the pump on a flat, stable surface.
Operation: Simply connect to a power source to start using it.
Important Note: Avoid prolonged use under overheating conditions to extend the lifespan of the pump’s core components.

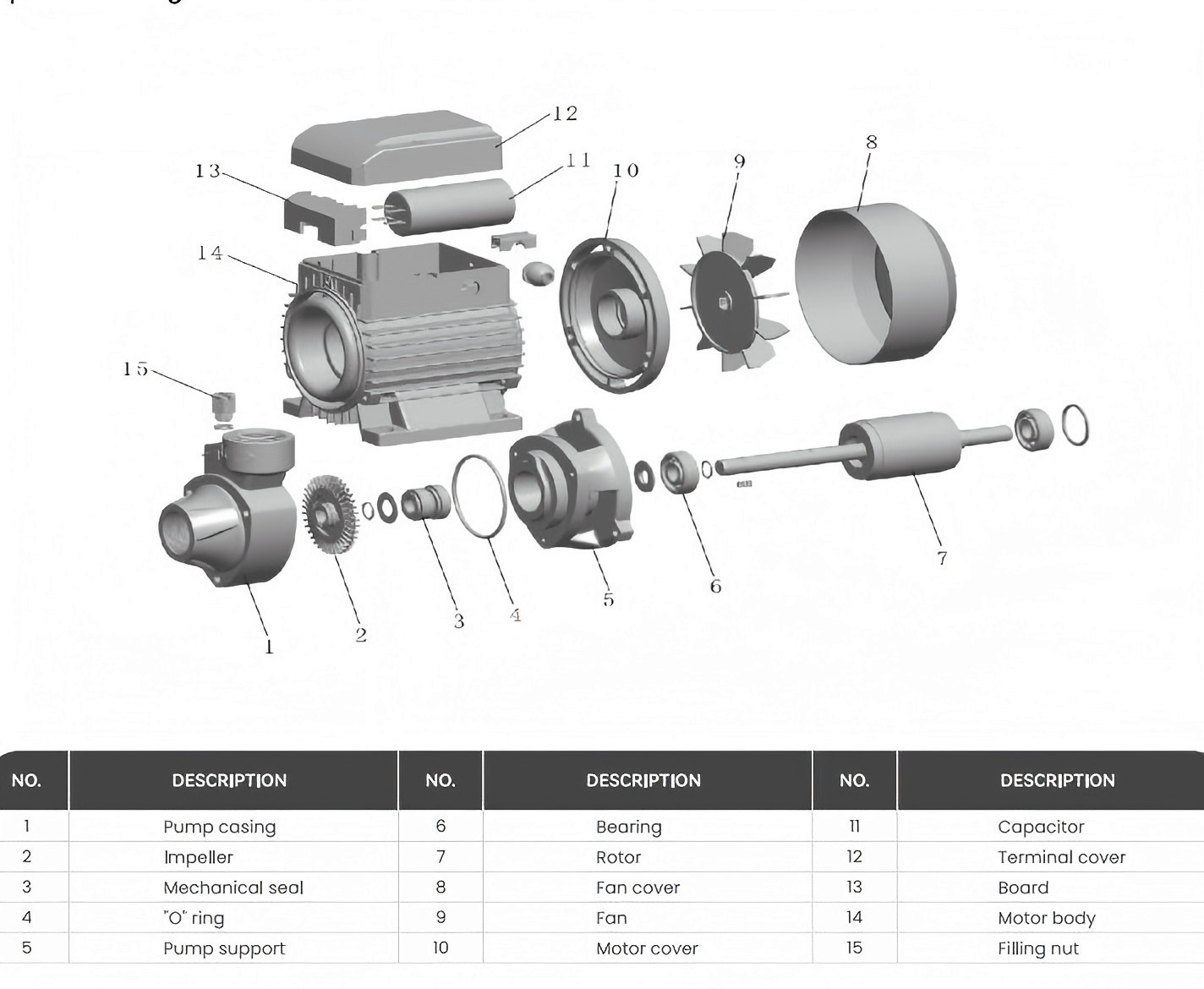

QB英文分解图(1)

FAQs

How to Choose a Water Pump?

Our website categorizes pumps based on application scenarios, such as household use, agricultural irrigation, or industrial applications, allowing you to easily find the right pump for your needs.
You can further refine your selection by liquid type (e.g., clean water or wastewater) before browsing product pages to compare technical specifications, including lift height and flow rate, ensuring the pump meets your requirements.
For professional users, pumps are also classified by type (e.g., centrifugal, submersible, etc.), enabling more precise selection based on technical needs.
How to Purchase SRM Pumps?

Purchasing SRM pumps is simple:
Contact Us – Visit our website and reach out via:
Email Phone Social Media DM
(A dedicated representative will assist you promptly.)
Can I Use My Own Logo?

Custom Branding Option – We support OEM/ODM services and can produce pumps with your logo, provided you:
Own the trademark OR
Have authorization from the trademark owner.
