Power Options: 380V or 220V.

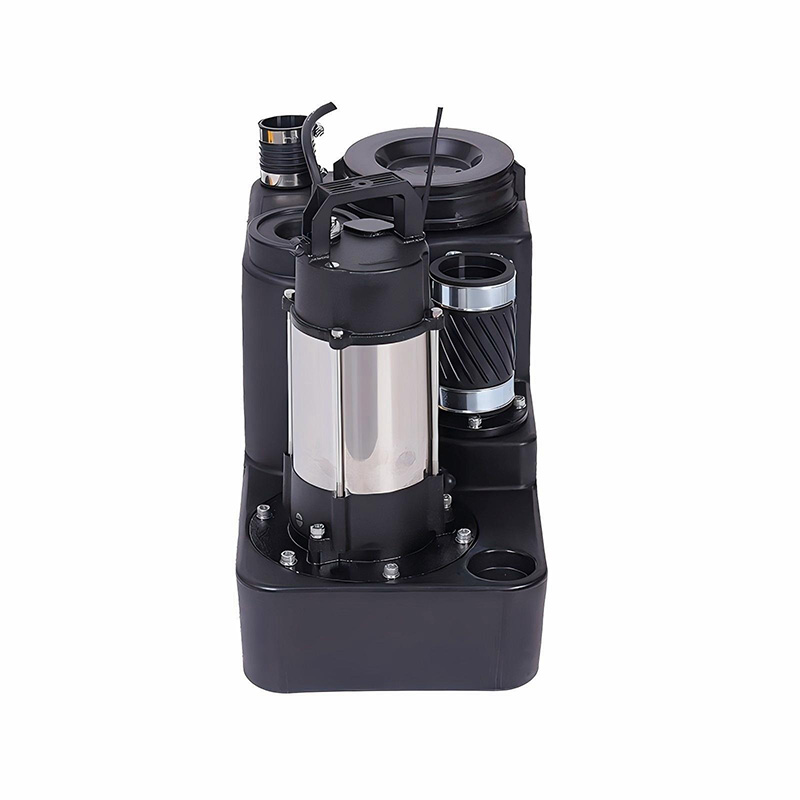

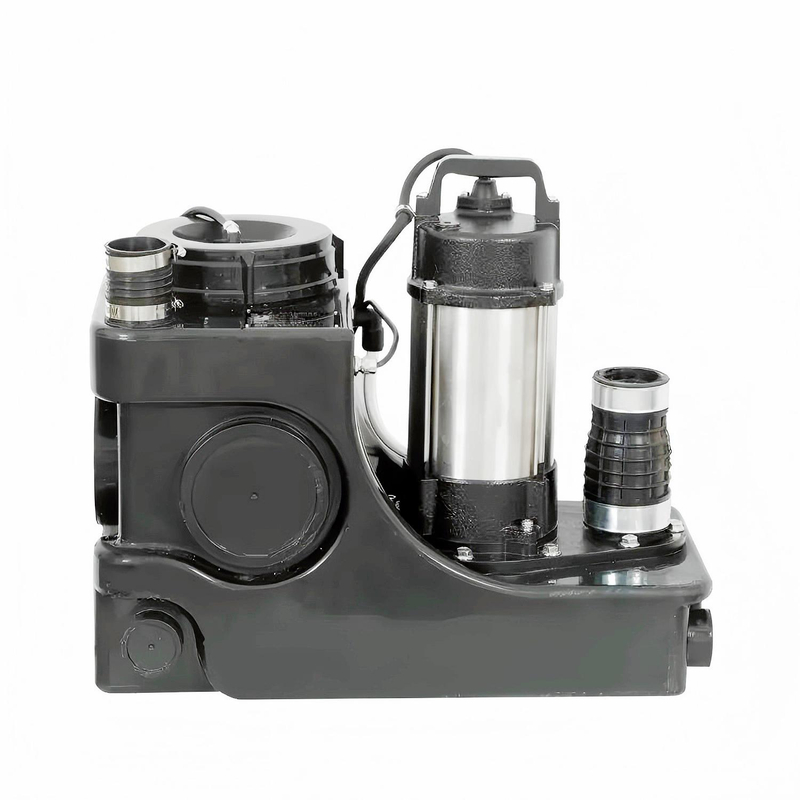

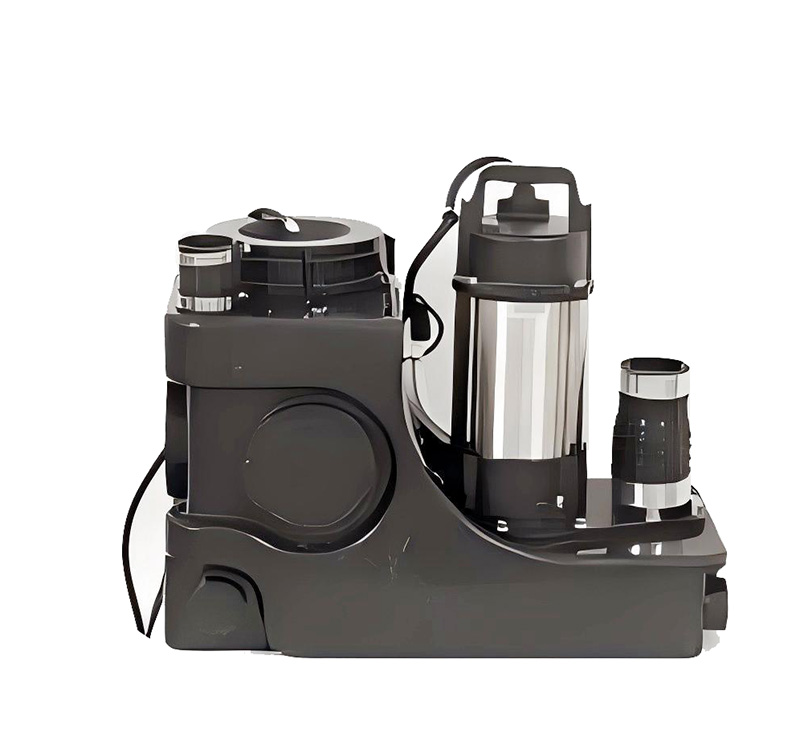

The SRM25L series features a corrosion-resistant and environmentally friendly polyethylene(PE)tank,offering excellent sealing,durability,and a compact,lightweight,and aesthetically pleasing design.With a tank capacity of approximately 20L, it comes pre-equipped with multiple horizontal water inlets for easy installation.
Key figuresIntegrated configuration, easy to install, transport eddy current non-blocking impeller
The equipment is small in size, easy to install, corrosion-resistant PE material
Air pressure and liquid level start and stop device, at the same time equipped with independent high-level alarm, forced start of liquid level, dual insurance

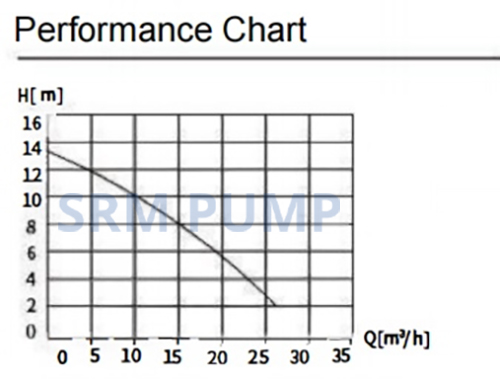

The equipment has a larger flow rate of 20m3/H and a large head of 13 meters.
Performance Parameters
Pump is equipped with a non-clogging vortex impeller;
optional power: 0.75KW.
Pump body material:HT250/SUS304(stainless steel).
Vortex impeller material: HT250;
Pump shaft material: SUS410.
Maximum passage diameter: 35mm.
Max.pump starts per hour: 60 times/hour.
Standard configuration: Includes 5-meter cables(between controller,pump,and float switch).
Built-in DN40 check valve.
Outlet: DN40 vertical outlet (adaptable with reducers).
Activation method: Dual-level control (air pressure+float switch),providing innovative double protection.

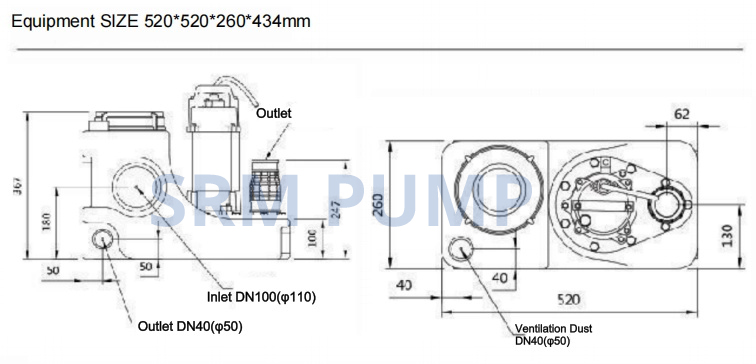

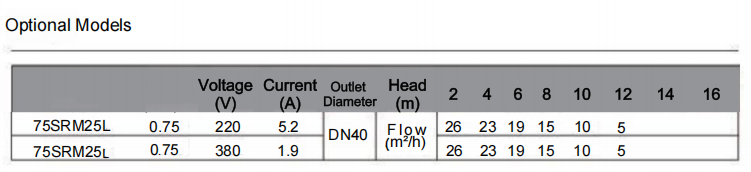

Technical parameters | |||||||

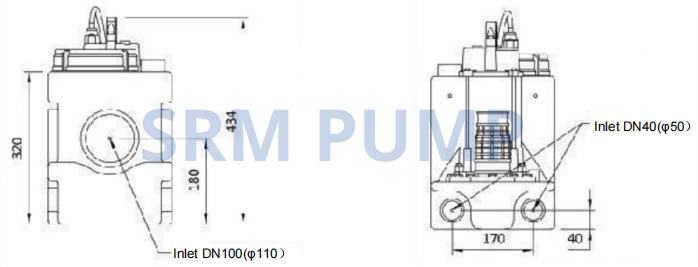

Model | Diameter | Tank | Outlet | Inlet Pipe | Outlet | Inlet | Weight(kg) |
75SRM25L | 35 | 20 | DN40 | DN100 | DN40 | DN40 | 24 |

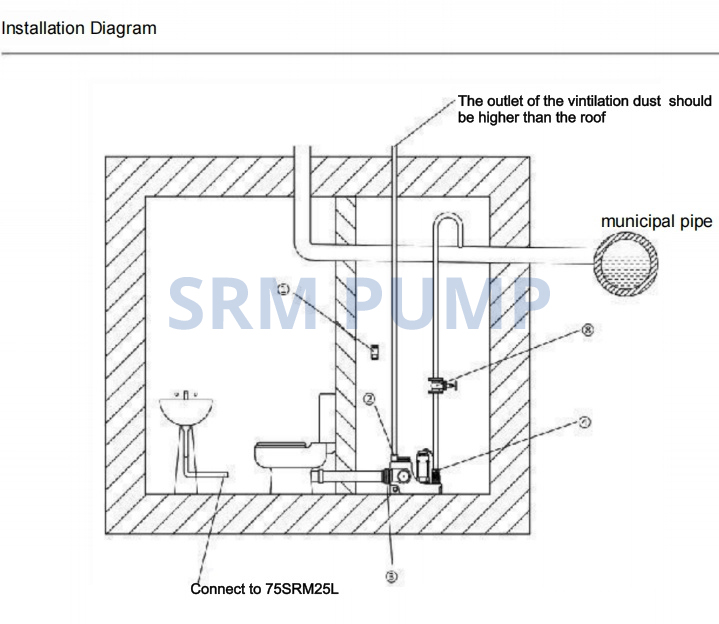

NO. | Description | Size | QTY | Note |
1 | Controller | NK-1 | 1 | Standard |
2 | Ventilation soft connector | DN40 | 1 | Standard |
3 | Water inlet soft connector | DN100 | 1 | Standard |
4 | Water outlet soft connector | DN40 | 1 | Standard |
5 | Outlet stop valve | DN40 | 1 | Standard |
Typical Applications
Waste water Lifting Station is for occasions where pipeline wastewater and toilet sewage are lower than the liquid level of the sewer. Srm25 is with medium volume, mainly for residential/domestic use.
How to Choose The Model Of Lifting Station？
According to the usage frequency and the quantity of the equipments connected to station, Below as a reference:
Application Scenario | Recommended Capacity | Model Example |
Single bathroom | 25-50L | SRM25 |
Kitchen + laundry room | 50-100L | SRM100 |
Commercial premises (3-5 fixtures) | 100-200L | SRM200 |
