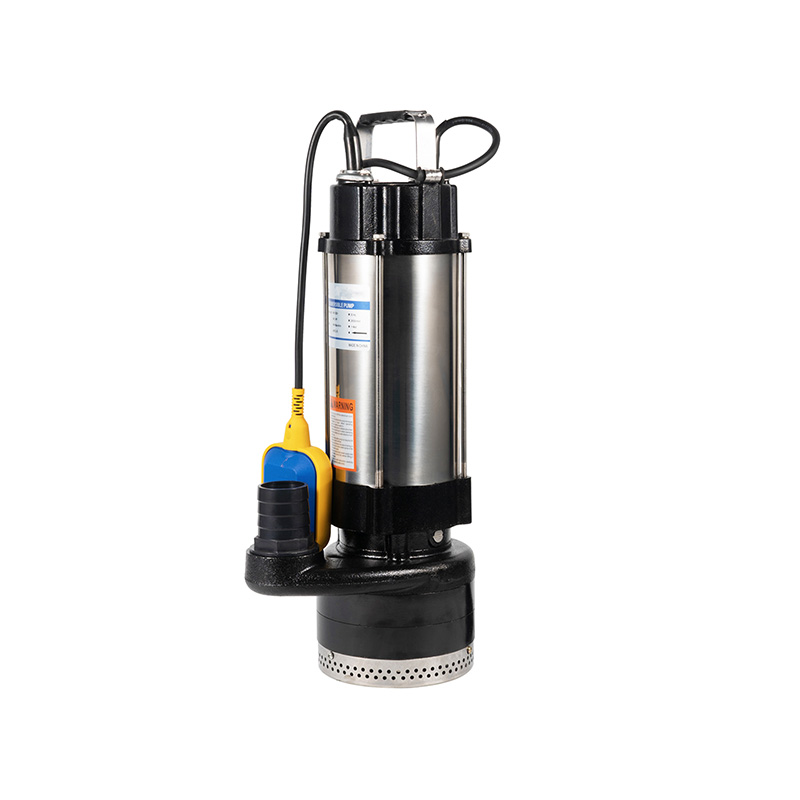

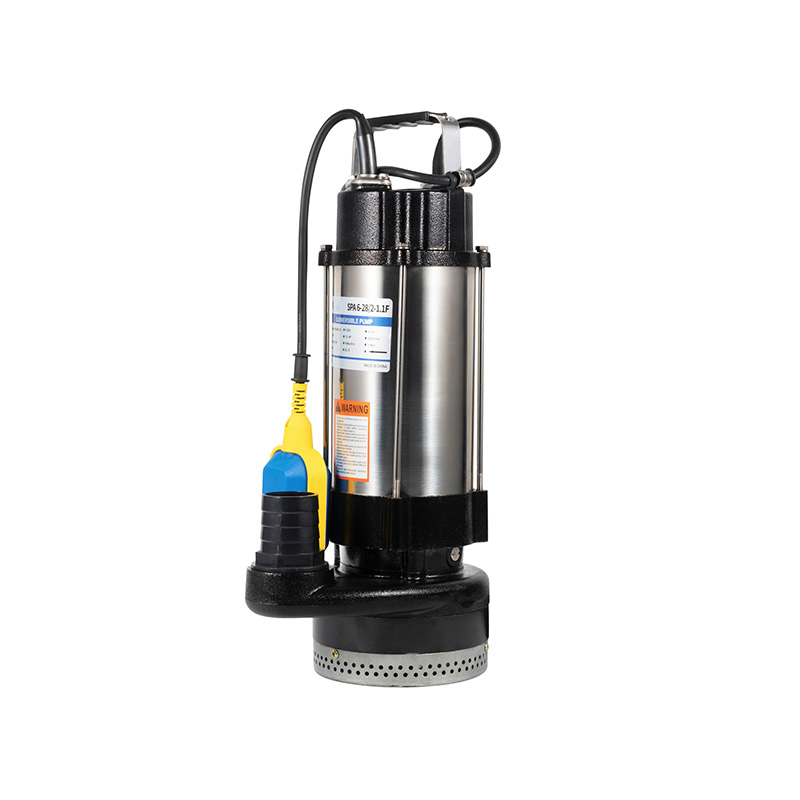

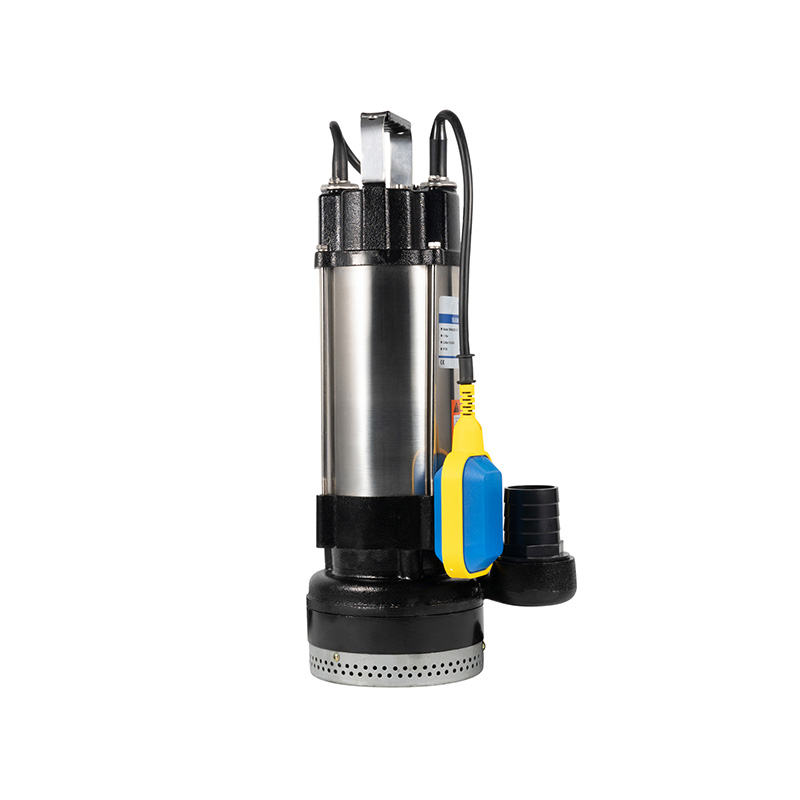

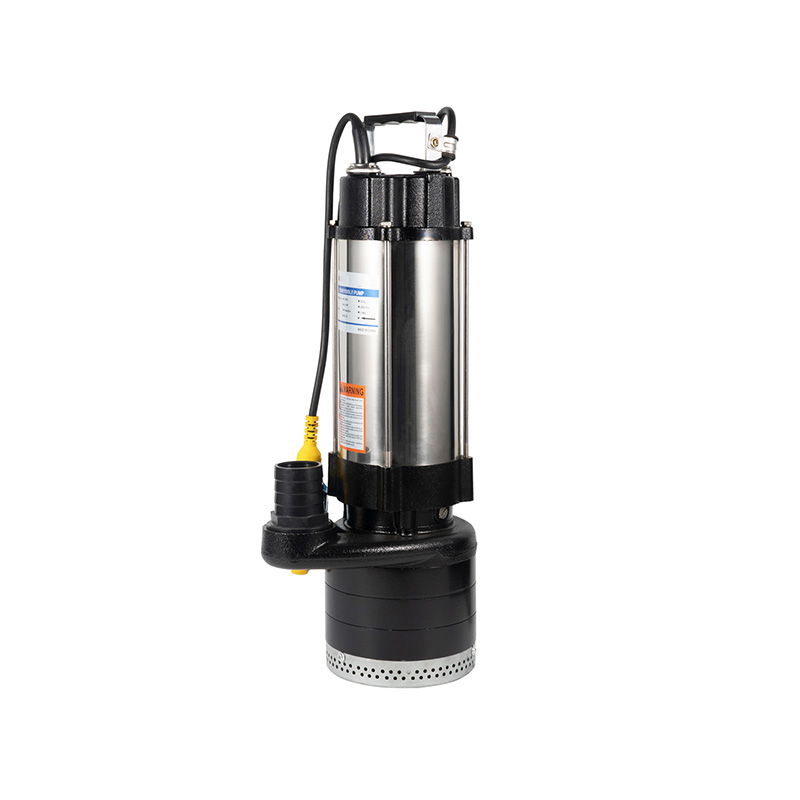

SPA Series Submersible Booster Pump


Availability:

SPA stainless steel sewage submersible pump is a new type of centrifugal pump. It is made of stainless steel, featuring corrosion and wear resistance. It is suitable for industrial wastewater, municipal sewage, building drainage, and other applications, capable of handling media containing solid particles or fibers, with a water temperature ≤60°C and a pH range of 4–10. This equipment is widely used in industries such as chemical, pharmaceutical, mining, municipal engineering, and agricultural irrigation, meeting the drainage needs of enterprises, hospitals, subways, and other facilities.

It adopts a single/multi impeller structure, allowing the passage of fibers up to 5 times the pump diameter and 50% solid particles. Equipped with tungsten carbide or fluororubber double mechanical seals, it supports continuous operation for over 8,000 hours. The compact design allows for both submersible and fixed coupling installation, with leak detection, thermal protection, and an automatic control cabinet for overload, leakage, and other multi-layer protections. Some models include a cutting device to enhance waste processing capability, while a float switch and dual-guide rail coupling system optimize adaptive start-stop based on liquid level and facilitate maintenance.

The rated voltage covers 220V/380V, with a maximum head of 25 meters, a flow range of 3–75 m³/h, and a submersion depth of up to 10 meters.

Model:
SPA
Brand:
SRM of Customized

Product Description

FAQ

It is widely use for extracting groundwater from wells, and can also be used in water extraction projects such as rivers, reservoirs, and canals: it is mainly used for farmland irrigation and human and animal water in high plateaus and mountainous areas. It can also be used for water supply and drainage in cities, factories, railways, mines, and construction sites.

Operating conditions

Maximum fluid temperature up to +60℃.

Motor and Pump

Rewindable motor Three-phase or Single-phase

Multi impellers optional

Special mechanical seal optional

Other voltages or frequency 60 Hz

Performance Chater

Model	Power		Capacity (m³/h)	Head (m)	speed (r/min)	Outlet (mm)
1~ 220V/240V	KW	HP
SPA6-28/2-1.1	1.1	1.5	6	28	2900	50
SPA6-39/3-1.5	1.5	2	6	39	2900	50
SPA6-52/4-2.2	2.2	3	6	52	2900	50

Standard applications

Agricultural irrigation

River water extraction

Commercial water supply systems

Drainage operations

Seawater aquaculture

Food/beverage processing

Chemical fluid transfer (mildly corrosive)

Wastewater with ≤5% solids content

FAQs

What Makes SRM Pumps Different?

With over 40 years of expertise in professional pump manufacturing, SRM Group—a Top 500 Enterprise in China—stands out for its:
Mature Production System – Rigorous quality control ensures reliable, high-performance pumps.
Customer-Centric Approach – We customize solutions to meet specific needs.
End-to-End Support – Beyond a 1-year warranty, we provide ongoing service assistance.
Choose SRM for durable, tailored pumping solutions backed by decades of industry leadership.
How to Purchase SRM Pumps?

Purchasing SRM pumps is simple:
Contact Us – Visit our website and reach out via:
Email | Phone | Social Media DM
(A dedicated representative will assist you promptly.)
Can I Use My Own Logo?

Custom Branding Option – We support OEM/ODM services and can produce pumps with your logo, provided you:
Own the trademark OR
Have authorization from the trademark owner.
