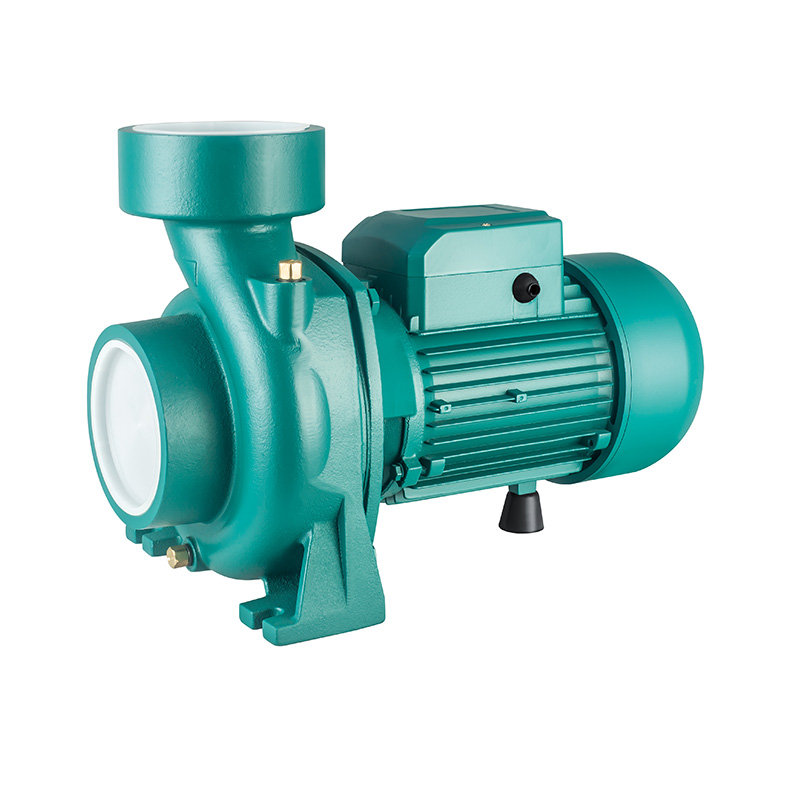

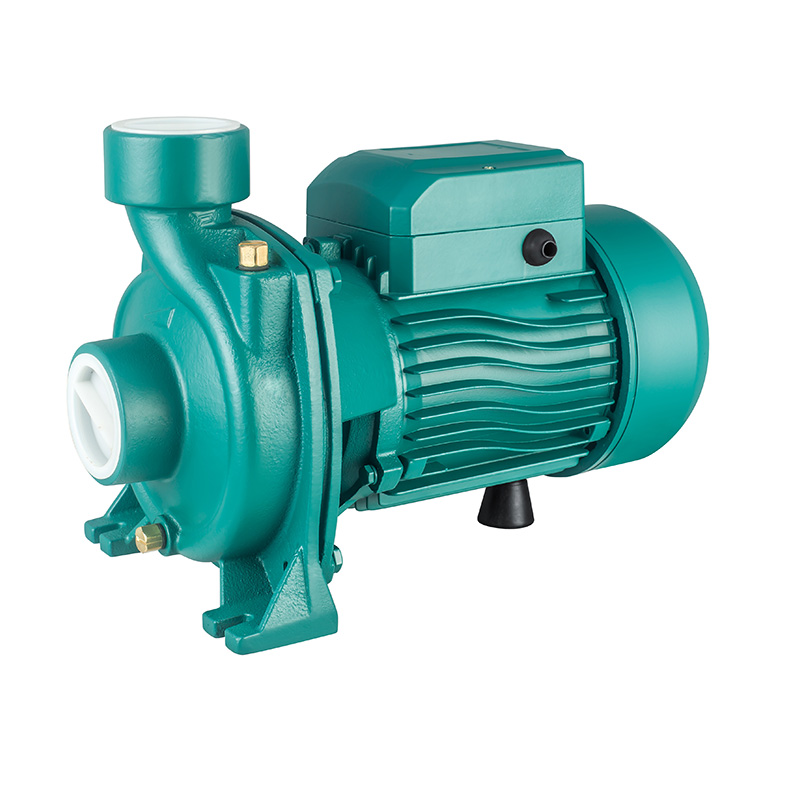

Specifying a Surface Pump that fails to meet system demands creates immediate operational bottlenecks. Manufacturer-provided pump curves often reflect idealized, factory-controlled conditions handling cold, clear water. Real-world deployment introduces complex variables. Suction lift, fluid viscosity, piping friction, and pressure conversions significantly alter actual performance. These deviations lead to cavitation, premature mechanical wear, and excessive energy consumption.
Moving beyond basic curve reading requires rigorous performance verification. We must evaluate centrifugal pump curves to ensure selected equipment aligns with specific operational criteria and long-term reliability targets. Relying solely on a published chart without overlaying actual site conditions guarantees underperformance. You must validate the data against physical fluid dynamics. This guide provides the framework for decoding performance metrics, evaluating different pump architectures, and verifying manufacturer claims against field realities.
System Curve Alignment is Non-Negotiable: A surface pump is only as effective as its intersection with the specific system curve; operating too far from the Best Efficiency Point (BEP) accelerates mechanical degradation.
NPSHr Dictates Reliability: Verifying the Net Positive Suction Head required (NPSHr) against the available system head (NPSHa) is the primary defense against cavitation in surface-mounted applications.
Impeller Trims and Efficiency Islands: Comprehensive pump charts display multiple impeller diameters and iso-efficiency lines; specifying the exact trim is critical for optimizing power consumption.
Testing Validates Claims: Relying solely on published catalog curves carries risk; specifying certified Factory Acceptance Testing (FAT) ensures the physical unit meets the required tolerances before installation.
Design Variations Alter Curve Topography: Different pump architectures (e.g., self-priming vs. peripheral) exhibit distinct curve shapes (flat vs. steep), directly influencing their suitability for variable-demand applications.
Establishing foundational metrics is the first step in qualifying a pump for a specific application. You must move from basic definitions to rigorous procurement-level evaluation. A performance curve is a graphical representation of hydraulic capabilities. It maps how a pump behaves under varying flow and pressure conditions. Understanding these metrics prevents catastrophic sizing errors on the job site.
Field measurements often conflict with pump curve metrics. Technicians typically read system pressure in PSI or Bar from a mechanical gauge. However, manufacturer curves display performance in Feet or Meters of Head. Head represents the physical height a pump can lift a fluid, independent of the fluid's weight. Pressure depends entirely on fluid density.
You must convert required system pressure into Total Dynamic Head (TDH) to read the curve accurately. Use the standard calculation: Head (in feet) equals PSI multiplied by 2.31, divided by the fluid's specific gravity. If you pump a heavy fluid like a 1.2 specific gravity calcium chloride brine, the pump generates less pressure for the same amount of head compared to water. Failing to account for specific gravity during conversion results in selecting an undersized unit that will never hit the required discharge pressure.
The H-Q curve illustrates the inverse relationship between TDH and flow rate. As flow increases, the head generated by the pump decreases. This line stretches from zero flow (shut-off head) to maximum flow (run-out). The shape of this curve dictates system stability across varying operational states.
A steep curve drops sharply as flow increases. Steep curves provide stable flow rates even if system pressure fluctuates. They work well in boiler feed applications where maintaining a precise flow is mandatory despite changing internal vessel resistance. A flat curve remains relatively horizontal. Flat curves cause large flow variations with only minor pressure shifts. They suit cooling tower systems requiring constant pressure across varying demand cycles.
A single centrifugal water pump performance chart rarely shows just one line. It displays multiple H-Q curves stacked vertically. Each line represents a different machined impeller diameter operating within the same pump casing. Manufacturers cast a maximum impeller size and trim it down on a lathe to meet specific duty points.
Selecting the appropriate impeller trim allows you to hit the desired duty point without over-pressurizing the piping network. If your required duty point falls between two published trim lines, you generally specify the larger trim and utilize a variable speed drive, or you request a custom intermediate trim from the factory. Choosing a trim that is too large wastes energy and forces the system to throttle the excess pressure through a control valve.
The Best Efficiency Point (BEP) is the operational sweet spot. At this exact flow and head combination, the pump transfers energy to the fluid most effectively. More importantly, operating at BEP minimizes radial forces acting on the impeller and shaft. This extends the life of mechanical seals and bearings from months to years.
Pump charts feature topographical efficiency islands known as iso-efficiency lines. These concentric loops intersect the H-Q curves. They pinpoint the exact efficiency percentage at any given duty point. You must ensure your operating point falls within the industry-standard acceptable range. This range typically spans 70% to 120% of the BEP. Operating outside this window causes shaft deflection, increased vibration, and rapid component failure.
The NPSHr curve sits at the bottom of the performance chart. It rises as flow increases. NPSHr represents the absolute minimum fluid pressure required at the impeller eye to prevent the liquid from vaporizing. Vaporization causes cavitation, which violently destroys impellers and sounds like pumping gravel.
You must calculate the Net Positive Suction Head available (NPSHa) in your physical system. NPSHa accounts for atmospheric pressure, static suction lift, friction losses, and the fluid's vapor pressure. The engineering standard dictates that NPSHa must exceed NPSHr by a strict margin. Maintain at least a 3 to 5-foot (1 to 1.5-meter) buffer to guarantee safe operation across all expected flow rates.
Different pump designs alter the standard performance curve topography. The internal geometry dictates application suitability. You cannot evaluate all surface-mounted pumps using the exact same baseline assumptions. Understanding these architectural variations ensures proper equipment matching for specific site conditions.
A self priming centrifugal pump features an internal priming chamber and a specialized volute. This chamber retains liquid after the initial shutdown, allowing the pump to evacuate air from the suction line during the next startup. This recirculation mechanic slightly reduces overall hydraulic efficiency compared to standard end-suction pumps.
When reading these curves, you must account for priming lift capabilities. Manufacturers often provide a secondary chart or data table detailing the maximum lift height and the time required to achieve prime. The main H-Q curve only applies after the pump fully evacuates the air and operates in a flooded state. You must verify that the reduced efficiency aligns with your system requirements and that the suction lift does not exceed the physical limits of the priming chamber.
Specialized architectures generate highly distinct performance profiles. A jet water pump utilizes an internal ejector (venturi) to increase suction capabilities. This creates a dual-curve nature depending on whether it operates in a shallow well or deep well configuration. The internal ejector shifts the H-Q curve to deliver higher head at lower flow rates. You must read the specific curve corresponding to your exact ejector nozzle size and depth setting.
Conversely, a peripheral water pump (often called a regenerative turbine pump) features a uniquely steep performance curve. The fluid travels in a helical path around the impeller periphery, gaining massive pressure with each rotation. This makes them ideal for low-flow, high-head applications like boiler feed systems. However, the tight internal clearances make them extremely sensitive to fluid impurities. Abrasive particles rapidly degrade the steep curve, causing severe performance drops within weeks of installation.
Pump Architecture | Curve Topography | Primary Advantage | Operational Limitation |
|---|---|---|---|
Standard End-Suction | Moderate slope, high efficiency islands | Highest hydraulic efficiency at BEP | Requires flooded suction or foot valve |
Self-Priming Centrifugal | Slightly flatter, lower peak efficiency | Evacuates air from suction lines automatically | Internal recirculation reduces overall head |
Jet Pump | High head, low flow (dual curves) | Excellent suction lift capabilities | Ejector nozzle limits maximum flow rate |
Peripheral (Regenerative) | Extremely steep, linear slope | Massive pressure generation at low flows | Highly susceptible to abrasive wear |
Theoretical curves mean nothing without real-world validation. You must bridge the gap between manufacturer data and operational requirements. This requires applying specific verification methodologies to ensure the equipment performs as promised under site-specific conditions.
You cannot select a pump based on a single duty point alone. You must plot the facility's system curve directly onto the manufacturer's pump curve. The system curve represents the total resistance the pump must overcome. It consists of static head (the physical elevation change measured with a tape measure) and dynamic friction loss (resistance from pipes, valves, and fittings calculated using Hazen-Williams or Darcy-Weisbach formulas).
Friction loss increases exponentially with flow. Plotting this parabolic curve against the pump's H-Q curve reveals the exact operating point. The intersection of these two lines dictates where the pump will actually run. You must assess this intersection's proximity to the BEP. If the intersection falls too far left or right, the pump will suffer mechanical stress regardless of the manufacturer's claims.
Published curves assume you are pumping clean water at 68°F (20°C). Pumping fluids with different properties requires mathematical corrections. Specific gravity directly impacts the required brake horsepower (BHP). A heavier fluid demands a larger motor to achieve the same head, even though the H-Q curve remains unchanged.
Viscosity alters the curve entirely. High-viscosity fluids like cold glycol mixtures increase internal friction within the pump casing. This degrades both head and flow capacity while sharply increasing power requirements. You must apply Hydraulic Institute correction factors to derate the published water curve. Failing to adjust for viscosity guarantees an undersized motor and a pump that cannot reach the required duty point during winter operations.
Applying a Variable Speed Drive (VSD) shifts the performance curve to match variable system demands. The Affinity Laws govern these changes. Flow is directly proportional to speed. Head is proportional to the square of the speed. Power is proportional to the cube of the speed. Reducing speed by 20% cuts power consumption by nearly 50%.
However, you must evaluate the limits of the Affinity Laws. In static head-dominated systems where elevation accounts for most of the resistance, slowing the pump too much causes the H-Q curve to drop below the system's static head requirement. This results in zero flow, a condition known as deadheading. You must plot multiple reduced-speed curves to verify the pump can still overcome static resistance at lower frequencies.
Theoretical curves often fail in practice due to overlooked physical limitations. Identifying these risks early allows you to engineer appropriate safeguards. Understanding where deviations occur prevents catastrophic system failures and extends equipment lifespan.
Atmospheric pressure physically limits surface-mounted pumps. At sea level, atmospheric pressure can theoretically push water up a pipe to about 34 feet. In reality, friction and vapor pressure reduce this maximum lift to roughly 25 feet. If you install a pump at a high altitude like Denver, atmospheric pressure drops, further reducing suction capabilities.
You must recalculate NPSHa for high-altitude installations or high-temperature fluids. Hot water has a higher vapor pressure, meaning it flashes into steam much easier. If NPSHa drops below NPSHr, cavitation occurs. The imploding vapor bubbles strip metal from the impeller, destroy seals, and cause severe vibration. Accurate NPSHa calculation is your only defense against this destructive force.
Operating at the far right of the curve is known as run-out. This happens when system resistance is much lower than anticipated, such as during a pipe rupture. At run-out, the pump moves massive volumes of fluid. This causes NPSHr to spike exponentially, often leading to cavitation. It also maximizes power draw, risking motor overload if the motor was only sized for the BEP.
Operating at the far left of the curve poses equal danger. The Minimum Continuous Safe Flow (MCSF) marks the lowest acceptable flow rate. Operating below MCSF causes rapid fluid heating because the energy transfers into heat rather than movement. It also generates immense radial thrust, causing shaft deflection and immediate mechanical seal failure. You must install bypass lines or minimum flow valves to ensure flow never drops below the MCSF threshold.
The published curve represents a brand-new pump with factory-tight clearances. Centrifugal pumps utilize wear rings to restrict fluid from recirculating from the high-pressure discharge back to the low-pressure suction eye. Over time, particulate matter and normal operation erode these rings, opening the clearances from 0.015 inches to 0.050 inches or more.
As wear ring clearances widen, internal recirculation increases. This effectively shifts the performance curve downward over the equipment's lifecycle. The pump must work harder to deliver the same flow and head. When evaluating a curve for a long-term installation, you must account for this inevitable degradation. Sizing a pump exactly on the edge of its capabilities guarantees failure once internal wear begins.
Translating curve data into long-term operational success requires looking beyond the initial duty point. You must evaluate how the pump interacts with the motor and the broader electrical system. Proper sizing prevents wasted energy and ensures continuous reliability.
The power curve indicates the required Brake Horsepower (BHP) across the entire flow range. A common mistake involves sizing the motor exclusively for the designated duty point. If system resistance drops, the pump moves right on the curve, increasing power demand. This trips breakers and burns out motors.
You must ensure the selected motor is non-overloading across the entire operational range. This means sizing the motor to handle the End of Curve horsepower. While this requires a slightly larger initial motor frame, it provides absolute protection against overload during system upsets or pipe breaks. A non-overloading motor guarantees electrical stability regardless of hydraulic fluctuations.
Selecting an oversized pump and throttling the discharge valve to hit the duty point wastes massive amounts of energy. Throttling introduces artificial friction, forcing the pump to ride up the curve to a higher head and lower efficiency zone. The energy consumed overcomes the closed valve rather than moving the fluid.
To optimize energy consumption, you must select a properly sized impeller trim that naturally intersects the system curve without throttling. If the system requires variable flow, utilizing a VSD is the correct engineering choice. The VSD reduces the pump speed, lowering the curve to meet demand efficiently. This approach drastically reduces power draw and minimizes mechanical stress on the impeller.
You should never accept a catalog curve as an absolute guarantee for critical applications. Manufacturing tolerances in casting and machining cause slight performance variations between identical pump models. You must specify certified Factory Acceptance Testing (FAT) to validate the exact unit prior to shipment.
Specify testing according to the ANSI/HI 14.6 standard. Understand the difference between acceptance grades. Grade 1 offers stringent tolerances, ensuring the pump performs almost exactly as the curve dictates. Grade 2 allows wider deviations, which may be acceptable for non-critical utility pumps. Requesting a witnessed, certified test curve for your specific serial number ensures the physical reality matches the theoretical promise.
Take the following actions to ensure proper pump specification and field reliability:
Plot your exact system curve, including measured static head and calculated friction loss, directly onto the manufacturer's published performance chart.
Select a pump where the system curve intersection falls within 10% of the Best Efficiency Point to maximize mechanical longevity and bearing life.
Calculate your site-specific NPSHa and verify it exceeds the published NPSHr by at least 3 to 5 feet under the highest-flow operating scenarios.
Demand certified Factory Acceptance Testing curves for the specific serial numbers prior to shipment for all critical process pumps.
A: A pump curve shows the hydraulic performance a specific pump can generate at various speeds or impeller trims. A system curve shows the resistance the piping network creates at various flow rates, combining static elevation and friction loss. The pump operates exactly where these two curves intersect.
A: To convert PSI to Head in feet, multiply the PSI reading by 2.31, then divide by the specific gravity of the fluid. For clean water at room temperature, the specific gravity is 1.0, making the formula simply PSI multiplied by 2.31.
A: The multiple curved lines represent the same pump casing fitted with different machined impeller diameters. Manufacturers trim the impeller on a lathe to reduce its diameter. This allows the pump to hit specific lower head and flow requirements without changing the motor speed.
A: A self-priming curve generally shows slightly lower overall efficiency and head compared to a standard end-suction pump of the same size. This reduction occurs because the internal priming chamber and recirculation ports create internal fluid friction and turbulence during normal operation.
A: Calculate NPSHa by taking the absolute atmospheric pressure at your elevation, adding the static suction head, subtracting the friction losses in the suction piping, and subtracting the fluid's vapor pressure at the operating temperature. This confirms the fluid will not boil inside the pump.
A: MCSF is the absolute lowest flow rate at which the pump can operate safely. Operating below this point causes the fluid to rapidly heat up, generates severe radial thrust that bends the shaft, and leads to immediate mechanical seal and bearing failure.
