A Comprehensive Guide to Understanding, Selecting, and Maintaining This Critical Industrial Equipment
In the complex landscape of industrial fluid handling, the submersible slurry pump stands as a workhorse, quietly and efficiently tackling some of the most demanding tasks across mining, construction, and environmental management. Unlike standard water pumps, these specialized machines are engineered to handle abrasive, high-solid-content fluids that would quickly destroy conventional equipment. This guide will demystify the submersible slurry pump, from its fundamental definition and working principles to its critical components, diverse types, and essential maintenance practices.
A submersible slurry pump is a type of centrifugal pump specifically designed to be fully submerged in the fluid it is pumping. Its primary function is to transport slurries—mixtures of water and solid particles such as sand, gravel, coal, sludge, and mine tailings. What sets it apart from other pumps is its robust construction and ability to operate underwater, eliminating the need for priming and reducing the risk of cavitation.
Unlike surface-mounted pumps, which rely on suction to draw fluid, submersible slurry pumps are placed directly in the slurry, pushing the fluid upwards. This design is crucial for applications where the slurry is too thick, abrasive, or deep for traditional pumps to handle effectively. The term "slurry" itself refers to any fluid with a high concentration of suspended solids, and these pumps are the gold standard for moving such challenging media.
At its heart, the submersible slurry pump operates on the principle of centrifugal force. Here's a step-by-step breakdown of its operation:
The entire pump unit, including the motor and impeller, is submerged into the slurry. This eliminates the need for a suction line and prevents air from entering the system, a common cause of pump failure.
An electric motor, sealed and cooled by the surrounding fluid, drives a specially designed impeller at high speed.
As the impeller rotates, it creates a centrifugal force that accelerates the slurry outwards from the center of the impeller.
The accelerated slurry is collected in a volute casing, which converts the kinetic energy of the moving fluid into pressure energy.
The pressurized slurry is then forced through the discharge outlet and transported to its intended location, whether that's a processing plant, a disposal site, or a pipeline.

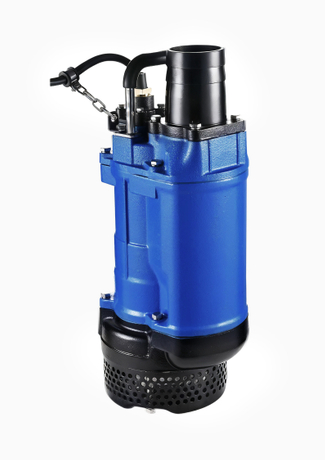

A key feature of many modern slurry pumps, like the KBS series shown in the image, is an agitator at the bottom. This device stirs up settled solids, ensuring the pump can draw in a consistent mixture and preventing clogging.
The durability of a submersible slurry pump is directly tied to the quality of its components and the materials used in their construction. Here are the critical parts:
The heart of the pump. It is typically made from high-chrome white iron or rubber to resist abrasion. Metal impellers are used for highly abrasive slurries, while rubber impellers are preferred for slurries with sharp-edged particles.
The volute that directs the flow. It is lined with wear-resistant materials such as rubber, polyurethane, or high-chrome alloy to withstand the constant impact of solid particles.
The shaft connects the motor to the impeller. It must be robust and supported by heavy-duty bearings. The shaft seals are critical; they prevent slurry from entering the motor housing. Double mechanical seals are standard, often with a barrier fluid for added protection.
A submersible electric motor, usually rated for IP68 protection, meaning it is fully dust-tight and can be immersed in water up to significant depths (e.g., 15 meters as specified for the KBS series).
Located at the suction inlet, this component breaks up settled solids and prevents the pump from ingesting large, damaging clumps.
Submersible slurry pumps are categorized based on their design, application, and the materials they handle. The KBS series is a prime example of a heavy-duty submersible slurry pump. Here are the main classifications:
◦ Single-stage: The most common type, with one impeller, used for most general slurry pumping.
◦ Multi-stage: Featuring multiple impellers, these are used for high-head applications where significant pressure is required.
◦ Mining Slurry Pumps: Designed for handling ore, coal, and tailings. They are built for maximum abrasion resistance.
◦ Construction/Dredging Pumps: Used for dewatering excavations, pumping sand and gravel, and dredging rivers and harbors. The KBS series falls into this category, with flow rates up to 372 m³/h and heads up to 32 meters.
◦ Wastewater Sludge Pumps: Used in municipal and industrial wastewater treatment to pump thick sludge and biosolids.
◦ Metal-lined pumps: For highly abrasive applications.
◦ Rubber-lined pumps: For slurries with sharp particles or where corrosion is a concern.
Submersible slurry pumps are indispensable in a wide range of industries:
◦ Dewatering deep excavations and foundation pits.
◦ Pumping sand, gravel, and slurry during tunneling and pipe-laying projects.
◦ Transporting coal slurry, copper ore, and iron ore from the mine face to processing plants.
◦ Handling tailings, the waste material left after mineral extraction.
◦ Maintaining navigation channels by removing silt and sand.
◦ Reclaiming land from the sea or lakes.
◦ Remediating contaminated sites by pumping out polluted groundwater and sludge.
◦ Managing industrial waste and sludge from power plants and factories.
Selecting the right submersible slurry pump is a critical engineering decision. The wrong choice can lead to inefficiency, frequent breakdowns, and high operational costs. Here are the key parameters to consider:
The volume of slurry to be pumped per unit time (m³/h or GPM). This is determined by the project's requirements.
The total dynamic head, which is the total resistance the pump must overcome. It is calculated as:
H = H_s + H_d + H_f + H_{losses}
Where:
◦ H_s = Static suction lift (if applicable)
◦ H_d = Static discharge head
◦ H_f = Friction loss in the pipes
◦ H_{losses} = Minor losses from valves and fittings
Slurries are heavier than water. The pump's power requirement increases with SG. The power (P) can be estimated using:
P = \frac{Q \times H \times SG}{367 \times \eta}
Where \eta is the pump efficiency.
Determines the material of construction (e.g., high-chrome for large, sharp particles).
Influences the choice of seal materials and motor insulation.
Proper installation and regular maintenance are the keys to maximizing the lifespan and efficiency of your submersible slurry pump.
• Depth: Ensure the pump is submerged to the minimum required depth to prevent vortexing and air ingestion.
• Positioning: Install the pump vertically on a solid base or use a guide rail system for easy retrieval. Avoid dragging the pump along the bottom.
• Cable Management: Secure the power cable to the discharge hose to prevent it from being damaged or snagged.
• Regular Inspections: Check for leaks, unusual noises, and vibration. Monitor the motor's temperature and current draw.
• Wear Parts Replacement: The impeller, casing liners, and seals are consumable items. Replace them at the first sign of excessive wear to prevent catastrophic failure.
• Cleaning: After use, flush the pump with clean water to remove any residual slurry that could cause corrosion or blockage during storage.
• Lubrication: Follow the manufacturer's guidelines for bearing lubrication and seal maintenance.
A: No. Running a submersible slurry pump dry is extremely damaging. The motor relies on the surrounding fluid for cooling, and the seals require lubrication from the pumped medium. Dry running will lead to overheating and seal failure.
A: The primary difference is in their construction. Slurry pumps are built with heavy-duty, wear-resistant materials to handle abrasive solids. Water pumps are designed for clear fluids and would quickly fail if used to pump slurry.
A: This varies by model. The KBS series, for example, can operate at a maximum submersion depth of 15 meters. High-pressure models are available for deeper applications, sometimes exceeding 100 meters.
A: The best way to prevent clogging is to use a pump with an agitator, like the KBS series, which breaks up settled solids. Additionally, ensure the suction strainer is clear and the slurry is properly agitated before pumping. Avoid pumping large, foreign objects.
A: The lifespan depends heavily on the application and maintenance. In a moderately abrasive environment with proper care, a pump can last 5-10 years. In highly abrasive mining applications, major components may need to be replaced every 1-2 years.
In conclusion, the submersible slurry pump is a marvel of engineering, designed to thrive in the harshest of environments. By understanding its principles, components, and proper care, you can ensure that this critical piece of equipment delivers reliable service for years to come. Whether you are in mining, construction, or environmental management, choosing the right slurry pump is an investment in efficiency, productivity, and peace of mind.
For high-quality, durable, and energy-efficient submersible slurry pump systems, it’s worth exploring the solutions offered by Shanghai People Enterprise Group Pump Co., Ltd..The company provides a wide range of professional-grade pumping equipment and engineering support to ensure optimal performance and long service life. Interested buyers and project managers can reach out to their technical team for customized consultation or assistance with pump selection and installation.
