RS Series Centrifugal Pump


Availability:

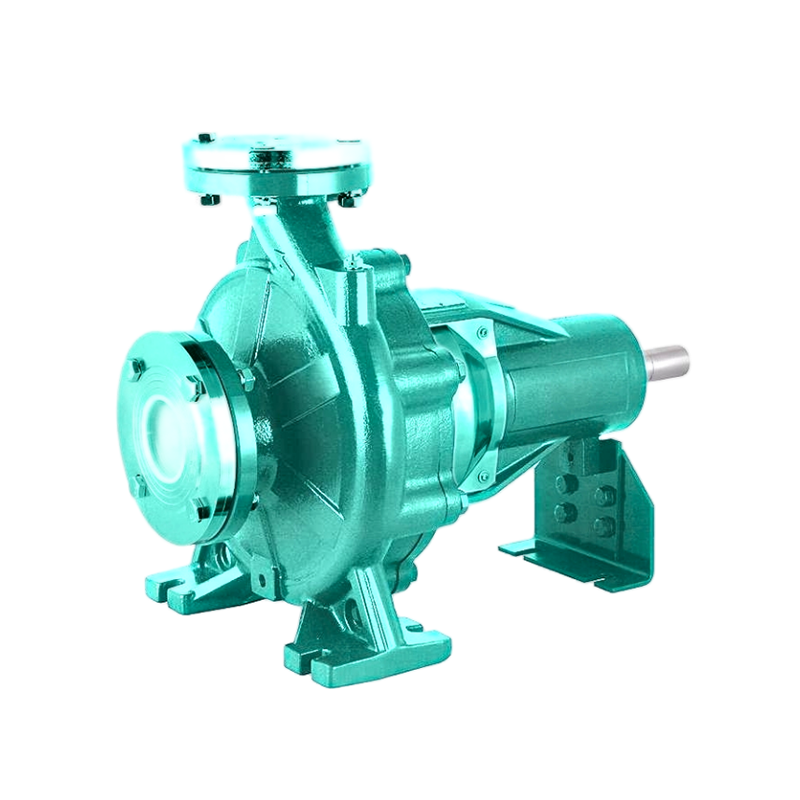

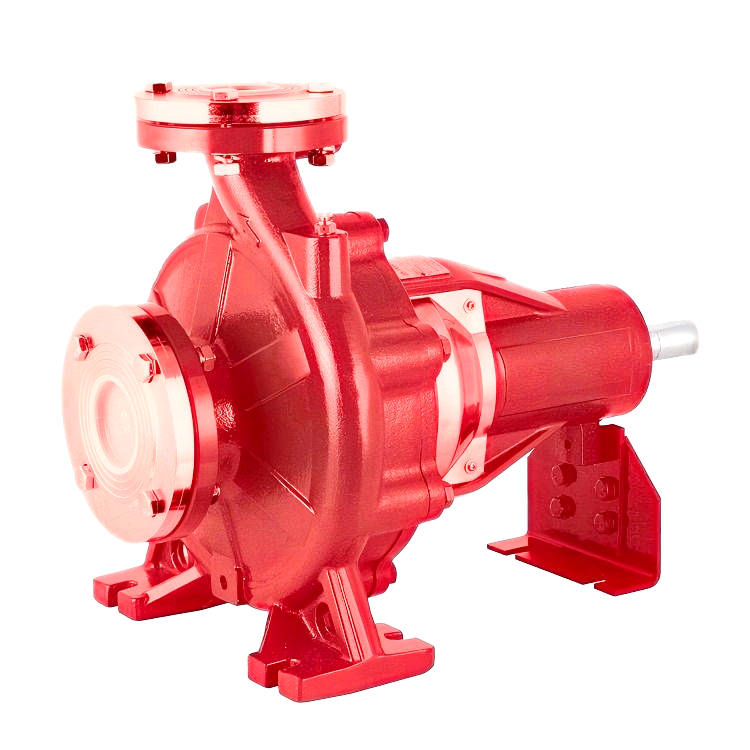

The RS series End Suction Pump is centrifugal pump. It can be used in series or parallel configurations to meet head and flow requirements.
This electric pump consists of three main components: the motor, mechanical seal, and water pump. The motor is a single-phase or three-phase asynchronous motor. A mechanical seal is used between the pump and the motor.

Model:
RS
Brand:
SRM

Product Description

PDF Download

The pump rotor shaft is made of high-quality carbon steel and undergoes anti-corrosion treatment to ensure reliable mechanical strength, effectively improving wear and corrosion resistance. This design also facilitates impeller maintenance and disassembly.

DN Range of Suction Pipe: 50-300 mm (2"-12");
DN Range of Discharing Pipe: 32-250 mm (1.5"-10");
Flow Capacity Range: 0-1500m3/h;
Head/Pressure Range: 0-164 m;
Power Range: 0.75-315 Kw

Product Advantage

It features a compact structure, small size, sleek appearance, minimal installation footprint, stable operation, long service life, high efficiency, low energy consumption, and easy maintenance., and used often for fire pump sets.

Technical Parameters

Liquid temperature between -10℃ and +120℃Ambient temperature up to +50℃
Max. working pressure 16 bar
Continuous service S1

Options on Request

Special mechanical seal

Other voltages or frequency 60 Hz

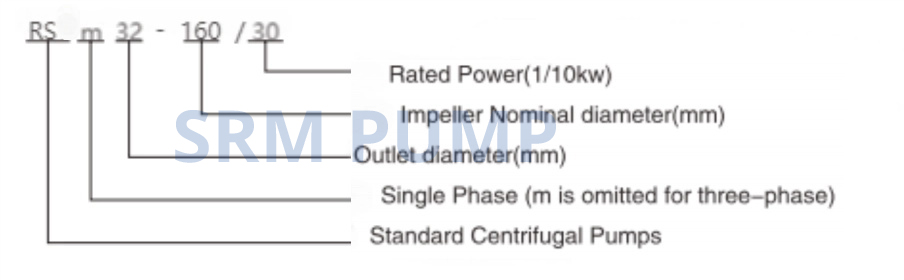

Model Optional

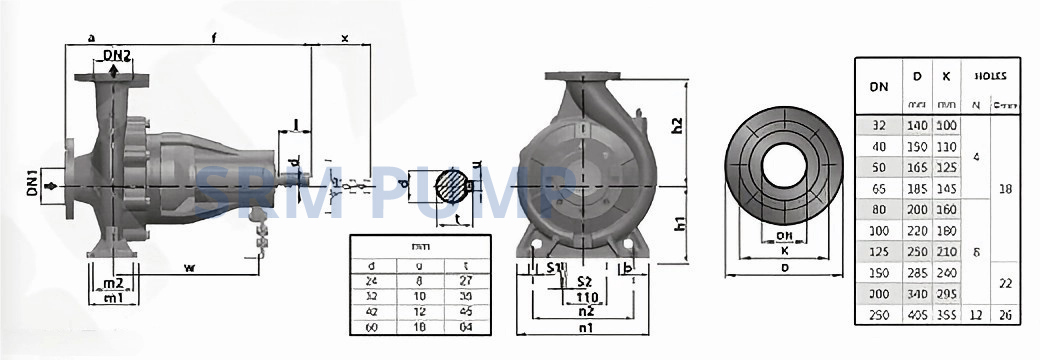

Model	Power		Performance		Ports	Impeller	Weight	Dim
Model	(kw)	(hp)	Q m³/h	H m	(mm)	Impeller	(kg)	cbm
RS 32-160/15	1.5	2	15.5	21	50×32	SS304	31	0.035
RS 32-160/22	2.2	3	18.5	26	50×32	SS304	31	0.035
RS 32-160/30	3	4	19.5	28	50×32	SS304	31	0.035
RS 32-200/30	3	4	19.5	30	50×32	SS304	35	0.043
RS 32-200/40	4	5.5	24	32	50×32	SS304	35	0.043
RS 32-250/55	5.5	7.5	15	47	50×32	Cast iron	55	0.068
RS 32-250/75	7.5	10	15	55	50×32	Cast iron	55	0.068
RS 32-250/110	11	15	15	82	50×32	Cast iron	55	0.068
RS 40-160/30	3	4	29	24	65×40	Cast iron	35	0.041
RS 40-160/40	4	5.5	35	29	65×40	Cast iron	35	0.041
RS 40-200/55	5.5	7.5	29	39	65×40	SS304	38	0.048
RS 40-200/75	7.5	10	35	46	65×40	SS304	38	0.048
RS 40-250/92	9.2	12.5	28	54	65×40	Cast iron	58	0.071
RS 40-250/110	11	15	31	60	65×40	Cast iron	58	0.071
RS 40-250/150	15	20	35	70	65×40	Cast iron	58	0.071
RS 50-125/22	2.2	3	50	12	65×50	Cast iron	35	0.044
RS 50-125/30	3	4	55	15	65×50	Cast iron	35	0.044
RS 50-125/40	4	5.5	60	18	65×50	Cast iron	35	0.044
RS 50-160/55	5.5	7.5	50	27	65×50	Cast iron	38	0.054
RS 50-160/75	7.5	10	60	32.5	65×50	Cast iron	38	0.054
RS 50-200/92	9.2	12.5	48	41	65×50	Cast iron	45	0.051
RS 50-200/110	11	15	60	45	65×50	Cast iron	45	0.051
RS 50-200/150	15	20	60	50	65×50	Cast iron	46	0.051
RS 50-250/150	15	20	50	60	65×50	Cast iron	50	0.071
RS 50-250/185	18.5	25	55	68	65×50	Cast iron	50	0.071
RS 50-250/220	22	30	60	75	65×50	Cast iron	50	0.071
RS 65-125/40	4	5.5	62	16	80×65	Cast iron	42	0.055
RS 65-125/55	5.5	7.5	74	19	80×65	Cast iron	42	0.055
RS 65-125/75	7.5	10	85	23	80×65	Cast iron	42	0.055
RS 65-160/92	9.2	12.5	62	30	80×65	Cast iron	45	0.060
RS 65-160/110	11	15	74	33	80×65	Cast iron	45	0.060
RS 65-160/150	15	20	85	38	80×65	Cast iron	45	0.060
RS 65-200/150	15	20	62	44	80×65	Cast iron	50	0.069
RS 65-200/185	18.5	25	74	50	80×65	Cast iron	50	0.069
RS 65-200/220	22	30	85	54	80×65	Cast iron	50	0.069
RS 65-250/220	22	30	62	60	80×65	Cast iron	71	0.106
RS 65-250/300	30	40	74	72	80×65	Cast iron	71	0.106
RS 65-250/370	37	50	85	83	80×65	Cast iron	71	0.106
RS 65-315/370	37	50	90	94	80×65	Cast iron	117	0.202
RS 65-315/450	45	60	108	102	80×65	Cast iron	118	0.202
RS 65-315/550	55	75	108	112	80×65	Cast iron	119	0.202
RS 65-315/750	75	100	114	130	80×65	Cast iron	120	0.202
RS 80-125/40	4	5.5	90	11.6	100×80	Cast iron	46	0.060
RS 80-125/55	5.5	7.5	90	16.5	100×80	Cast iron	46	0.060
RS 80-125/75	7.5	10	90	22.5	100×80	Cast iron	46	0.060
RS 80-160/110	11	15	130	22.5	100×80	Cast iron	48	0.089
RS 80-160/150	15	20	145	27	100×80	Cast iron	48	0.089
RS 80-160/185	18.5	25	160	31	100×80	Cast iron	48	0.089
RS 80-160/220	22	30	160	36	100×80	Cast iron	49	0.089
RS 80-200/220	22	30	130	42	100×80	Cast iron	65	0.106
RS 80-200/300	30	40	160	50	100×80	Cast iron	65	0.106
RS 80-250/370	37	50	130	63	100×80	Cast iron	79	0.143
RS 80-250/450	45	60	145	70	100×80	Cast iron	79	0.143
RS 80-250/550	55	75	160	82	100×80	Cast iron	79	0.143
RS 80-315/450	45	60	144	78	100×80	Cast iron	127	0.217
RS 80-315/550	55	75	144	91	100×80	Cast iron	128	0.217
RS 80-315/750	75	100	160	115	100×80	Cast iron	129	0.217
RS 80-315/900	90	120	170	130	100×80	Cast iron	130	0.217
RS 100-160/150	15	20	180	22	125×100	Cast iron	60	0.110
RS 100-160/185	18.5	25	180	27	125×100	Cast iron	60	0.110
RS 100-160/220	22	30	180	31	125×100	Cast iron	60	0.110
RS 100-200/220	22	30	150	41	125×100	Cast iron	75	0.135
RS 100-200/300	30	40	150	47	125×100	Cast iron	75	0.135
RS 100-200/370	37	50	150	53	125×100	Cast iron	75	0.135
RS 100-250/450	45	60	180	59	125×100	Cast iron	88	0.160
RS 100-250/550	55	75	180	71.5	125×100	Cast iron	88	0.160
RS 100-250/750	75	100	180	87	125×100	Cast iron	88	0.160
RS 100-315/550	55	75	200	74	125×100	Cast iron	157	0.261
RS 100-315/750	75	100	210	93.5	125×100	Cast iron	158	0.261
RS 100-315/900	90	120	225	110	125×100	Cast iron	159	0.261
RS 100-315/1100	110	150	225	130	125×100	Cast iron	160	0.261
RS 125-200/450	45	60	220	38.8	150×125	Cast iron	112	0.203
RS 125-200/550	55	75	220	48.8	150×125	Cast iron	113	0.203
RS 125-200/750	75	100	240	58	150×125	Cast iron	114	0.203
RS 125-250/550	55	75	210	62	150×125	Cast iron	142	0.226
RS 125-250/750	75	100	220	71	150×125	Cast iron	143	0.226
RS 125-250/900	90	120	280	74	150×125	Cast iron	144	0.226
RS 125-250/1100	110	150	280	84.6	150×125	Cast iron	145	0.226
RS 125-315/900	90	120	240	83.7	150×125	Cast iron	186	0.302
RS 125-315/1100	110	150	280	95	150×125	Cast iron	188	0.302
RS 125-315/1320	132	175	300	110	150×125	Cast iron	190	0.302
RS 125-315/1600	160	220	300	131	150×125	Cast iron	192	0.302
RS 150-200/750	75	100	350	46.8	200x150	Cast iron	166	0.318
RS 150-200/900	90	125	400	52.4	200x150	Cast iron	167	0.318
RS 150-200/1100	110	150	400	59.2	200x150	Cast iron	168	0.318
RS 150-250/1100	110	150	450	57.5	200x150	Cast iron	180	0.359
RS 150-250/1320	132	180	500	70.6	200x150	Cast iron	181	0.359
RS 150-250/1600	160	220	500	82	200x150	Cast iron	182	0.359
RS 150-315/1600	160	220	450	85	200x150	Cast iron	196	0.381
RS 150-315/2000	200	275	500	103.4	200x150	Cast iron	197	0.381
RS 150-315/2500	250	340	500	128.6	200x150	Cast iron	198	0.381

Product Uses

Here’s a polished and professional version of your text with improved formatting and clarity:

Suitable for clean water and liquids that are not chemically aggressive to the pump's construction materials.

EN733 centrifugal pumps are ideal for:

Water supply systems

Cleaning systems

Pressure boosting

Firefighting systems

Irrigation

Industrial applications

HVAC water circulation

Agricultural uses

Installation

1. The pump must be installed in a dry, cool, well-ventilated area where the ambient temperature does not drop below 0°C (frost-free). The diameter of the inlet pipe must not be smaller than that of the outlet pipe.

2. Before connecting the pump to the pipeline, verify the flow direction using the arrow marked on the pump casing. To ensure a sealed connection, install a rubber gasket or other sealing material between the flanges.

3. The installation site must provide sufficient space to ensure proper airflow and allow for future maintenance, disassembly, and servicing of the pump.

4. Isolation valves should be installed at the pump’s inlet and outlet to prevent system drainage during maintenance.

5. When installing the pipeline, ensure that the pump is not subjected to any pulling force from the piping.

6. The actual operating requirements of the pump must be fully considered, including its suction performance and pipeline pressure. Therefore, the inlet and discharge pipe diameters must be properly designed before installation.

7. The pump must not be installed at the lowest point of the system to avoid sediment accumulation.

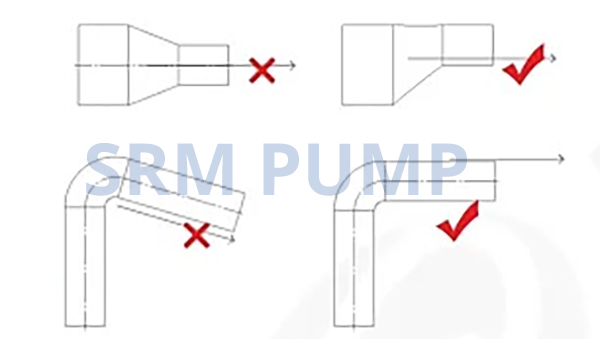

8. During pipeline installation, avoid cavitation, particularly at the pump’s inlet side.

Surface Centrifugal RS (1).pdf
