Ever turned the tap only to be greeted by a hollow sputter and the distinct, high-pitched whine of a motor spinning freely? Losing prime is a frustrating scenario for well owners and agricultural users alike. It is a situation that can quickly ruin expensive equipment.
Unlike submersible models, any surface pump drawing water from a lower source relies entirely on maintaining a solid, unbroken column of water. This column serves as the literal lifeline of the system. It creates the necessary conditions for fluid extraction. Often, the hidden culprit behind a dry-running system lies deep underwater. The integrity of the foot valve sealing is arguably the single most critical factor in ensuring your pumping equipment maintains its prime day in and day out.
The Prime is Everything: Surface pumping equipment cannot pump atmospheric air. It strictly requires a continuous, solid water column to create the necessary vacuum for operation and extraction.
The Foot Valve's Job: Acting as a heavy-duty, one-way check valve at the bottom of the well, it physically traps water inside the suction pipe the moment the motor turns off.
Seal Integrity: Even a microscopic leak in the valve's sealing mechanism allows water to drain back into the well over time, causing a total loss of prime.
Pump Protection: Proper sealing prevents cavitation, intense overheating, and premature mechanical failure of impellers and internal components.
Quick Troubleshooting: Frequent short-cycling, sputtering water at the tap, and a motor that refuses to shut off are primary, real-world indicators of a failing seal.
To truly grasp why a foot valve is so vital, one must first understand the mechanics of the system it supports. A surface pumping unit is defined by its installation location. It is anchored securely above ground, pulling water upward through a dedicated suction pipe.

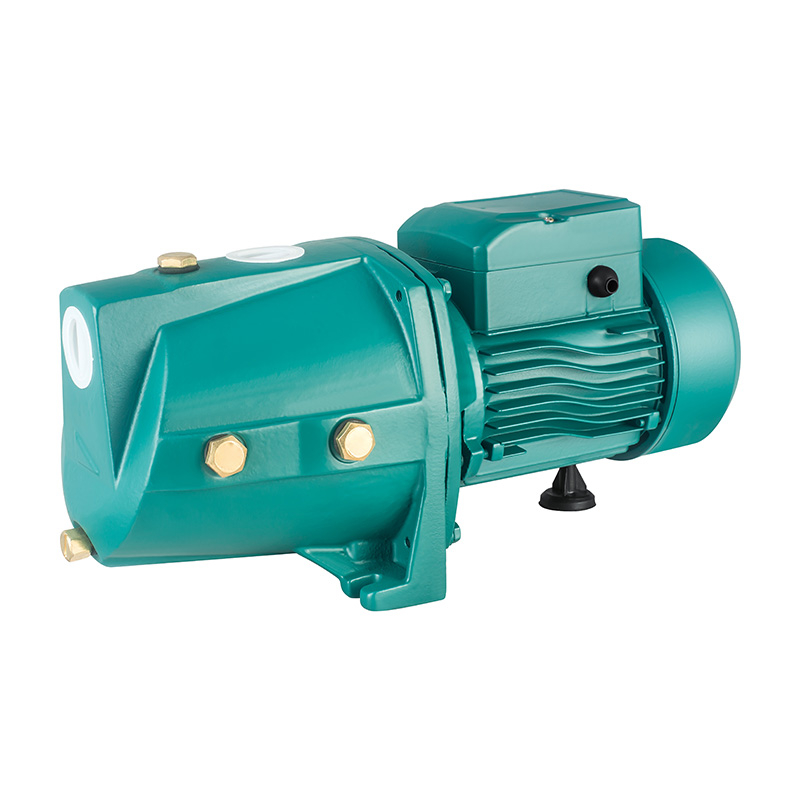

Specifically, a high-performance jet water pump like the JSW series is engineered to draw water from deeper underground sources, typically offering a robust suction lift of up to 9 meters. It achieves this by utilizing a standard impeller combined with an internal jet ejector assembly featuring a precision nozzle and a venturi tube. As fluid is forced through this narrow nozzle, its velocity spikes. This creates a low-pressure vacuum known as the Venturi effect, which is exactly what draws additional well water up into the household plumbing system.
Consequently, fluid dynamics dictate that these machines are engineered to move dense liquids, not light atmospheric gases. The internal mechanisms rely heavily on the centrifugal force generated by water spinning rapidly inside the volute casing.
If that casing is filled with air instead of water, the impeller simply churns the empty space. Because air lacks the mass required to generate sufficient centrifugal force, the system cannot push fluid out the discharge line. Furthermore, it cannot create the vacuum needed to pull fresh water up the drop pipe. Therefore, having initial water flooding the casing and the suction pipe—a state universally known as being primed—is an absolute, non-negotiable physical requirement.
Because surface-mounted systems constantly fight gravity to pull water upward, they require a mechanical assist. This keeps the water from plummeting back down when the motor powers off. A foot valve serves this exact purpose. It acts as a heavy-duty check valve installed at the lowest extremity of the suction drop pipe, completely submerged within the water source. In addition, these fixtures typically incorporate an integrated mesh strainer. This prevents rocks, aquatic vegetation, or large debris from entering the pipe and shattering the pump internals.
The operation of this component is entirely mechanical. It relies on a delicate balance of pressure differentials and gravity. When the system activates, the vacuum created by the impeller pulls water upward. This upward suction force lifts the internal poppet off its rubberized seat, allowing clear well water to rush freely into the plumbing.
In contrast, the moment the pumping cycle completes and the motor powers down, the suction instantly vanishes. Immediately, the immense physical weight of the vertical water column slams down on the valve. This downward pressure forces the poppet tightly against its seal with a heavy thud. This trapped vertical column is the lifeblood of the system. It keeps the setup fully primed and ready for the exact moment you open a tap inside the house.
The relationship between the submerged valve and the system's prime is absolute. While the motor generates the necessary suction, the foot valve sustains the hydraulic integrity during periods of rest. A flawless, watertight seal prevents the fluid in the drop pipe from slowly draining back into the earth. As long as this barrier holds, the suction line and the casing remain completely flooded. This guarantees immediate water pressure the next time the pressure switch engages.
When the sealing mechanism is compromised, a predictable and destructive sequence of failures occurs. First, a degraded rubber gasket allows a slow, silent trickle of water to escape back into the well. As the water level inside the pipe steadily drops, atmospheric air is drawn into the upper portions of the plumbing to fill the resulting void.
Eventually, when the system turns on, the impeller violently encounters pockets of air instead of solid water. The motor spins at thousands of RPMs but moves absolutely nothing. Left unchecked, the intense friction generated by this dry-running scenario will melt plastic diffusers, shatter mechanical seals, and ultimately burn out the electric motor.
Looking at recent industry trends in agricultural and domestic water management, there is a rapidly growing emphasis on system efficiency and smart diagnostics. Modern fluid dynamics engineers note that as variable frequency drive controllers become the global standard, the tolerance for mechanical inefficiencies has plummeted. A compromised foot valve does not just lose prime. It forces the pump into extended, energy-draining recovery cycles that often trigger dry-run fault codes on smart controllers. Consequently, the industry is witnessing a significant shift toward highly resilient, self-cleaning polymer seals and advanced anti-corrosive materials. These modern designs are specifically engineered to combat the microscopic leaks that traditionally plague older brass fittings.
There remains a persistent misconception regarding terminology. A reliable self priming centrifugal pump, such as the DK series, is brilliantly designed with an enlarged casing that retains a small reservoir of water. This allows it to evacuate moderate amounts of air from a suction line while maintaining a high head. However, it still strictly requires that initial housing to be filled with fluid to begin the evacuation process.
If a severely degraded foot valve allows gravity to pull the water out of the suction pipe completely, it will eventually siphon the water right out of the pump casing as well. Once that casing is bone dry, the self-priming mechanism is rendered entirely useless. This proves that no amount of advanced surface technology can outperform a failing seal.
Condition | Foot Valve Status | Pump Casing Status | Result on Startup |
|---|---|---|---|
Optimal | 100% Sealed | Flooded with water | Immediate water pressure |
Minor Leak | Slow drip / Partial seal | Partially filled with air | Sputtering water, delayed pressure |
Severe Leak | Failed seal | Empty / Dry | No pressure, motor overheating |
Most household systems operate based on strict parameters set by a mechanical pressure switch. If the submerged valve has a slow leak, the internal pressure will slowly bleed out, even when every faucet in the house is tightly closed. Once the pressure drops below the minimum threshold, such as 30 PSI, the switch triggers the motor to rebuild the lost pressure. The system shuts off, the fluid leaks out again, and the exhausting cycle repeats. This rapid short-cycling is a glaring indicator of a check valve failure.
The most severe and undeniable symptom of a failed seal is turning on your kitchen faucet and getting absolutely nothing, despite hearing the distinct hum of the motor running out in the pump house. This scenario confirms that the water column has completely dropped out of the line. The prime is gone, and the equipment is currently running dry.
Sometimes, a seal is only partially compromised. It might hold just enough water to allow the system to eventually catch its prime, but it will suck in large pockets of air during the struggle. When this compressed air reaches your household plumbing, it causes the taps to spit and sputter violently. You will notice alternating bursts of air and water shooting across the sink.
The most frequent cause of a compromised seal is simple physical interference. Wells naturally contain suspended sediment, fine sand, silt, or small pebbles. Even with a protective strainer attached, microscopic grit can slip through. If a single grain of hard sand gets trapped between the poppet and the rubber seating ring at the exact moment it closes, it prevents a flush closure. This creates a microscopic gap that silently drains the system overnight.
Over years of continuous operation, mechanical components inevitably degrade. The rubber or silicone gaskets used to create the watertight barrier can become brittle, crack, or warp due to temperature fluctuations and age. Furthermore, in regions with highly acidic water or high mineral content, brass and stainless steel components will corrode or develop heavy calcium scale buildup. This rough scale alters the smooth surface of the seat, making a perfect seal impossible.
Occasionally, these components fail prematurely due to human error during installation. If the fitting is threaded onto the drop pipe without adequate Teflon tape or pipe sealant, air and water will easily bypass the threads. Additionally, if the drop pipe is installed too deeply and rests directly in the mud at the bottom of the well casing, it will immediately suck up heavy abrasive sludge. This ruins the internal gasket on the very first cycle.
Before assuming the worst and pulling your well apart, systematic troubleshooting is required to isolate the exact cause. Disconnect the power supply. Open the priming port on the top of the casing and manually fill it to the brim with clean water. Seal the port tightly and restore power.
If the system immediately builds pressure and runs flawlessly while active, but completely loses pressure an hour after shutting off, you have confirmed that the plumbing cannot hold its water column. The culprit is definitively either a crack in the suction pipe above the water line or a failed seal below it.
To physically inspect the valve, the entire suction line must be extracted from the well. Depending on the depth of your dynamic water level and the material of the pipe, heaving a water-logged line out of a casing can be incredibly strenuous. It often requires a mechanical winch, a specialized puller, or multiple field technicians to safely extract without kinking the line.
Once exposed, inspect the strainer and the internal mechanism. If the flapper is simply propped open by a piece of gravel, cleaning it out might temporarily resolve the issue. However, from a practical maintenance standpoint, replacing the component entirely is highly recommended. The cost of a brand-new, high-quality fitting is negligible compared to the back-breaking labor required to pull the well pipe. Installing a fresh unit guarantees a perfect seal and protects your machinery from future dry-run damage.
While jet models are technically a sub-category of centrifugal technology, a standard centrifugal water pump lacks the jet ejector assembly. Because they rely solely on the spinning impeller, standard centrifugal units have very limited suction lift capabilities. They typically max out at 7 to 8 meters under perfect atmospheric conditions. They are highly sensitive to air intrusion and absolutely rely on a flawlessly sealed foot valve to maintain prime. Without it, they are entirely useless for drawing fluid from a lower source.
Another common solution for domestic and agricultural applications is the peripheral water pump, often referred to as a regenerative turbine pump. Units like the PM series utilize a specialized brass impeller with dozens of small radial vanes. This specific design makes them excellent for generating high discharge pressure at relatively low flow rates, alongside built-in anti-rust inserts to prevent blockages.
However, the extremely tight tolerances between the impeller and the casing make peripheral models exceptionally vulnerable to dry running and cavitation. Like standard centrifugal models, they require strict priming protocols. If a seal fails and a peripheral unit loses its prime, the lack of lubricating water causes rapid thermal expansion. This often leads the impeller to seize against the casing within minutes.
During installation or replacement, carefully measure the dynamic depth of the well. The intake should never rest directly on the floor. It must be suspended at least 2 to 5 feet above the bottom of the casing. This critical elevation keeps the suction point safely above the layer of abrasive silt and sludge that naturally accumulates at the bottom. It drastically reduces the amount of grit pulled into the delicate rubber seal.
If your water source is known to be highly sandy or turbid, consider installing an inline sand separator or a spin-down filter on the suction side. This is viable provided your equipment's suction lift capacity allows for the slight pressure drop. While the primary strainer catches large rocks, secondary filtration protects the finely machined impeller and prevents microscopic sand from settling back down onto the gasket when the motor turns off.
Develop a proactive habit of monitoring your system's operational cycles. Listen to how often the motor kicks on when no water is being consumed in the house. Check the gauge on your pressure tank. The needle should hold perfectly steady when the system is idle. Catching a slow, silent leak early allows you to address a failing seal long before it causes a catastrophic dry-run motor burnout.
Ultimately, a surface pumping system is only as reliable as the valve submerged at the bottom of the well. This surprisingly simple sealing mechanism is the critical barrier that holds the essential water column. It allows both jet and centrifugal technologies to perform their jobs effectively.
Without it, equipment quickly loses prime, leading to severe mechanical degradation and costly replacements. Proper installation and proactive maintenance are your best defenses against dry running. Never ignore a system that frequently short-cycles or drops pressure. Address leaking seals immediately to protect your investment.
If you are experiencing frequent priming issues or looking to upgrade your current setup, selecting the right equipment is crucial. Explore the high-performance solutions at SRM Pumps to find the perfect match for your specific requirements. Whether you need a robust jet model for deep extraction or a high-pressure peripheral unit, ensure you are utilizing top-tier machinery to guarantee a steady, reliable water supply for your home or agricultural needs.
Technically, yes, but only under very specific hydraulic conditions known as flooded suction. If the water source, such as an above-ground storage tank, is physically located higher than the pump's centerline, gravity constantly pushes fluid into the casing. In this scenario, gravity maintains the prime, rendering a bottom check valve unnecessary. However, if you are drawing water upward from a well or underground reservoir, a foot valve is absolutely mandatory to prevent the water column from dropping.
Under normal operating conditions, a healthy, perfectly sealed unit should hold a prime indefinitely. The internal mechanism is designed to create a watertight barrier under the static weight of the water column. The acceptable leak rate for a functional valve is zero. If you find that your system is losing prime overnight, or even over a period of several days, it is a definitive indicator that the seal is compromised and requires intervention.
No, it will not. While these specialized pumps can evacuate moderate amounts of air from a suction line, they still require their internal casing to remain full of water to initiate the process. A severely leaking seal at the bottom of the well will eventually drain the entire system, including the pump casing. Once dry, the self-priming feature cannot function, and the motor will simply overheat.
Both issues result in a frustrating loss of prime, but their operational symptoms differ. A cracked suction pipe located above the static water line will actively draw air into the system while the motor is running, causing visible air bubbles and sputtering taps. In contrast, a failing seal located underwater will not draw air while running. The system will appear to operate normally. The symptoms of a bad seal only appear after the motor shuts off, as the water silently drains back down the pipe.
Losing prime overnight is a classic symptom of a microscopic leak in your suction line. Most commonly, sediment has wedged itself into the foot valve seal, or the rubber gasket has aged and cracked. While the leak is too small to notice during active pumping, the hours of inactivity overnight provide enough time for the entire water column to drain back into the well.
The ideal material depends heavily on your local water quality. Traditional brass is durable but prone to scaling and corrosion in highly acidic or mineral-rich water. For modern installations, heavy-duty engineered polymers and stainless steel are becoming the standard. They resist scale buildup and corrosion, ensuring a flush seal and reliable prime retention over a much longer lifespan.
