Industrial pumps serve as critical foundational equipment across global manufacturing, municipal engineering, water conservancy, mining, and chemical industries, enabling the efficient transfer of liquids under diverse operating conditions. Among prominent pump manufacturers, Shanghai People Group Pump Co., Ltd. has earned a strong reputation for its SRM series industrial pumps, which are celebrated for exceptional stability, high energy efficiency, and long service life in harsh industrial environments. The superior performance of SRM pumps stems from a fully standardized production chain, cutting-edge manufacturing processes, stringent quality control protocols, and sustained investment in research and innovation. This article provides an in-depth exploration of the entire production lifecycle of SRM industrial pumps, dissecting core manufacturing techniques, quality assurance systems, R&D advancements, and addressing key industry questions to unveil the craftsmanship behind these high-performance industrial pumps.
The manufacturing of SRM industrial pumps follows a closed-loop, precision-driven production process that adheres to international industrial standards, covering five interconnected core stages: professional design and simulation, precision casting and blank forming, CNC precision machining, standardized assembly, and comprehensive performance testing. Each stage is strictly monitored to ensure every pump aligns with design specifications and global quality requirements.
The production starts with design and simulation optimization. The company's professional engineering team uses 3D CAD modeling and Computational Fluid Dynamics (CFD) simulation software to design pump casings, impellers, and flow channels. This stage focuses on optimizing hydraulic performance, reducing energy loss, and adapting structures to different application scenarios, such as centrifugal pumps for clean water transfer, submersible pumps for sewage treatment, and chemical pumps for corrosive liquid delivery. Simulation helps eliminate design defects before production and lowers processing errors.
Next is casting and blank forming. High-quality raw materials, including ductile cast iron, 304/316 stainless steel, and alloy steel, are selected based on working conditions. These materials are smelted, precision-cast, or forged to make blanks of key parts such as pump bodies, impellers, and shafts. Heat treatment including quenching and tempering is applied to improve hardness, wear resistance, and corrosion resistance, providing a strong material base for long-term operation.
The third stage is CNC precision machining. Blanks are processed on high-precision machining centers, automatic lathes, and milling machines. Tolerances of key matching surfaces are controlled to micrometer levels to ensure perfect fitting. This high precision reduces mechanical friction and leakage risks caused by size errors.

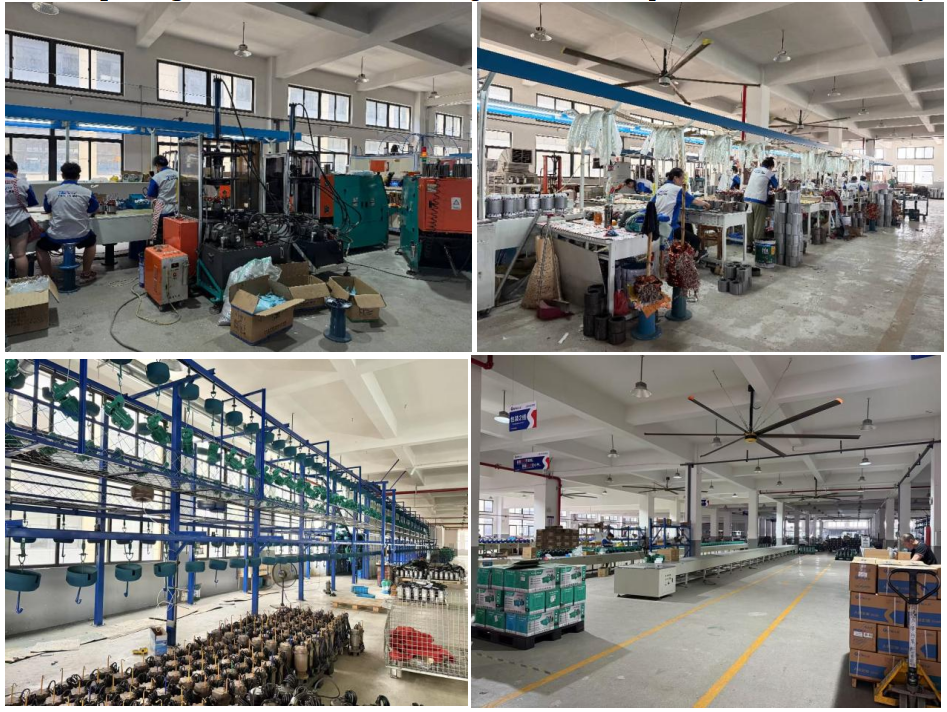

After machining comes standardized assembly in a dust-free, constant-temperature workshop. Technicians install bearings, mechanical seals, impellers, and motors step by step, with strict alignment and sealing checks. Special tools ensure consistent assembly quality for every unit.
Finally, every finished pump goes through full-performance testing on a professional test bench. Flow rate, head, inlet pressure, outlet pressure, unit efficiency, vibration, and noise are measured and recorded in detail. Only pumps that pass all tests are packaged and delivered, ensuring zero defective products leave the factory.
The advantages of SRM pumps come from three key processes that solve industry pain points: low hydraulic efficiency, vibration, and sealing failures.
The flow channel directly affects efficiency. SRM pumps use investment precision casting for impellers and casings instead of traditional sand casting. High-precision molds create smooth, integrated flow channels without burrs. Smooth surfaces reduce flow resistance, save energy, and improve efficiency. Dimensional consistency also avoids hydraulic imbalance, vibration, and noise.
Centrifugal pumps run at high speed, and rotor imbalance causes vibration, noise, and quick wear. SRM centrifugal pumps receive double-sided dynamic balance correction. The rotor is tested on an automatic dynamic balance machine, and unbalanced mass is adjusted by grinding or adding weights. Vibration is controlled below international standards. This process stabilizes operation, extends bearing and seal life by more than 30%, and lowers maintenance costs.
Submersible pumps work underwater for a long time, so motor sealing is critical. SRM submersible pumps use a multi-layer sealing system: double mechanical seals, corrosion-resistant gaskets, and IP68 waterproof junction boxes. Motor windings use special insulated and waterproof wires, and the motor chamber is filled with anti-corrosion insulation oil. Each pump undergoes a 24-hour waterproof pressure test to ensure no water enters the motor, even in deep water or sewage environments.
Shanghai People Group Pump Co., Ltd. has built a full-cycle quality control system covering incoming material inspection, process monitoring, semi-finished product testing, and finished product acceptance. The company's laboratory is equipped with international-standard test benches.
Performance Testing: Each pump is tested for flow, head, power, and efficiency. Test reports include outlet gauge distance, inlet pressure, and outlet pressure for full traceability.
NPSH Testing: Cavitation resistance is tested to ensure the pump can operate safely under low suction pressure without impeller damage.
Lifespan and Reliability Testing: Sampled pumps run continuously for 72 hours and undergo temperature and corrosion tests to simulate harsh working conditions.
SRM pumps hold major international certifications, including CE, ISO 9001, ISO 14001, and CCC. These certifications allow sales to more than 60 countries in Europe, Southeast Asia, Africa, and the Americas.
Innovation is the core driving force of the company. About 8% of annual revenue is invested in R&D. The company has a professional R&D center with CFD systems, automatic test benches, and material analysis equipment, staffed by experienced engineers.
The company develops energy-saving and intelligent products. Intelligent production lines and robotic assembly improve efficiency by 40%. The new generation of SRM high-efficiency pumps reduces energy consumption by 12% compared with traditional models. The company also provides customized solutions for high-pressure, anti-corrosive, and explosion-proof conditions.
With continuous innovation and quality improvement, SRM has become a leading brand of Chinese industrial pumps, widely used in water conservancy, chemical plants, and municipal water supply systems.
Q1: What materials are used for SRM industrial pumps?
A1: Ductile cast iron for general applications, 304/316 stainless steel for corrosive liquids, and high-strength alloy steel for heavy-duty mining pumps. These materials ensure wear resistance, corrosion resistance, and stability.
Q2: How does dynamic balance help SRM centrifugal pumps?
A2: It reduces vibration and noise, lowers wear on bearings and seals, extends service life by more than 30%, and meets international environmental standards.
Q3: Why is SRM submersible pump sealing more reliable?
A3: Double mechanical seals, IP68 junction boxes, insulated windings, and 24-hour pressure tests provide full protection against water ingress.
Q4: What is the difference between unit efficiency and pump efficiency?
A4: Pump efficiency refers to the hydraulic efficiency of the pump body. Unit efficiency is the total efficiency of the pump and motor system, showing the overall energy utilization rate.
Q5: Does SRM provide customized pumps?
A5: Yes. The R&D team can adjust parameters, materials, and structures for special working conditions such as high flow, high head, corrosion resistance, and explosion protection.
The production of SRM industrial pumps combines precision manufacturing, strict quality control, and continuous technological innovation. Every step from design and casting to testing and delivery shows the brand's pursuit of excellence. With a complete process, core technologies, a strict QC system, and strong R&D capabilities, SRM pumps are trusted by industrial customers worldwide. In the future, Shanghai People Group Pump Co., Ltd. will keep innovating and improving to provide more efficient, energy-saving, and reliable pumping solutions for global industry.
