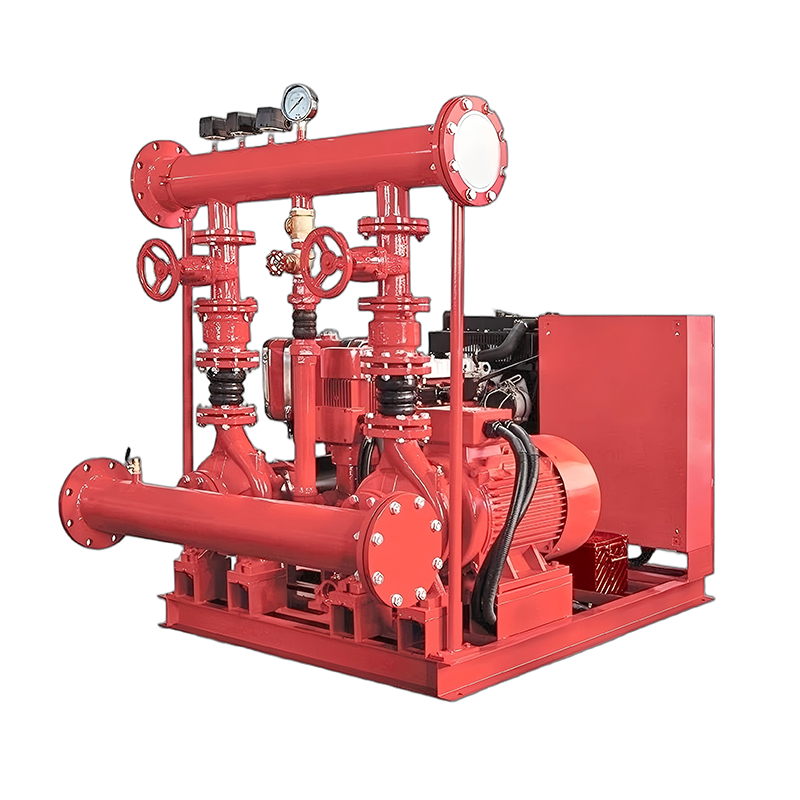

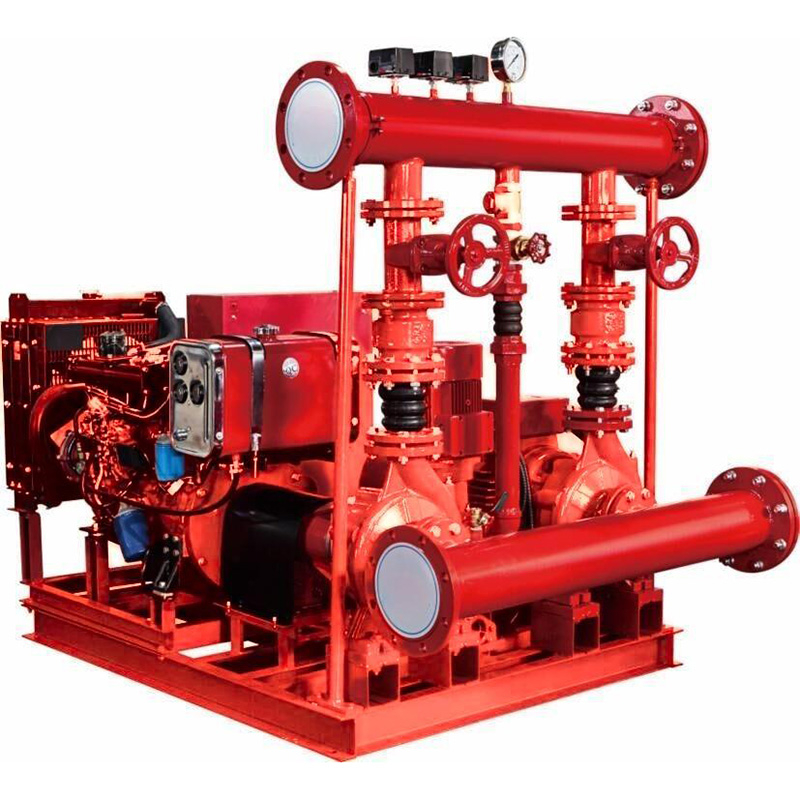

Firefighting System ZYW

This system is suitable for:

Directly drawing water from municipal pipe networks as a fire-fighting water source.

Combined domestic and fire-fighting water supply systems.

Applications with special requirements for fire water pressure, fire inspection, or other conditions.

Improving the actual effectiveness of fire-fighting water usage.

Product Advantage

System Composition

• Fire Pumps:

Main pump (electric/diesel-driven)

Backup pump (typically configured as "one operational, one standby")

• Control Panel:

Automatically/manually controls pump start/stop

Monitors operational status

• Piping & Valves:

Includes water supply pipelines, check valves, gate valves, pressure relief valves, etc.

• Pressure Stabilization Device:

Pressure maintenance pump & air pressure tank (keeps pipeline pressure constant, preventing frequent pump cycling)

• Water Source:

Fire water tank, reservoir, or municipal supply

Standard Applications:

Multi-story residential buildings

Multi-story commercial & industrial facilities

• Special Application:

High-Rise Buildings: Requires zoned water supply using multi-stage pumps or intermediate water tanks.

Large-Scale Complexes: May require multiple pump rooms with coordinated control.

Chemical Facilities: Equipped with explosion-proof pumps and corrosion-resistant materials.

Technical Parameters

• Flow Rate: 50–5000 GPM

• Head/Pressure: 5–17 bar (50–170 m)

• Operation & Control

Automatic Pump Switching: Seamless rotation among three pumps

Dual Control Mode: Manual & automatic operation available

Power Resilience: Operates even during power outages (diesel-driven option)

• Design & Customization

Flexible Configuration: Customizable size and pump group

Mounting Options: Multiple styles for easy installation

• Key Components & Durability

High-Efficiency Motor: IP55 protection, Class F insulation

Corrosion-Resistant Construction: Anti-corrosive pump casing coating

Premium Bearings & Seals: NSK bearings + wear-resistant mechanical seal

Quality Assurance

CE certified

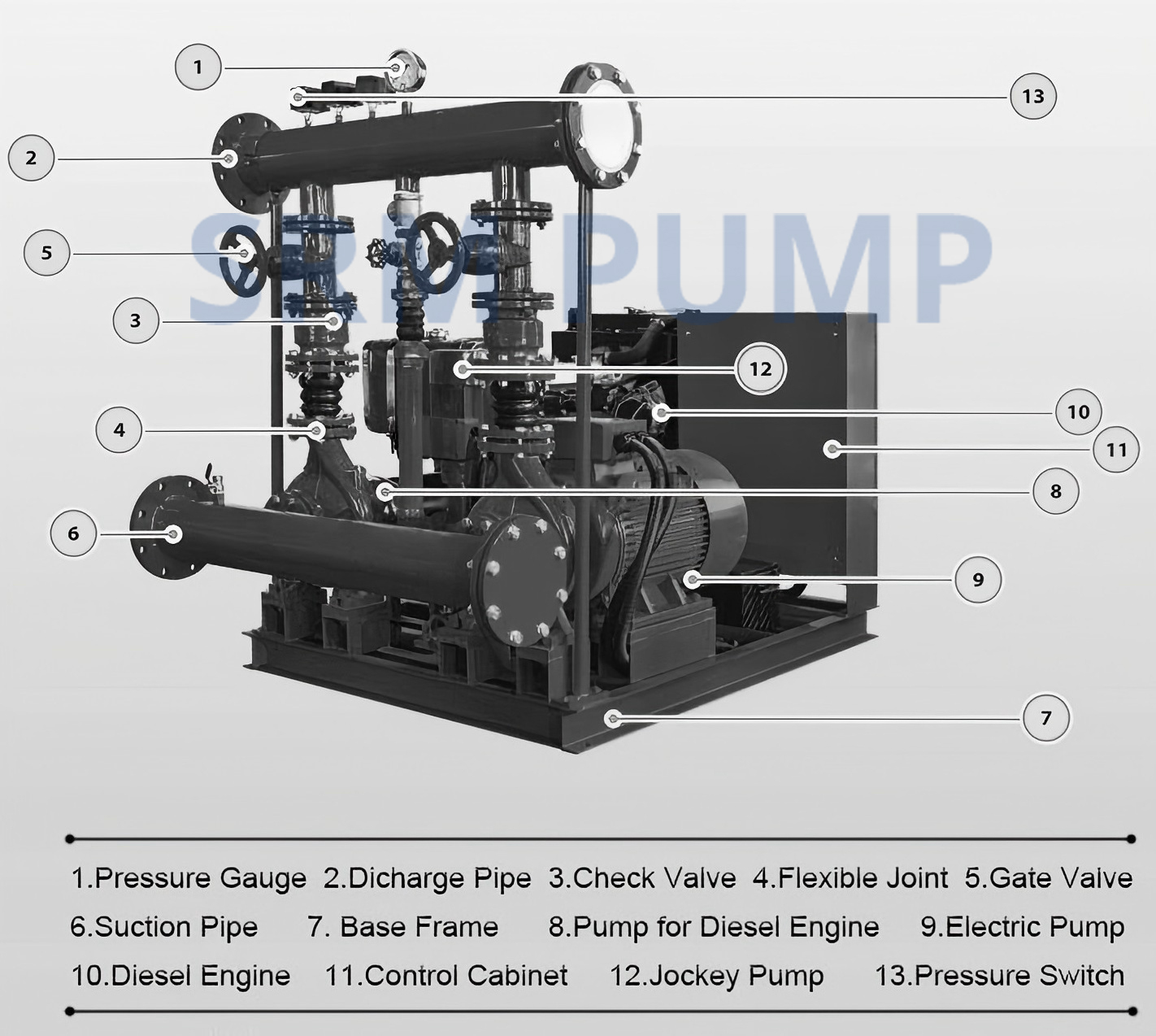

Structure

Optional Devices:

Pump for diesel engine

Diesel Engine

Electric Pump

Jokey Pump

Product Uses

• Standard Applications:

Commercial Buildings: Provides critical fire protection in offices, hotels, shopping malls, and industrial complexes.

Industrial Facilities: Safeguards manufacturing plants, warehouses, refineries, and chemical processing facilities.

Rural Areas: Supports fire suppression efforts in remote locations lacking reliable electrical infrastructure.

Public Infrastructure: Ensures safety in hospitals, schools, airports, and government buildings.

• Installation Instructions:

1. Install theoutlet pipe gate valve.

2. Mount thesupport rod.

3. Connect theoutlet pipe.

4. Install thepressure maintenance pump’s outlet pipeline.

5. Attach thepressure switch andpressure gauge.

6. Performsystem commissioning.
