Home / Products / Application / Civil/Commercial / Water Supply System RMWG

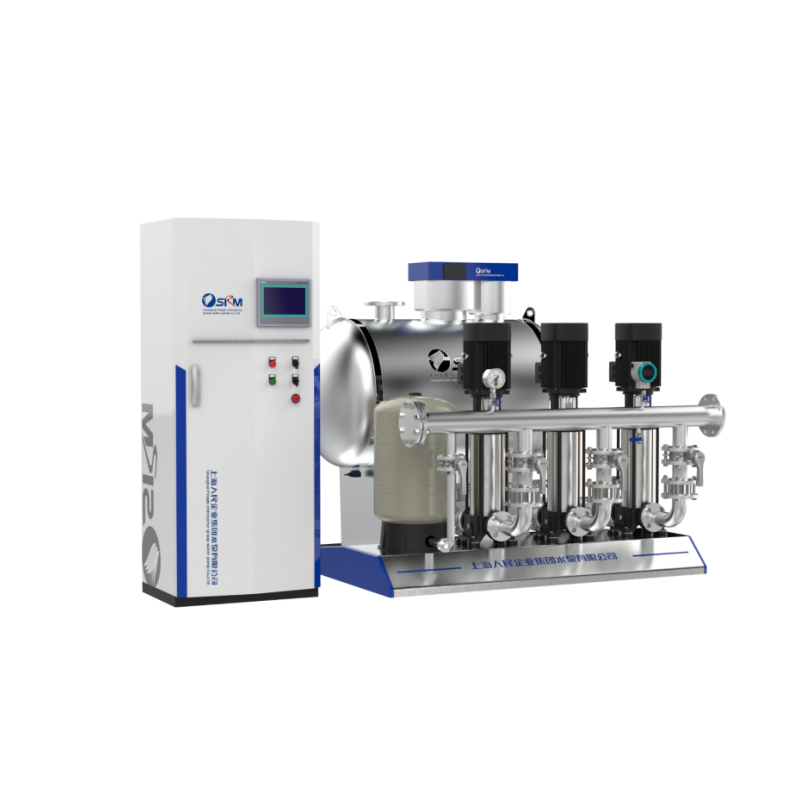

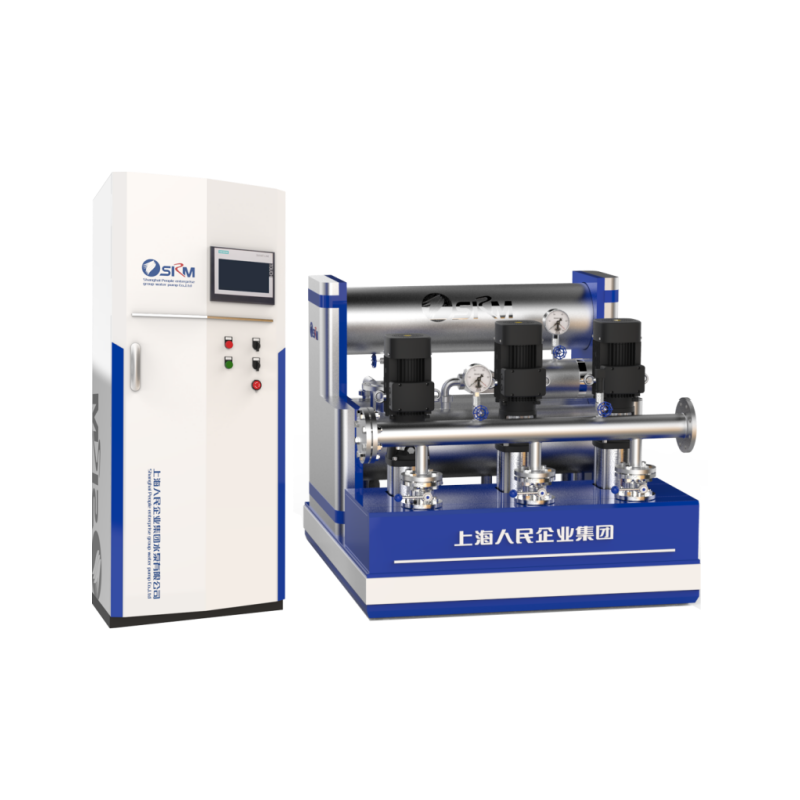

Water Supply System RMWG


Availability:

The BMWG series booster sets is a water pressure boosting system designed to store and pressurize water from municipal supplies or private water facilities, then distribute it through pipelines for user consumption or internal use.
The primary purpose of this series is to compensate for insufficient pressure in municipal water supply lines, ensuring stable water access for high-rise residential and commercial buildings.

Model:
RMWG
Brand:
SRM

Product Description

FAQ

A standard configuration typically includes:

1 to 4 booster pumps (vertical or horizontal)

Air pressure tank

Control unit

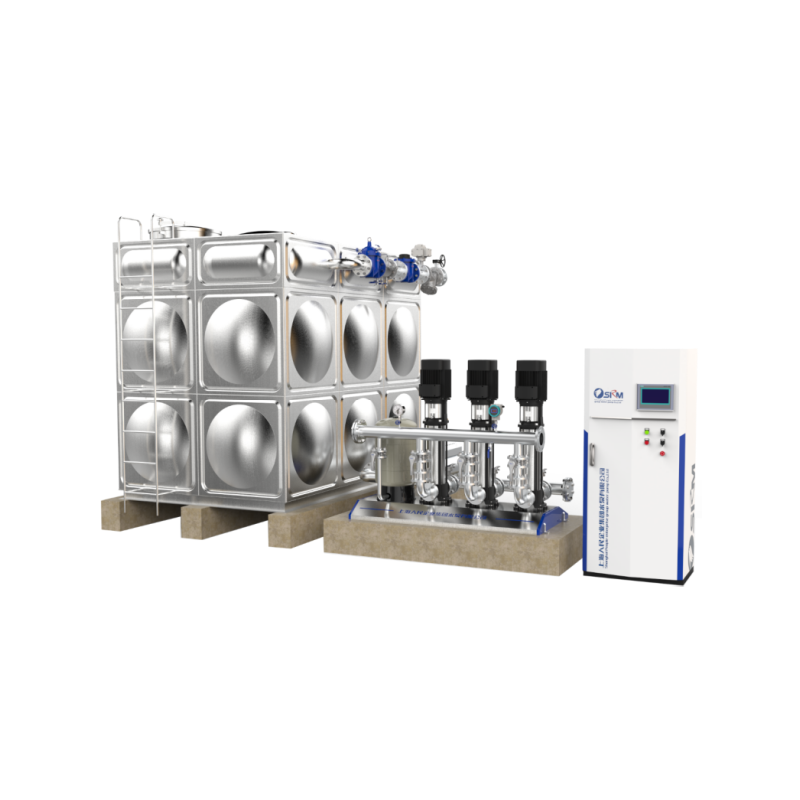

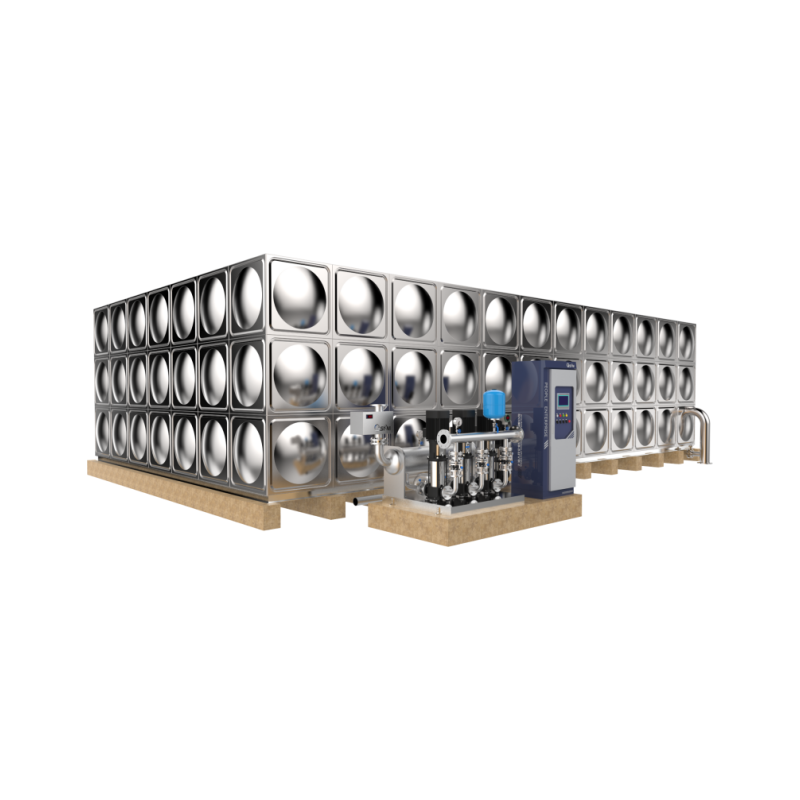

Some systems may also incorporate stainless steel water storage equipment, customized according to project requirements.

Product Advantage

Energy Efficiency:

Boosting Mode Saves 20-45% Energy

Bi-directional Compensation at Inlet/Outlet

Bus Communication & Fully Digital Frequency Conversion–Automatically identifies optimal operating range

Gradient Compensation–Ultra-long runtime at low flow rates during nighttime

Environmental Protection:

Food-Grade 304 Stainless Steel for wet components

Fully Sealed Operation–Zero external contamination

Safety Features:

Multi-Layer Import Protection–Ensures negative-pressure-free operation

Fully Automated Welding–Prevents leaks, drips, or seepage

Rapid Emergency Shutoff Response

Technical Parameters

Flow rate	up to 540 l/min (32.5 m³/h)
Head up	up to 100 m
Liquid temperature	between 0 °C and +40 °C
Ambient temperature	up to +40 °C
Max. pressure in the pump body	11 bar (7 bar for GP2W 5CR)
Power supply	Single-phase 1~230V Three-phase 3~400V
Motor	2 poles

Applications

Water supply systems,

Booster sets in high rise buildings and industry,

Water treatment systems,

Industrial facilities for process water,

Sanitary and cleaning installations,

Irrigation plants,

Fire extinguishing plants

FAQs

How to Select the Right booster sets?

1.Determine the flow rate (Q) and head (H), as well as the water source type, to select the correct pump and pump quantity.
2. If the system is intended for special scenarios such as high-rise buildings, large complexes, or extreme environments (extreme cold/heat), additional configurations must be incorporated based on specific conditions. In summary, a fire pump system is a critical safety device that requires professional selection, installation, and maintenance. We recommend consulting our experts for further assistance.
What Makes SRM Pumps Different?

With over 40 years of expertise in professional pump manufacturing, SRM Group—a Top 500 Enterprise in China—stands out for its:
Mature Production System – Rigorous quality control ensures reliable, high-performance pumps.
Customer-Centric Approach – We customize solutions to meet specific needs.
End-to-End Support – Beyond a 1-year warranty, we provide ongoing service assistance.
Choose SRM for durable, tailored pumping solutions backed by decades of industry leadership.
How to Purchase SRM Pumps?

Purchasing SRM pumps is simple:
Contact Us – Visit our website and reach out via:
Email Phone Social Media DM
(A dedicated representative will assist you promptly.)
Can I Use My Own Logo?

Custom Branding Option – We support OEM/ODM services and can produce pumps with your logo, provided you:
Own the trademark OR
Have authorization from the trademark owner.
