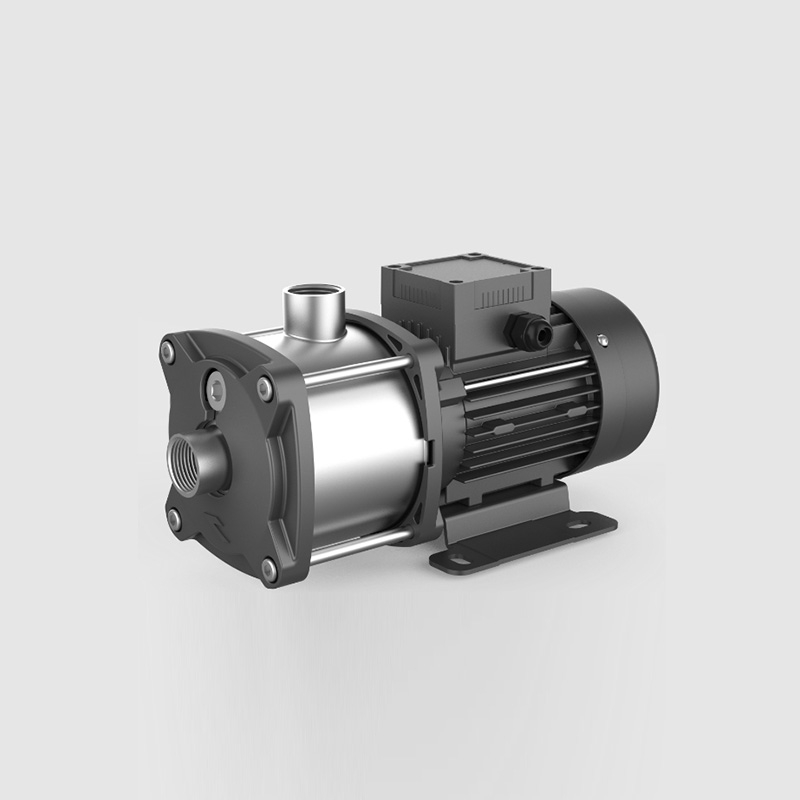

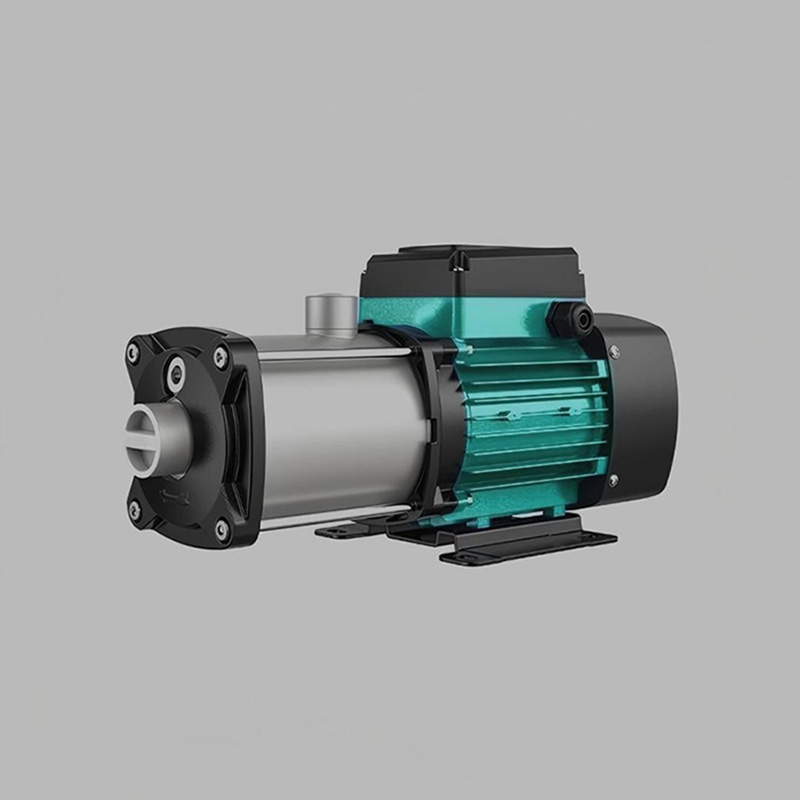

CHLF(T) Horizontal Multistage Centrifugal Pump


Availability:

CHL series multistage pump is horizontal multistage centrifugal pump,This product is a specialized equipment designed for residential central air conditioning circulation and industrial liquid transfer applications. It is primarily used for circulating and conveying liquids in household central air conditioning systems and industrial processes, including demineralized water, soft water, purification systems, light oils, and similar fluids.

Model:
CHLFT
Brand:
SRM

Product Description

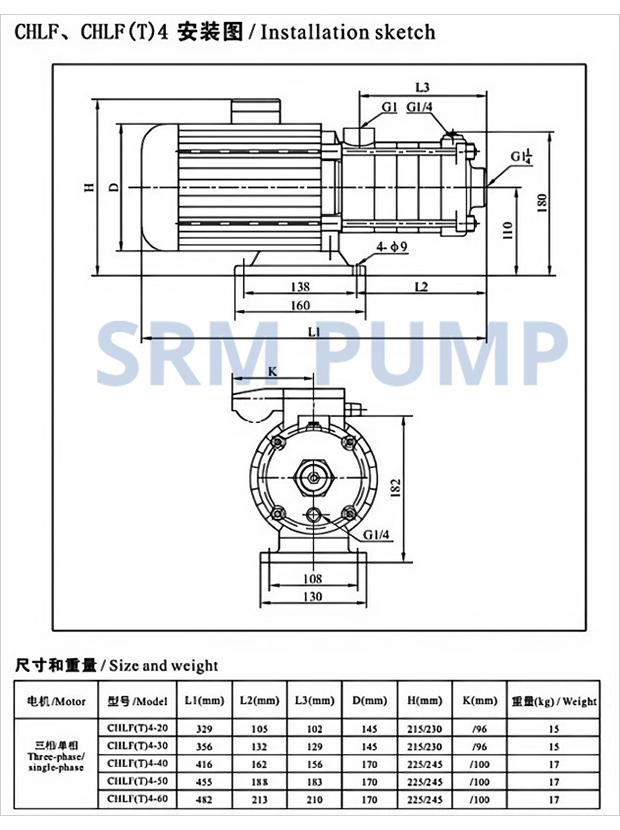

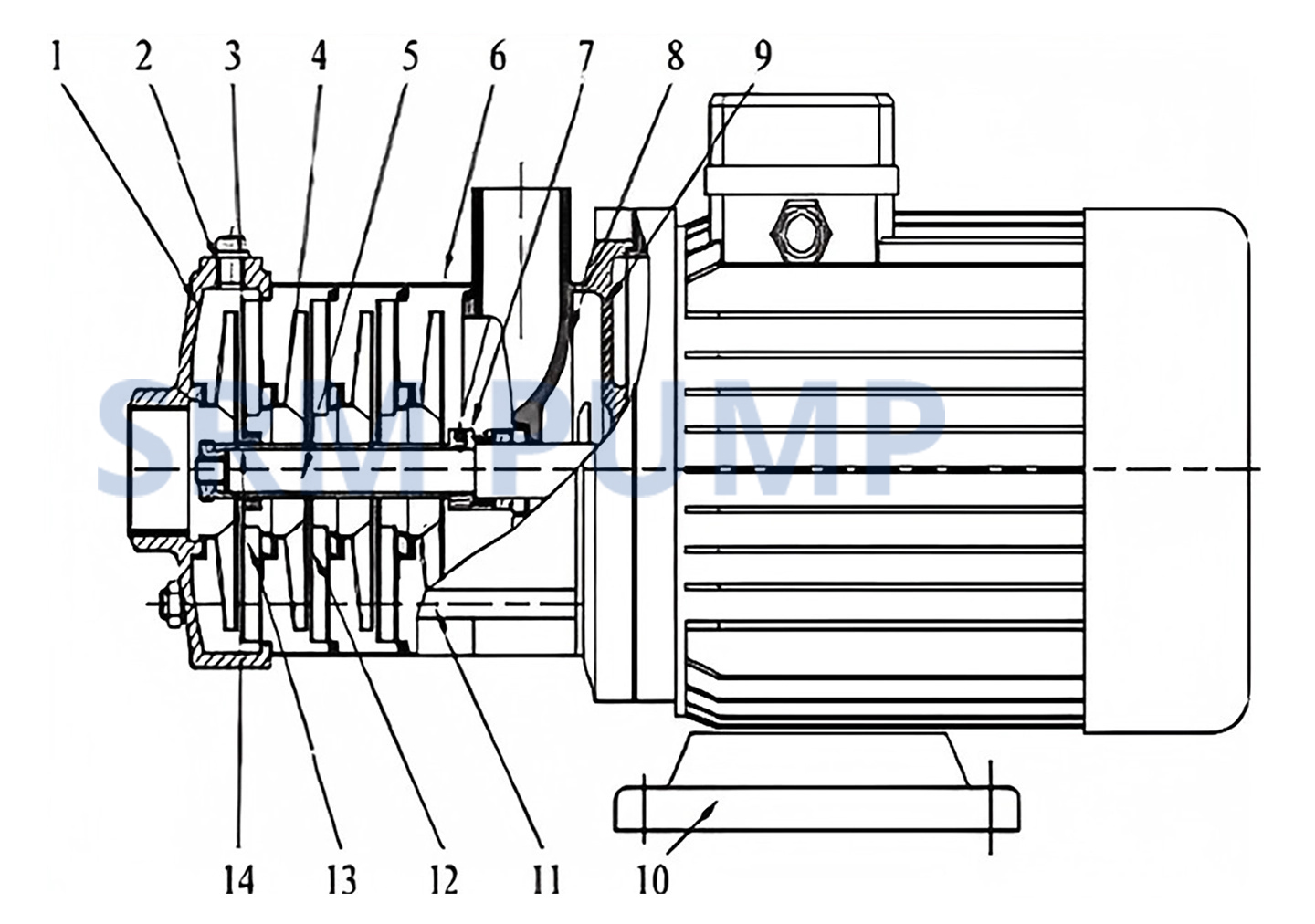

Exploded View

FAQ

Key Features

Maintenance-free mechanical seal for reduced upkeep

Stainless steel (304/316.wet components ensuring durability

Low-noise operation with compact, lightweight design

Corrosion-resistant construction for mildly corrosive media

Aesthetically pleasing appearance with long service life

The pump combines efficient performance with reliable operation, making it ideal for both residential and industrial fluid handling requirements.

Suitable Media

Thin, clean, non-solidifying, non-explosive liquids free of solid particles or fibers.

Liquid Temperature Range:

Standard Type: -15°C to +70°C

High-Temperature Type: +70°C to +110°C

Ambient Temperature: ≤+40°C

Operating Pressure: ≤10 bar

Inlet Pressure: Limited by operating pressure

pH Range: 4~9 (slightly acidic to alkaline media.

Symbols CHL 2 20

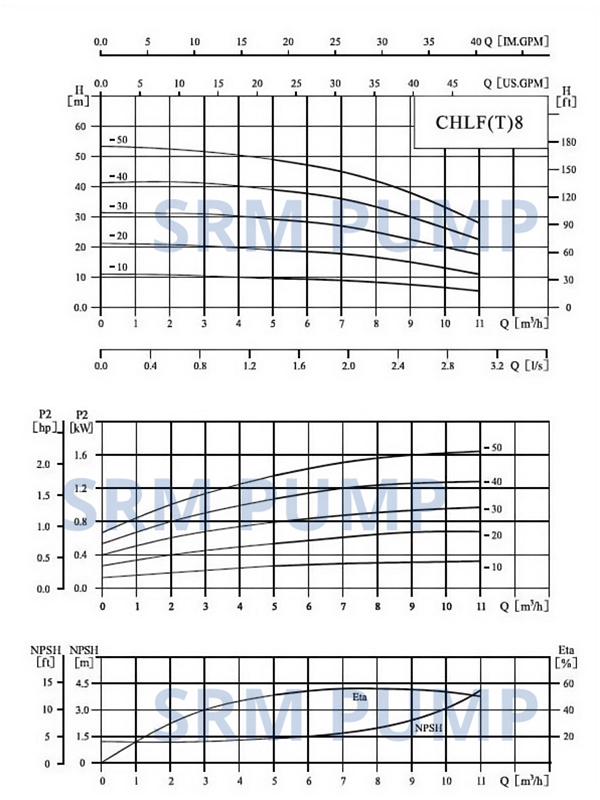

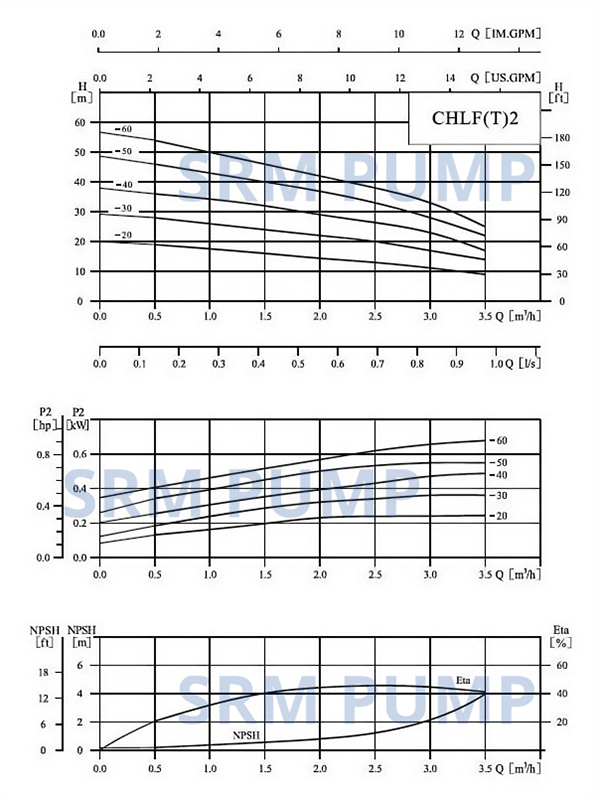

Performance Charter: 2900rpm

Performance Data

MODEL	HEAD(m)	FLOW(m3/h)	POWER(KW)	N(r/min)
CHL2-20	14	2	0.37	2900
CHL2-30	21	2	0.55	2900
CHL2-40	28	2	0.55	2900
CHL2-50	35	2	0.55	2900
CHL2-60	42	2	0.75	2900
CHL4-20	15	4	0.55	2900
CHL4-30	22	4	0.75	2900
CHL4-40	30	4	0.75	2900
CHL8-10	8.5	8	0.75	2900
CHL8-20	17	8	0.75	2900
CHL8-30	25.5	8	1.1	2900
CHL8-40	34	8	1.5	2900
CHL8-50	42.5	8	2.2	2900
CHL12-10	9.5	12	0.75	2900
CHL12-20	19.5	12	1.2	2900
CHL12-30	29.5	12	1.8	2900
CHL12-40	39.5	12	2.4	2900
CHL12-50	50	12	3	2900
CHL16-10	10	16	1.1	2900
CHL16-20	21	16	2.2	2900
CHL16-30	32	16	3	2900
CHL20-10	9.5	20	1.1	2900
CHL20-20	21	20	2.2	2900
CHL20-30	33	20	4	2900
CHLF(T)2-20	14	2	0.37	2900
CHLF(T)2-30	21	2	0.55	2900
CHLF(T)2-40	28	2	0.55	2900
CHLF(T)2-50	35	2	0.55	2900
CHLF(T)2-60	42	2	0.75	2900
CHLF(T)4-20	15	4	0.55	2900
CHLF(T)4-30	22	4	0.55	2900
CHLF(T)4-40	30	4	0.75	2900
CHLF(T)4-50	38	4	1.1	2900
CHLF(T)4-60	45	4	1.1	2900
CHLF(T)8-10	8.5	8	0.75	2900
CHLF(T)8-20	17	8	0.75	2900
CHLF(T)8-30	25.5	8	1.1	2900
CHLF(T)8-40	34	8	1.5	2900
CHLF(T)8-50	42.5	8	2.2	2900
CHLF(T)12-10	9.5	12	0.75	2900
CHLF(T)12-20	19.5	12	1.2	2900
CHLF(T)12-30	29.5	12	1.8	2900
CHLF(T)12-40	39.5	12	2.4	2900
CHLF(T)12-50	50	12	3	2900
CHLF(T)16-10	10	16	1.1	2900
CHLF(T)16-20	21	16	2.2	2900
CHLF(T)16-30	32	16	3	2900
CHLF(T)16-40	43	16	4	2900
CHLF(T)20-10	9.5	20	1.1	2900
CHLF(T)20-20	21	20	2.2	2900
CHLF(T)20-30	33	20	4	2900
CHLF(T)20-40	44.5	20	4.4	2900

Primary Applications

This product is designed for residential central air conditioning circulation and industrial fluid transfer, including:

Circulation and pressure boosting of demineralized water, softened water, purified water systems, light oils, etc.

Typical Use Cases

1. Residential central air conditioning circulation

2. Cooling systems

3. Industrial cleaning applications

4. Water treatment (purification systems.

5. Aquaculture operations

6. Fertilizer dosing/chemical metering systems

7. Environmental engineering applications

Key Features

Dual-purpose design for both household and industrial use

Compatible with various purified liquids and light oils

Ideal for circulation and pressure boosting requirements

2	Gag	Stainless steel
3	Bearing	Tungsten carblde
4	lmpeller	Stainless steel
5	Shaft	Stainless steel
6	Water-out guide vane	Stainless steel
8	Mechanlcal seal
9	Motor end cover	Aluminum alloy
10	Base frame	Cast Iron
11	Pull-rod	Stainless steel
12	Guide vane	Stainless steel
13	Support guide vane	Stainless steel
14	Impeller separating sleeve	Stainless steel
	CHLF
1	Water-in body	Stainless steel
7	Water-out body	Stainless steel
	CHLF(T)
1	Water-in body	Cast iron
7	Water-out body	Cast iron

FAQs

What media is this pump suitable for?

1. Thin, clean, non-flammable, and non-explosive fluids-Free of solid particles or fibers.
2. Purified liquids-Such as mineral water, softened water, purified water, light oils, and other mild chemical solutions.
3. Mildly corrosive media-The pump's stainless steel construction allows for handling slightly corrosive fluids.
(Note: The translation maintains technical accuracy while improving readability. Adjustments can be made for specific terminology preferences.)
What Makes SRM Pumps Different?

With over 40 years of expertise in professional pump manufacturing, SRM Group—a Top 500 Enterprise in China—stands out for its:
Mature Production System – Rigorous quality control ensures reliable, high-performance pumps.
Customer-Centric Approach – We customize solutions to meet specific needs.
End-to-End Support – Beyond a 1-year warranty, we provide ongoing service assistance.
Choose SRM for durable, tailored pumping solutions backed by decades of industry leadership.
