Have you ever wondered what makes pumps tick? Understanding pumps is crucial for efficient fluid movement in various sectors. Among the types, end suction and split casing pumps are prominent. In this post, you'll learn their differences, helping you choose the right pump for your needs.

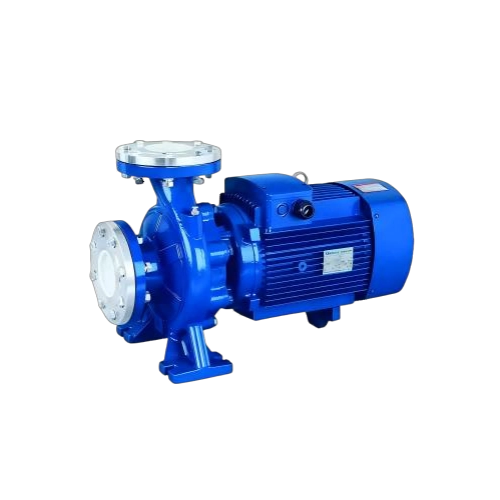

End suction pumps are a type of centrifugal pump where fluid enters the pump along a horizontal axis through a single suction port. The impeller, mounted on a shaft, rotates to draw the fluid into the pump casing. It then pushes the fluid outward through the discharge outlet positioned at a 90-degree angle to the suction inlet. This design creates a smooth flow path that efficiently moves liquids from one place to another.
The pump typically features a single-stage impeller, suitable for low to medium pressure applications. The fluid enters axially, gets accelerated by the impeller, and exits radially, which helps generate the desired pressure and flow rate.
Simple Design: End suction pumps have a straightforward construction, making them easy to install and maintain.
Horizontal Shaft Orientation: The shaft runs horizontally, allowing for easy access during maintenance.
Single Suction Inlet: Fluid is drawn from one side, simplifying the piping layout.
Compact Footprint: Compared to some other pump types, they occupy less space but more than inline pumps.
Cost-Effective: Their simple design leads to lower manufacturing and maintenance costs.
Versatile Material Options: Can be built from various materials to handle different liquids, including corrosive chemicals.
Low Net Positive Suction Head Required (NPSHr): This means they can operate effectively with lower suction pressure, reducing cavitation risk.
End suction pumps are widely used across industries due to their versatility and efficiency:
Industrial Sector: Common in chemical, petrochemical, and manufacturing plants for transferring water, chemicals, and process fluids. Their ability to handle fluids with small solid particles makes them suitable for wastewater and sewage treatment.
Water Treatment: Used for pumping clean water, feeding filtration systems, and distributing treated water.
Agriculture: Employed in irrigation systems to move water efficiently over large areas.
Food and Beverage: Hygienic versions transport liquids safely during processing, mixing, and filling operations.
HVAC Systems: Provide water circulation in heating and cooling systems, optimizing energy use.
Residential and Commercial: Often used for water supply, boosting pressure, and drainage tasks.
Their adaptability, ease of maintenance, and energy efficiency make them a preferred choice for many fluid transfer needs.
Note: When selecting an end suction pump, consider the fluid type, flow rate, pressure requirements, and environmental conditions to ensure optimal performance and longevity.
Split casing pumps are a type of centrifugal pump characterized by a casing that is split horizontally into two halves. This design allows easy access to the internal components, such as the impeller and shaft, without disturbing the pipe connections. The fluid enters the pump axially through the suction nozzle, passes through the impeller where it gains velocity and pressure, and then exits radially through the discharge nozzle.
The impeller is mounted on a shaft supported by bearings located outside the pump casing. The horizontal split casing design enables the pump to handle high flow rates and moderate to high pressures efficiently. Because the casing is divided into two parts, maintenance and inspection can be performed quickly, reducing downtime.
Horizontal Split Casing: The pump casing is split along a horizontal plane, allowing the upper half to be removed easily.
Robust Construction: Typically built with heavy-duty materials to withstand high pressures and demanding environments.
Double Volute Design: Many split casing pumps feature a double volute casing to balance radial forces and reduce bearing loads.
High Flow Capacity: Suitable for large volume fluid transfer with flow rates often exceeding those of end suction pumps.
Single or Multi-Stage Options: Available in configurations for varying pressure requirements.
Bearings and Shaft Outside Fluid Path: Bearings are accessible without opening the casing, enhancing serviceability.
Axial Suction and Radial Discharge: Fluid enters axially and exits at a right angle, similar to end suction pumps but on a larger scale.
Split casing pumps are widely used where large volumes of fluid need to be moved efficiently:
Water Supply and Distribution: Common in municipal water systems for pumping large quantities of clean water.
Industrial Processes: Used in power plants, chemical plants, and refineries for cooling water, boiler feed, and process water transfer.
HVAC Systems: Provide water circulation in large heating and cooling systems.
Irrigation: Suitable for large-scale agricultural irrigation requiring high flow rates.
Firefighting Systems: Often employed as fire pumps due to their reliability and capacity to deliver high flow at adequate pressures.
Wastewater Treatment: Handle large volumes of treated or untreated water, though typically not solids-heavy fluids.
Their robust design and ease of maintenance make split casing pumps ideal for continuous operation in demanding environments, especially where downtime is costly.
Note: The horizontal split casing design significantly reduces maintenance time and effort, making these pumps a practical choice for large-scale, high-volume fluid handling applications.
End suction pumps have a simple, straightforward design. Their casing is usually a single piece with a horizontal shaft. Fluid enters through a single suction inlet located at the front end of the pump. The impeller is mounted directly on the shaft inside the casing. When the impeller spins, it pulls liquid axially into the pump and pushes it radially out through the discharge outlet positioned at a 90-degree angle to the suction side.
The pump casing is typically volute-shaped, designed to convert velocity into pressure efficiently. The shaft is supported by bearings outside the fluid path, and the mechanical seal is located where the shaft enters the casing to prevent leaks. The compact design means fewer parts, which simplifies installation and maintenance.
Split casing pumps feature a robust design with a casing split horizontally into two halves: an upper and a lower half. This split allows easy access to internal components like the impeller, shaft, and bearings without disturbing the pipe connections. The shaft runs horizontally, supported by bearings placed outside the casing.
Inside, the impeller is mounted on the shaft and is often a double volute design, which balances radial forces and reduces wear on bearings. The suction and discharge nozzles are positioned on the casing, allowing axial fluid entry and radial discharge. The split casing design is typically larger and heavier, built to handle higher flow rates and pressures than end suction pumps.
The construction differences between these two pump types affect their performance and usability:
Maintenance: Split casing pumps allow easier maintenance due to the removable upper casing half. This reduces downtime since internal parts can be inspected or replaced without disconnecting the piping. End suction pumps require more disassembly, often involving pipe removal, to access internal components.
Flow Capacity: Split casing pumps generally handle higher flow rates and pressures thanks to their robust construction and multi-stage options. End suction pumps suit low to medium flow and pressure applications.
Footprint: End suction pumps have a smaller footprint, making them suitable for installations with limited space. Split casing pumps require more room but offer better serviceability.
Durability: The heavy-duty build of split casing pumps makes them ideal for continuous, demanding operations. End suction pumps are durable but better suited for less intensive applications.
Efficiency: Both pump types can be efficient, but split casing pumps often maintain performance better under high flow conditions due to their balanced design.
Understanding these construction distinctions helps in selecting the right pump for specific operational needs, balancing factors like maintenance ease, flow requirements, space constraints, and durability.
Tip: Choose split casing pumps for high-flow, continuous operations needing easy maintenance; select end suction pumps for simpler, space-saving setups with moderate flow and pressure needs.
End suction and split casing pumps both offer efficient fluid transfer, but their efficiency varies depending on the application. End suction pumps typically perform well in low to medium flow and pressure scenarios. Their simple design means less energy loss through friction and turbulence, often resulting in lower energy consumption for smaller systems.
Split casing pumps excel in high flow, moderate to high-pressure applications. Their double volute design balances radial forces, reducing bearing wear and improving mechanical efficiency. This design helps maintain efficiency even under heavy loads, making split casing pumps more energy-efficient for large-scale operations.
End suction pumps usually handle flow rates up to several hundred gallons per minute and pressures suitable for many industrial, agricultural, and commercial uses. Their single-stage impeller limits maximum pressure, so they are best for applications requiring moderate pressure and flow.
Split casing pumps can manage much higher flow rates, often thousands of gallons per minute, and can be designed for multi-stage operation to increase pressure. This makes them ideal for municipal water supply, large HVAC systems, and industrial processes needing substantial fluid volumes at higher pressures.
End suction pumps suit environments where space is limited and flow requirements are moderate. Their compact footprint fits well in smaller mechanical rooms or agricultural setups. They also handle fluids with small solids, making them versatile for wastewater or chemical processing.
Split casing pumps are better for environments demanding continuous, heavy-duty operation. Their robust construction withstands harsh conditions in power plants, refineries, and large municipal systems. The ease of maintenance reduces downtime, which is critical in these settings.
Tip: Select end suction pumps for smaller, energy-conscious applications; opt for split casing pumps when high flow, pressure, and easy maintenance are top priorities.
End suction pumps are known for their straightforward design, which makes maintenance relatively simple. Since the pump casing is a single piece and the shaft runs horizontally, technicians often need to disconnect piping to access internal parts like the impeller or mechanical seal. However, the compact design means fewer components to inspect or replace, reducing overall maintenance time.
Mechanical seals and bearings are generally easy to reach, but servicing may require removing the pump from the system in some cases. Close-coupled end suction pumps, where the impeller is directly mounted on the motor shaft, simplify installation but can complicate seal repairs because the motor must be separated from the pump.
Routine maintenance tasks such as lubrication, seal replacement, and impeller cleaning are typically quick and do not require specialized tools. This ease of service helps minimize downtime, especially in smaller operations or where space limits more complex pump designs.
Split casing pumps excel in maintenance convenience due to their horizontally split casing. The upper half of the casing can be removed without disconnecting suction or discharge piping. This design allows quick access to the impeller, shaft, and bearings, making inspection and repairs faster and less labor-intensive.
Bearings and seals are located outside the fluid path, so they can be serviced without exposing the pumped fluid. This reduces contamination risk and simplifies bearing replacement. The balanced double volute design reduces wear on bearings, contributing to longer service intervals.
Because split casing pumps are often used in continuous, heavy-duty applications, their design focuses on minimizing downtime. Maintenance teams appreciate the ability to perform major repairs or inspections without shutting down the entire piping system, which is critical in industrial or municipal settings.
When comparing costs, end suction pumps generally have lower initial purchase prices due to their simpler construction and smaller size. Installation costs are also lower since they require less space and fewer structural supports. Their maintenance expenses tend to be modest, especially for smaller units, making them cost-effective for moderate flow and pressure needs.
Split casing pumps have higher upfront costs owing to their robust build, larger size, and more complex casing design. Installation can be more expensive due to the need for additional space and support structures. However, their maintenance costs may be lower over time because of easier access and reduced downtime during repairs.
In large-scale or continuous operation environments, the reduced downtime and longer service intervals of split casing pumps can offset their higher initial investment. Conversely, for smaller or less demanding applications, end suction pumps provide economical performance with manageable maintenance costs.
Tip: Prioritize split casing pumps in large, continuous operations to reduce downtime and maintenance costs; choose end suction pumps for smaller systems where low initial and upkeep costs matter most.
End suction pumps offer several benefits that make them popular in many applications:
Low Cost: Their simple design and fewer components keep manufacturing and purchase costs down.
Easy Installation: Compact size and straightforward piping connections simplify setup.
Simple Maintenance: Fewer parts and easy access to mechanical seals and bearings speed up repairs.
Versatility: Suitable for various fluids, including corrosive and slightly solids-laden liquids.
Compact Footprint: Requires less floor space than split casing pumps, ideal for limited-space installations.
Energy Efficiency: Performs well in low to medium flow and pressure scenarios, reducing energy consumption.
Wide Availability: Common design means many options and parts are readily accessible.
Despite their advantages, end suction pumps have some limitations:
Limited Flow Capacity: Generally handle lower flow rates compared to split casing pumps.
Pressure Restrictions: Single-stage impeller limits maximum achievable pressure.
Maintenance Requires Pipe Disconnection: Accessing internal parts often means disconnecting suction or discharge piping.
Larger Footprint than Inline Pumps: Though compact, they occupy more space than inline designs.
Performance Sensitivity: Efficiency can drop if Net Positive Suction Head Required (NPSHr) is not met, risking cavitation.
Not Ideal for Continuous Heavy-Duty Use: Less robust for large-scale, high-flow operations.
Split casing pumps excel in demanding environments due to their design:
Easy Maintenance: Horizontal split casing allows removal of the upper half without disturbing pipe connections.
High Flow Rates: Designed for large volume pumping, often handling thousands of gallons per minute.
Multi-Stage Options: Can be configured for higher pressures by adding stages.
Robust Construction: Heavy-duty materials withstand harsh conditions and continuous operation.
Balanced Radial Forces: Double volute design reduces bearing wear, extending pump life.
Bearings Outside Fluid Path: Simplifies bearing and seal replacement, reducing contamination risk.
Reduced Downtime: Quick inspection and repair capabilities minimize operational interruptions.
The benefits come with some trade-offs:
Higher Initial Cost: More complex construction and larger size increase purchase price.
Larger Footprint: Requires more installation space and structural support.
Heavier Weight: Installation and handling demand more effort and equipment.
Maintenance Cost: While easier, maintenance may require specialized skills due to pump size.
Not Suitable for Solids-Laden Fluids: Typically less tolerant of fluids containing solids compared to end suction pumps.
Tip: Choose end suction pumps for cost-effective, moderate flow needs and limited space; opt for split casing pumps when high flow, easy maintenance, and durability are priorities in large-scale operations.
Selecting between an end suction and a split casing pump depends on several critical factors:
Flow Rate and Pressure Requirements: For moderate flow and pressure, end suction pumps usually suffice. For high flow rates or higher pressures, split casing pumps are better suited.
Space Availability: End suction pumps have a smaller footprint, ideal for tight spaces. Split casing pumps require more room due to their size and construction.
Maintenance Accessibility: If quick, easy maintenance is a priority, split casing pumps offer advantages thanks to their horizontally split casing. End suction pumps may require pipe disconnection during servicing.
Fluid Characteristics: End suction pumps can handle fluids with small solids better. Split casing pumps are generally used for cleaner liquids.
Budget Constraints: End suction pumps typically have lower upfront costs and simpler installation. Split casing pumps cost more initially but can save money long-term through reduced downtime.
Operational Environment: Continuous, heavy-duty operations benefit from the durability and serviceability of split casing pumps. For intermittent or lighter use, end suction pumps work well.
Energy Efficiency Needs: Both pump types can be efficient if properly selected, but split casing pumps often maintain efficiency better at high flows.
Municipal Water Systems: Split casing pumps excel due to high volume needs and continuous operation.
Industrial Process Water: Choose split casing pumps for large plants requiring high flow and durability.
Agricultural Irrigation: End suction pumps offer cost-effective, energy-efficient water transfer for moderate flow.
HVAC Systems: Smaller HVAC setups may use end suction pumps; large systems benefit from split casing pumps.
Wastewater Treatment: End suction pumps handle solids-laden fluids better, making them common in this sector.
Firefighting Systems: Split casing pumps provide reliable high flow and pressure essential for fire safety.
Consulting pump manufacturers or distributors can help tailor pump selection to your specific needs. Experts consider all operational parameters, including fluid type, system layout, and future scalability. Utilizing pump performance curves and software tools also aids in precise matching.
Regular maintenance planning and understanding lifecycle costs ensure you choose a pump that balances upfront investment with long-term reliability and efficiency. Industry standards and certifications may also influence your choice, especially in regulated sectors.
Tip: Evaluate your system’s flow, pressure, space, and maintenance needs carefully before choosing; consulting pump experts ensures optimal pump performance and cost-effectiveness.
End suction pumps are compact, cost-effective, and suitable for moderate flow and pressure. Split casing pumps handle higher flow rates and pressures with easier maintenance. Consider flow, space, and maintenance needs when selecting a pump. Consulting professionals ensures optimal performance. SRMPUMP offers innovative solutions tailored to your needs, providing reliable and efficient fluid transfer options.
A: An End Suction Pump is a type of centrifugal pump where fluid enters horizontally through a single suction port and exits at a 90-degree angle, suitable for low to medium pressure applications.
A: End Suction Pumps require disconnection of piping for maintenance, while Split Casing Pumps allow easier access to components without disturbing pipe connections.
A: Choose an End Suction Pump for cost-effective, space-saving solutions with moderate flow and pressure needs, ideal for smaller installations.
A: End Suction Pumps generally have lower initial and maintenance costs due to their simple design and fewer components compared to Split Casing Pumps.
