In the evolving landscape of industrial and commercial infrastructure, the term "Smart Pump" is echoing far beyond the mechanical room. But what exactly transforms a simple fluid mover into an "intelligent" device?

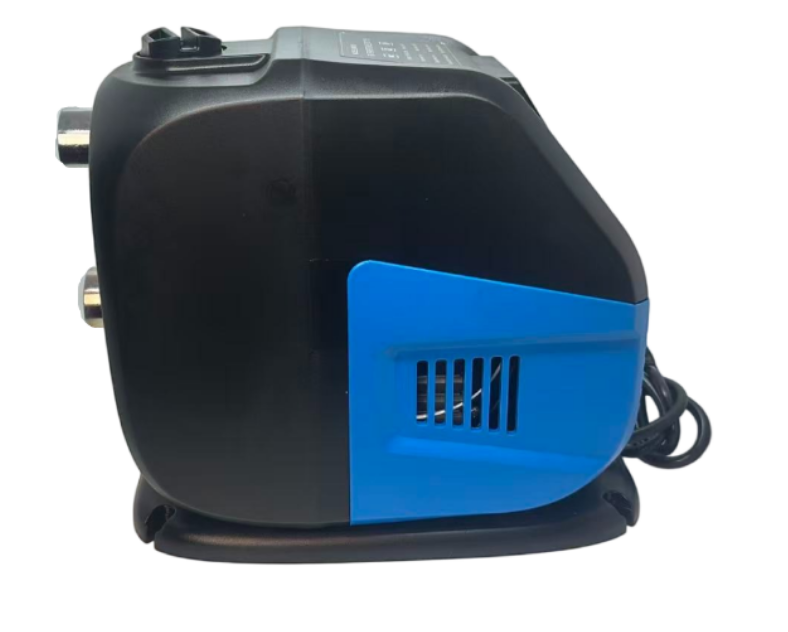

A Smart Pump is an integrated mechatronic system combining a hydraulic pump, a high-efficiency permanent magnet motor (PMM), and an embedded variable frequency drive (VFD) with advanced control logic. Unlike traditional pumps that run at constant speed, Smart Pumps adjust their performance in real-time based on system demand. They are the physical actuators of the Internet of Things (IoT) in fluid handling, capable of self-diagnosis, remote communication, and adaptive learning .
Smart Pumps operate on a closed-loop control principle. Traditional pumps push fluid at 100% speed regardless of need (like driving with your foot always on the gas pedal). A Smart Pump acts like cruise control with radar.
How it works:
1. Sensing: Internal sensors (or external pressure/ temperature transmitters) measure the system's current state.
2. Processing: The onboard microprocessor compares this reading to a setpoint (e.g., "maintain 60 PSI").
3. Action: The VFD adjusts the motor speed up or down. If demand drops, the pump slows down, reducing energy use and wear.
4. Communication: Real-time data (flow, pressure, vibration, kWh used) is sent to the BAS or Cloud.
Visual Workflow:
Demand Decreases (Valves close) → Pressure Increases → Sensor sends signal → Microprocessor calculates new speed → Motor slows down → Energy usage drops by 40%

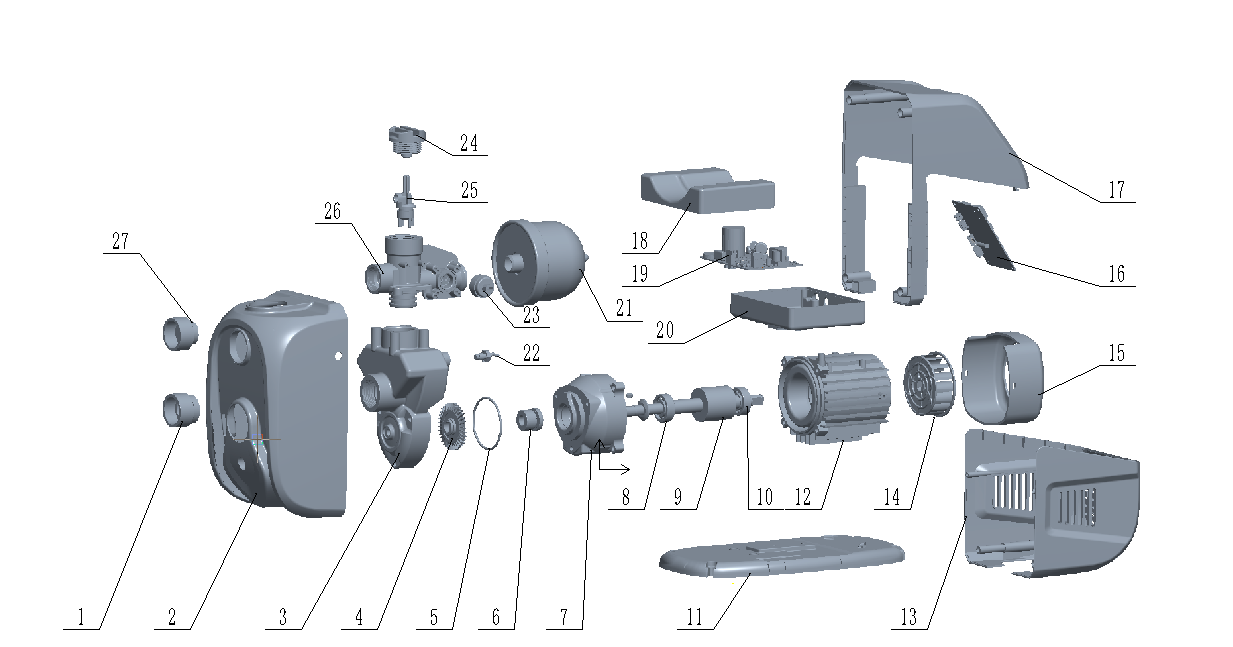

To ensure longevity in demanding environments, Smart Pumps are built around three integrated pillars:
· The Hydraulic Section (Wet End): Typically made of Cast Iron, Stainless Steel (SS316L) , or Bronze. High-end industrial pumps utilize SS316L for corrosion resistance in chemical or pharmaceutical applications .
· The High-Efficiency Motor: Unlike standard induction motors, Smart Pumps use Electronically Commutated Motors (ECM) or Permanent Magnet Synchronous Motors. These use rare-earth or ferrite magnets to achieve IE4/IE5 efficiency levels, significantly reducing heat loss .

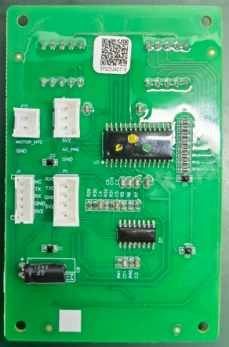

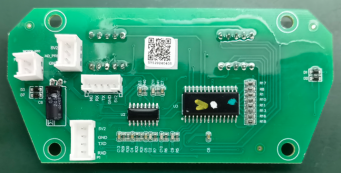

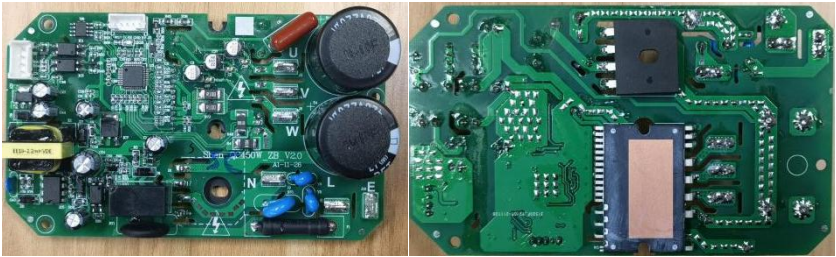

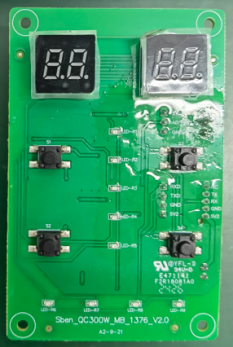

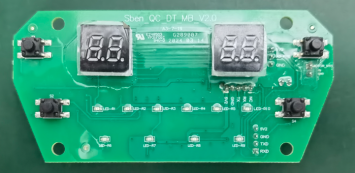

· The Integrated Controller (The Brain): This is the defining feature. It is not a separate box on the wall but is factory-mounted and pre-wired to the motor, featuring inputs for analog sensors (4-20mA) and digital communication protocols like BACnet, Modbus, or LON .
Smart Pump technology spans various hydraulic designs to fit specific applications:
· Smart Circulators (Wet Rotor): Small, maintenance-free pumps for heating and domestic hot water. They are often "delta-T" controlled, meaning they ramp up only when a temperature difference is detected .
· Smart End-Suction & Split-Case Pumps: Used in large HVAC and water supply. They feature "Design Envelope" technology, where the pump learns the system curve over time .

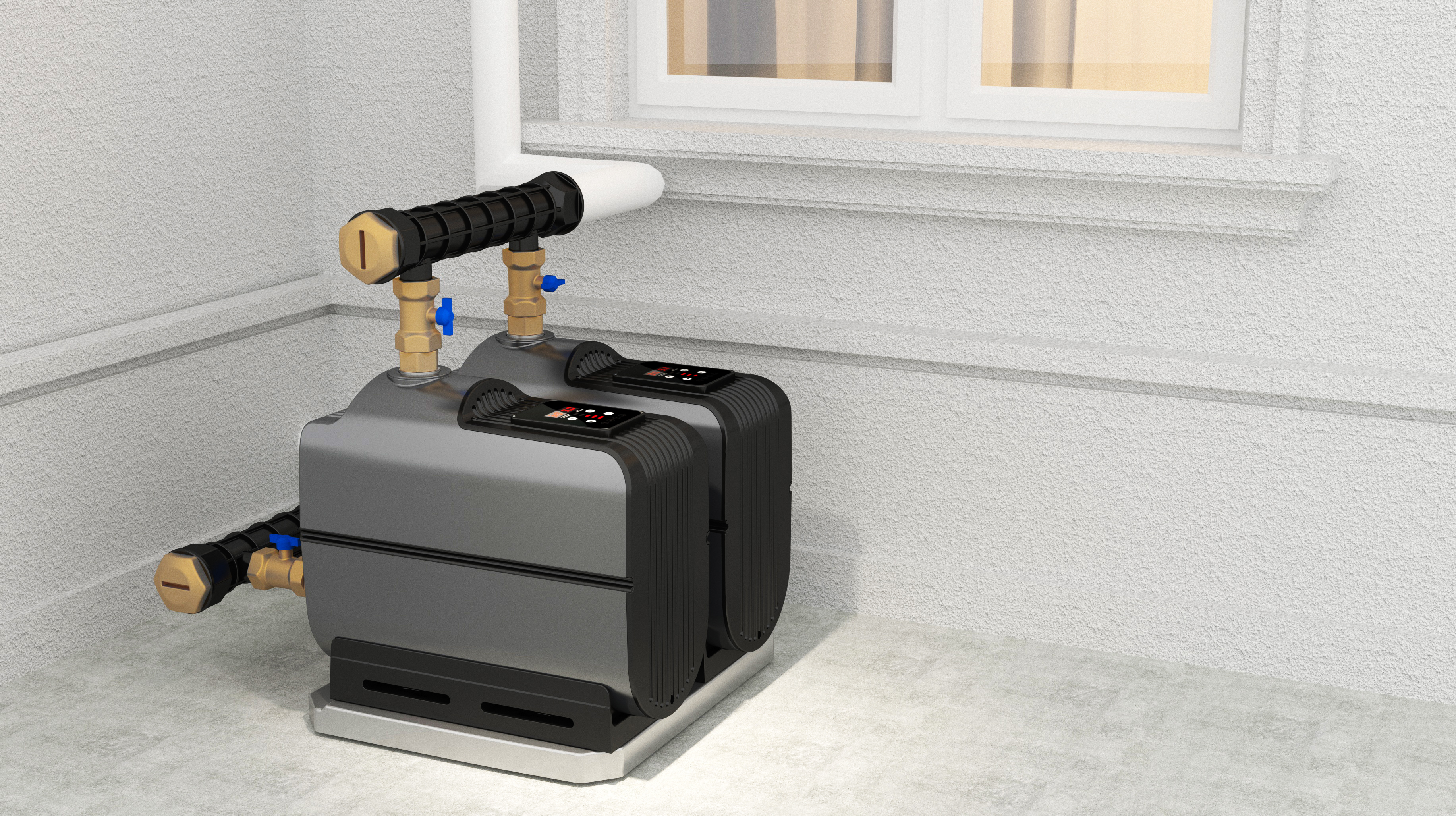

· Smart Multistage Booster Sets: Integrated skids with 2-6 pumps working in parallel. They automatically stage pumps (add or remove pumps) to maintain constant pressure regardless of variable flow.
· Smart Peristaltic/Diaphragm Pumps (Dosing): Used in water treatment. They use sensors to detect tube failure or low chemical levels, shutting down to prevent air binding .
Smart Pumps are revolutionizing industries where energy consumption and downtime are critical:
· Commercial HVAC (Heating/Cooling): In skyscrapers, they adjust flow to match the thermal load. During mild weather, they run at 30% speed, saving up to 80% of pump energy compared to fixed-speed systems .
· Pharmaceutical & Biotech: QuikSep bio-smart pumps provide low-shear transfer for sensitive proteins. They maintain constant pressure (not just flow) to protect chromatography columns from pressure spikes .
· Water & Wastewater: Smart sewage pumps monitor vibration and bearing temperature to predict blockages before they overflow. They alert operators via SMS .
· Irrigation & Agriculture: Integration with soil moisture sensors prevents overwatering. If rain is detected via API, the pump automatically shuts down .
Selecting the right Smart Pump requires moving beyond static curves to consider the "control window."
Step 1: Define the Duty Point
Calculate Hydraulic Power (kW) using the standard formula:
P_h = \frac{Q \times H \times \rho \times g}{3.6 \times 10^6}
Where: Q = Flow (m³/h), H = Head (meters), $ \rho $ = Density (kg/m³), g = Gravity (9.81 m/s⊃2;)
Step 2: Select the Control Mode
· Constant Pressure (CP): Best for open systems (irrigation, pressure boosting).
· Proportional Pressure (PP): Best for closed loops (chilled water). The setpoint drops as flow drops (square law).
· Constant Temperature/Flow: Best for process control.
Step 3: Evaluate Communication Requirements
· Standard: 4-20mA analog signal (works, but limited data).
· Smart: BACnet/IP or Modbus TCP. Recommendation: Demand digital communication to access energy logs and predictive maintenance data.
Installation:
· Avoid Pipe Stress: Do not use the pump body as a pipe support. Misalignment kills mechanical seals.
· Piping Configuration: Ensure 5-10 diameters of straight pipe before the suction inlet to avoid turbulence affecting the sensors.
· Electrical: Because the drive is integrated, ensure the supply voltage is stable. Use surge protection; the onboard electronics are sensitive to lightning strikes.
Maintenance:
· Keep it Clean: The primary failure mode for electronics is heat. Keep cooling fins and fans free of dust.
· Software Updates: Unlike dumb pumps, Smart Pumps have firmware. Check the manufacturer’s portal for updates to fix bugs or add features .
· Don't Oversize: A major advantage of Smart Pumps is that they "trim" themselves. However, selecting a pump too large forces it to run at the bottom of its RPM range, reducing motor cooling. Right-size for the middle of the curve.
Q1: Are Smart Pumps worth the higher upfront cost?
A: Absolutely. While the initial purchase price is 30-50% higher than a standard pump + VFD combo, the energy savings (typically 50-70%) and reduced maintenance offer a payback period of 6 to 24 months for most continuously running systems .
Q2: Do Smart Pumps require special programming?
A: No. Modern units feature "Auto-Adapt" wizards. You simply input your target pressure or temperature, and the pump performs a self-tuning routine to learn the system characteristics. It is designed for electricians and fitters, not just software engineers .
Q3: What happens if the "smart" electronics fail?
A: Most integrated units have a "Manual Bypass" or "Hand" mode. In an emergency, you can lock the motor at a fixed speed (e.g., 50Hz) to maintain critical processes until a replacement controller arrives.
Q4: Can I add IoT to my existing old pump to make it "Smart"?
A: To an extent. Adding external vibration sensors and power meters can provide monitoring, but you won't get the efficiency benefit of the permanent magnet motor or the precise adaptive control of an integrated unit. Retrofitting sensors is a "digital wrapper"; a true Smart Pump is "digital native."
Q5: How long do Smart Pumps last?
A: Because they run slower and softer (no "hammer" starts), they experience less mechanical stress. Expect a service life of 15-20 years, compared to 8-12 years for traditional pumps, provided the system water quality is clean .
The Smart Pump is not a passing trend; it is the standard for modern fluid management. By transforming from a dumb iron chunk into a connected, thinking asset, it offers a direct route to carbon neutrality, operational excellence, and total cost of ownership reduction. Whether upgrading a high-rise HVAC system or automating a pharmaceutical line, the question is no longer if you should use a Smart Pump, but which communication protocol you need.
Ready to cut your energy bills by 60%? Contact our engineers(Shanghai People Group Pump Co., Ltd.) for a free "Smart Retrofit" assessment of your current system.
