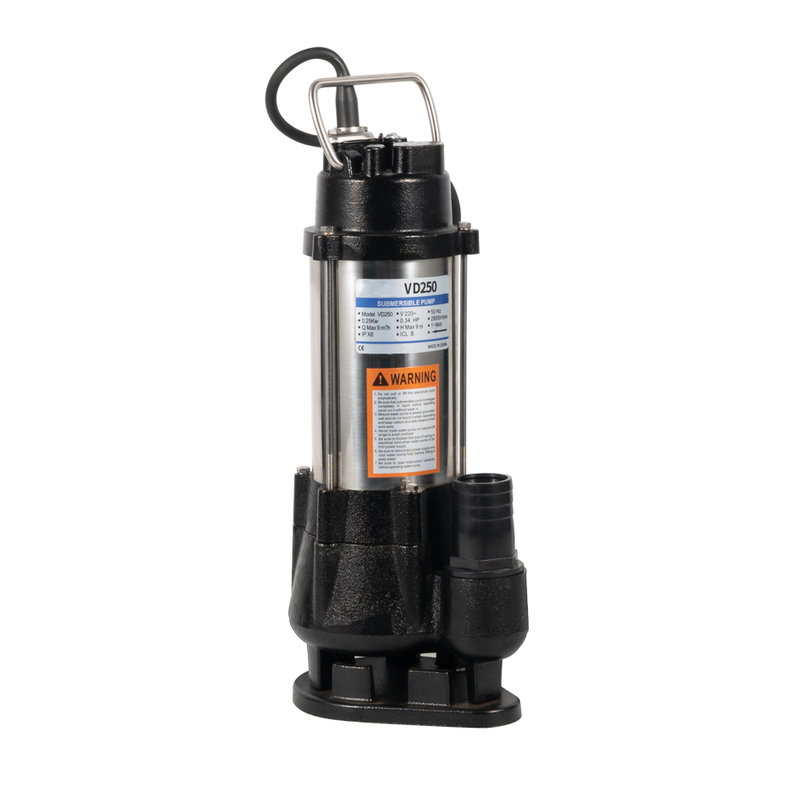

Submersible Sewage VD180F


HP:	0.25
Outlet:	1.25"
Max Flow:	8m³/h
Max Head:	8m
Color:	Default black, optional
Winding material:	Copper or aluminium
Material:	body is stainless steel，upper cap base is cast iron
Availability:

The V Series stainless steel submersible sewage pumps feature a sleek design and user-friendly operation, making them ideal for efficient drainage applications. The "V" designation represents the pump's unique hydraulic design, which delivers:
Wide high-efficiency range – Maintains optimal performance across varying conditions Full-head operation (non-overloading)

– Safe and stable operation under diverse working points
Superior solids handling – Large-flow-channel impeller passes 15–35mm solid particles and long fibers

With float switch: Automatic start/stop control based on liquid level

Model:
VD180F
Brand:
SRM

Product Description

FAQ

Key Features

Bottom suction design + stainless steel/special cast iron construction: Ensures complete drainage and corrosion resistance
With float switch: Automatic start/stop control based on liquid level
Thermal & overcurrent protection: Motor automatically shuts off under extreme conditions for enhanced safety
Robust performance: Reliable operation even in harsh environments

Operating conditions

Maximum fluid temperature up to+40℃.Maximum immersion:10m.

Motor and Pump

Rewindable motor

Three-phase:380V-415V/50Hz

Single-phase:220V-240V/50Hz

Equip with Floating switch as requirement

Options on requestSpecial mechanical seal

Other voltages or frequency 60 Hz

Model	Power		Capacity (m³/h)	Head (m)	speed (r/min)	Outlet (mm)
1~ 220V/240V	KW	HP	Capacity (m³/h)	Head (m)	speed (r/min)	Outlet (mm)
VD180F	0.18	0.25	8	8	2900	30
VD250F	0.25	0.34	9	9	2900	30
VD450F	0.45	0.6	17	12	2900	50
VD750F	0.75	1	24	15	2900	50
VD1100F	1.1	1.5	26	18	2900	50
VD1500F	1.5	2	24	30	2900	50
VD2200F	2.2	3	42	18	2900	75
With Knife
VD800DF	0.8	1	16	9	2900	50
VD1100DF	1.1	1.5	19	12	2900	50
VD1300DF	1.3	1.8	22	14	2900	50
VD1500DF	1.5	2	24	17	2900	50

Typical Applications

Industrial Wastewater – Chemical plants, paper mills, food processing
Marine & Offshore – Ballast water, bilge pumping
Municipal Sewage – Pump stations, stormwater drainage
Mining & Construction – Slurry transfer, tunnel dewatering

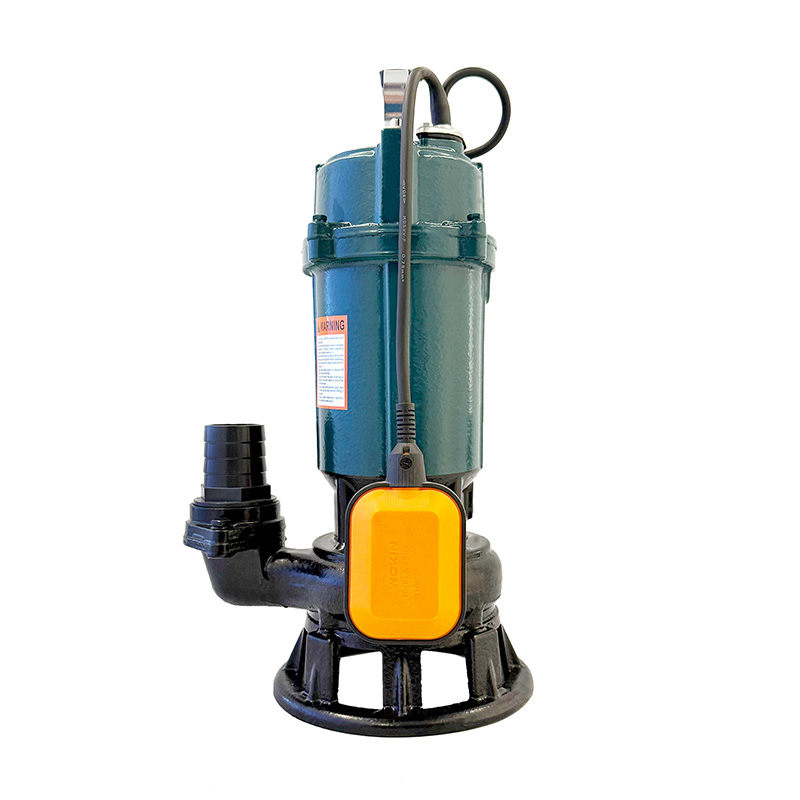

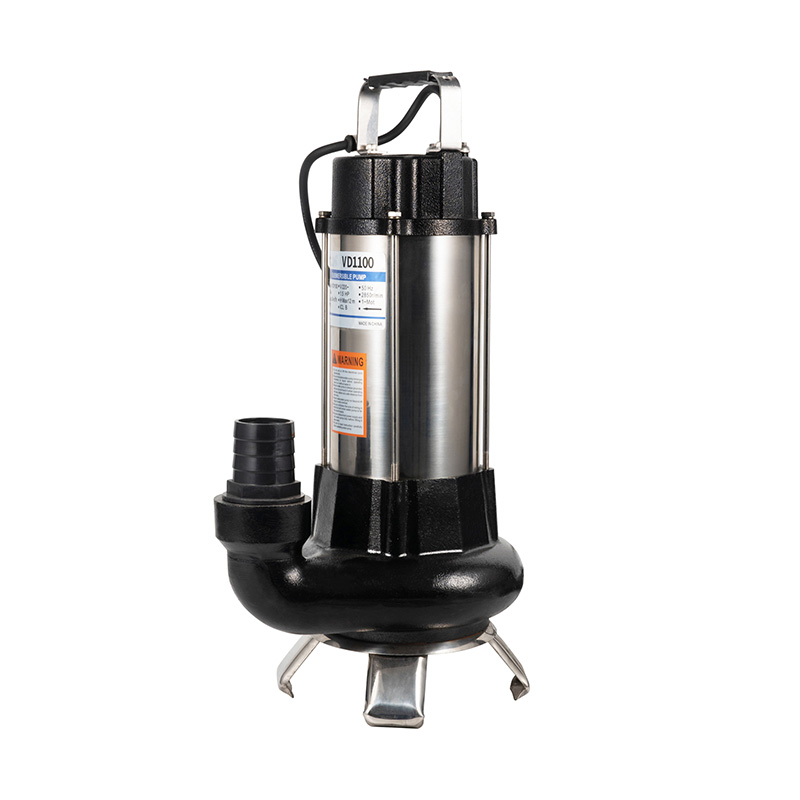

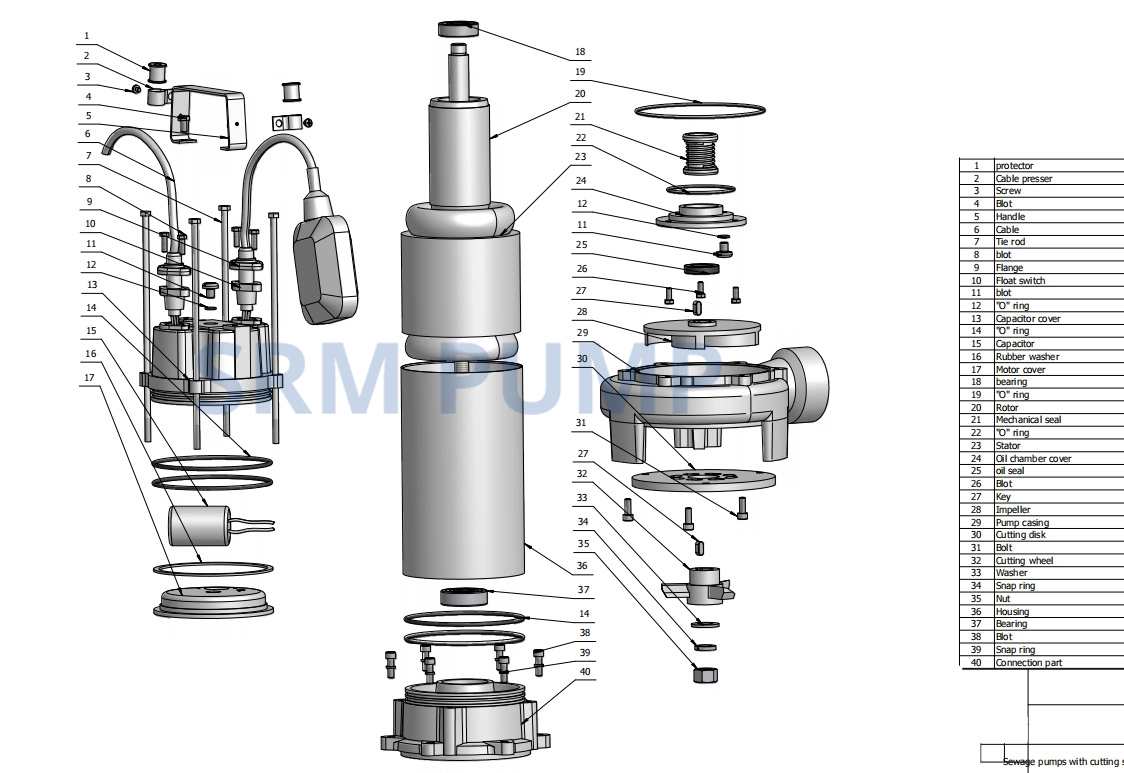

VD-series

FAQs

Why Choose V Series?

Efficient – Broad operating range with no overload risk
Durable – Corrosion-resistant materials for long service life
Smart – Auto-protection and optional remote monitoring
What Makes SRM Pumps Different?

With over 40 years of expertise in professional pump manufacturing, SRM Group—a Top 500 Enterprise in China—stands out for its:
Mature Production System – Rigorous quality control ensures reliable, high-performance pumps.
Customer-Centric Approach – We customize solutions to meet specific needs.
End-to-End Support – Beyond a 1-year warranty, we provide ongoing service assistance.
Choose SRM for durable, tailored pumping solutions backed by decades of industry leadership.
How to Purchase SRM Pumps?

Purchasing SRM pumps is simple:
Contact Us – Visit our website and reach out via:
Email Phone Social Media DM
(A dedicated representative will assist you promptly.)
Can I Use My Own Logo?

Custom Branding Option – We support OEM/ODM services and can produce pumps with your logo, provided you:
Own the trademark OR
Have authorization from the trademark owner.
